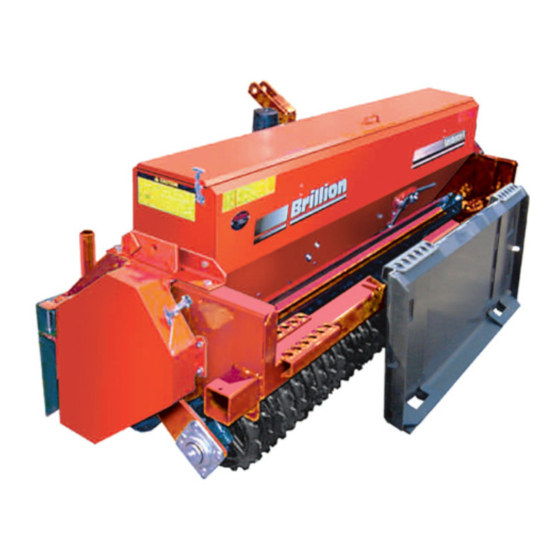

- Page 1 Landscape Grass Seeder Models LSP5, LSP6, and LSS6 Operator’s Manual LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM 102rev0313 7K458...
-
Page 3: Table Of Contents
Table of Contents Safety Information Introduction ..............1-1 Description of Unit . - Page 4 Assembly Of Optional Equipment Agitator Blades (Optional Cage or Brushes) ........3-1 Changing Agitator Kits .
-
Page 5: Safety Information
10 days of retail purchase, using the Landoll The Brillion LSS6 Skid Steer Landscape Seeder, new to Corporation Ag Products on-line registration process. -
Page 6: Understanding Safety Statements
SAFETY INFORMATION Understanding Safety Statements NOTICE Special notice - read and thoroughly understand. CAUTION Figure 1-1: ID Plate Proceed with caution. Failure to heed caution Federal law requires that you explain the safety and may cause injury to person or damage product. operating instructions furnished with this machine to all operators before they are allowed to operate the ... -
Page 7: Transporting Safety
SAFETY INFORMATION Maintenance Safety DANGER • Block the machine so it will not roll when working on or • Keep Riders Off of Machinery under it to prevent injury in case of hydraulic failure or Do not allow anyone to ride on tractor or inadvertent lowering by another person. -
Page 8: Safety Decals
SAFETY INFORMATION Safety Decals Figure 1-2: Decals 7K458... - Page 9 SAFETY INFORMATION Figure 1-3: Decal Locations...
- Page 10 SAFETY INFORMATION Table provided for general use. NOTES: 7K458...
-
Page 11: Operation
Chapter 2 Operation Landscape Seeder Operation DANGER The Brillion Landscaper Seeder is fully assembled from Always be sure the front of the tractor has the factory. This section refers to how to successfully enough weight to maintain control when the operate your machine. -
Page 12: Attaching To A Tractor
OPERATION Attaching to a Tractor • Replace klik pin. • Disconnect tractor. When hooking up seeders: • Attach tractor. On LSS6, skid steer models, there is a parking pin • Remove klik pin, pull parking pin into outer position, located on each side of the frame. In addition, a quick •... -
Page 13: Seed Rate Adjustment-Adjusting The Box Slide
OPERATION Seed Rate Adjustment-Adjusting the Box Slide When properly adjusted, with the control handle set at “6”. The holes in the slide should line up with the holes in the box, See Figure 2-3. To make an adjustment, loosen the control handle on the box, move the slide until the holes line up. -
Page 14: Calibration Of The Seed Box
OPERATION Calibration of the Seed Box Seed box may be calibrated for unlisted seeds as follows: See Figure 2-6. 1. Raise machine and lock in transport position. 2. Place a tarp under machine to collect seed. 3. Turn the 3/4 Hexagon Sprocket Shaft counterclockwise (CCW). -
Page 15: Doubling The Seed Rate
OPERATION Doubling the Seed Rate 2. Open chain at connector. 3. Remove 1/4” roll pin in 13- tooth sprocket and 3/4” Seed rates can be doubled by using the 26-tooth nut on 26-tooth sprocket. See Figure 2-9. sprocket and extra chain links included with the seeder. 4. -
Page 16: Acre Meter (Optional)
OPERATION Acre Meter (Optional) If you do not know the pulses per mile, press and hold the UP and DOWN buttons until the “0000” appears in the display. The “PULSES” LED will blink. The acre counter Settings for Loup Acre Meters is now counting shaft rotations. -
Page 17: Changing The Password
OPERATION Changing The Password 3. Press the function button to set password; screen will show “(set)”. Record number - it is required if you Select a new password using the UP and DOWN buttons. decide to disable password. Press the /FUNC button until the word “SEt”... - Page 18 OPERATION Table 2-1: Acre Meter Settings (After to 05/15/2012) MODEL PULSES WIDTH SSP T604 SSP4 SSP5 SSP6 SSP8 SSP10 SS10 10.0 SSP12 SS12 12.0 SSP108 SS108 SSP110 SS110 10.0 SSP112 SS112 12.0 SSP208 SSP2081 SS208 SS2081 SSP210 SSP2101 SS210 SS2101 10.0 SSP212 SSP2121...
- Page 19 OPERATION Table 2-2: Acre Meter Settings (Prior to 05/15/2012) MODEL Pulses Width SSP T604 SSP4 SSP5 SSP6 SSP8 SSP10 SS10 SSP12 SS12 SSP108 SS108 SSP110 SS110 SSP112 SS112 SSP208 SSP2081 SS208 SS2081 SSP210 SSP2101 SS210 SS2101 SSP212 SSP2121 SS212 SS2121 SSP308 SS308 SSP310...
-
Page 20: Adjustment Of Wheel Track Remover
OPERATION Adjustment of Wheel Track Remover The depth of the wheel track removers can be adjusted as shown. See Figure 2-10. Loosen the 1/2-13 x 1-1/4 bolts and nuts that secure the clamps to the coil tine supports. Adjust the supports up or down to the desired depth and then retighten the nuts on the bolts. -
Page 21: Assembly Of Optional Equipment
Chapter 3 Assembly Of Optional Equipment Agitator Blades (Optional Cage IMPORTANT or Brushes) Before proceeding with any agitator installation, be sure to note the direction of shaft rotation on your Agitator blades are supplied as standard on your seeder. See Figure 3-1. seedbox. - Page 22 ASSEMBLY OF OPTIONAL EQUIPMENT Figure 3-2: Agitator Blades 7K458...
-
Page 23: Lift Sling Kit (Optional)
ASSEMBLY OF OPTIONAL EQUIPMENT Lift Sling Kit (Optional) 1. Attach a mounting bracket to the left side of machine and a mounting bracket and strap to the right side of machine at the center holes of the right and left end ... -
Page 24: Acre Meter Kit 6K036 Installation
ASSEMBLY OF OPTIONAL EQUIPMENT Acre Meter Kit 6K036 Installation 3. Mount the acre meter onto this bracket with #10-24 x 1” machine screws, lockwashers and nuts. The Acre Meter Kit consists of four main parts; Acre 4. Run the wire from the bottom of the meter down the Meter Assembly, Pick-up Switch Bracket, Pick-up Switch, side of the seed box and along its left side. - Page 25 ASSEMBLY OF OPTIONAL EQUIPMENT Acre Meter Kit 6K036 Installation 7. Press or slide Magnet Wheel onto Drive Shaft until it is vertically centered with the Pick-up Switch. (continued) 8. Adjust the Pick-up Switch so the centerline of Magnet 5. At the rear of the seeder, mount the L-shaped Wheel and Pick-up Switch are horizontally and bracket to the end plate with a 5/8-11 x 1 1/2”...
- Page 26 ASSEMBLY OF OPTIONAL EQUIPMENT Page Intentionally Blank 7K458...
-
Page 27: Maintenance
Chapter 4 Maintenance General Torque Specifications This chart provides tightening torques for general purpose applications when special torques are not specified on process or drawing. Assembly torques apply to plated nuts and capscrews assembled without supplemental lubrication (as received condition). They do not apply if special graphite moly-disulfide or other extreme pressure lubricants are used. -
Page 28: Fasteners
MAINTENANCE Fasteners NOTE Before operating your Brillion machine, check all It is good machine maintenance practice to check all hardware for tightness. Use the Tightening Torque Table bolts for tightness during regular lubrications. Tighten any as a guide. fasteners that may have loosened during operation. NOTE After a few hours of use, check entire machine and tighten any loose nuts or bolts. -
Page 29: Chain Tension
MAINTENANCE Chain Tension Roller Wheels Adjust the chain between the front roller and transmission Occasionally it is necessary to loosen clamp bands and to have approximately 1/4” to 3/8” of slack. tighten roller wheel assemblies. As nearly as possible, To adjust the chain: peaks on rear wheels should line up with valleys on front 1. -
Page 30: Maintenance Chart
MAINTENANCE Maintenance Chart (Subject to change without notice) Initial Run - In 20 Hours Annually Storage Fasteners Lubricate Roller Chains Adjust Roller Chain Tension **Clean Machine Grease After Cleaning Touch-Up Paint ** Avoid spraying high pressure water directly at bearing seals and electrical components. -
Page 31: Specifications
Chapter 5 Specifications... - Page 32 SPECIFICATIONS Table provided for your general use with this manual. NOTES: 7K458...
- Page 33 Document Control Revision Log: Date Revision Improvement(s) Description and Comments 05/2008 102rev0508 Initial Release 10/2011 102rev1011 Updated, Incorporated Landoll Format 03/13/2013 102rev0313 Added New Acre Meter Data...
- Page 34 Equipment from Landoll Corporation is built to exacting standards ensured by ISO 9001 registration at all Landoll manufacturing facilities. Landscape Grass Seeder Models LSP5, LSP6 and LSS6 Operator’s Manual Re-Order Part Number 7K458 LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM...
