Hardware - SPALDING Arena Slam Rim Owner's Manual

hARdWARe used IN thIs sectIoN
#8 (4) 201611 #8 (4) 205528
#10 (4)
#8 (4) 203113
#8 (4) 203104
#11 (4)
4.

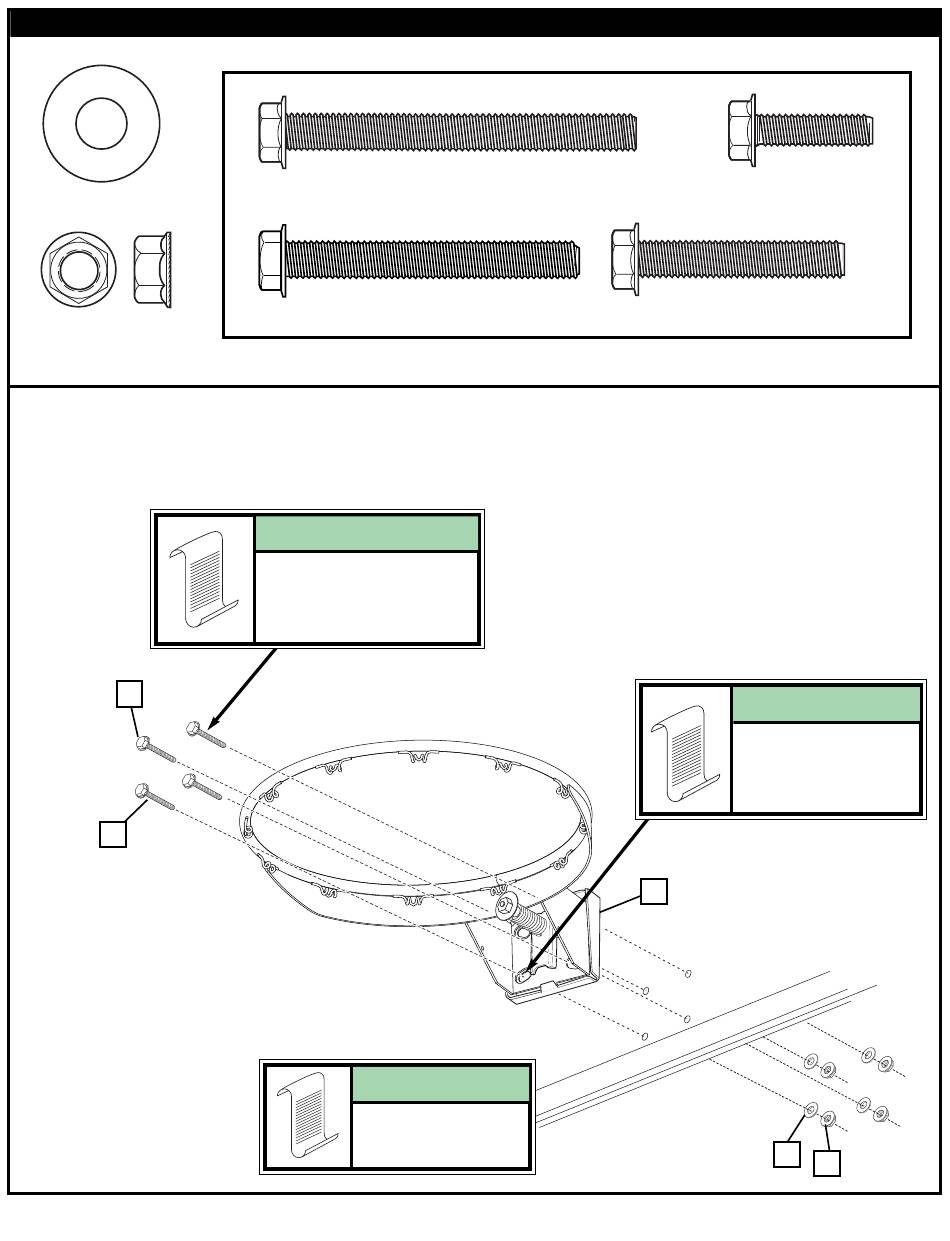

Connect rim to board using bolts (8) and passing though bracket (2) and board and
fastening with, washers (10) and nuts (11).
Note:
bolts (8) will vary depending
on what type of board the rim
is being attached to
(see hardware Identifier).
8
Note:
bolts (8) need to pass
through rim holes and
support only the goal
mount bracket (2).
8
2
Note:
board style will
vary.
10
11
8
