- Page 1 SURGICALL Y CLEAN AIR AIR PURIFIER JADE (SCA5000C) Operation Manual CONFORMS TO UL STD. 867 CERTIFIED TO CSA STD. C22.2 No. 187 5011884...
-
Page 2: Table Of Contents
TABLE OF CONTENTS HOW IT WORKS SAFETY PRECAUTIONS FEATURES AND SPECIFICATIONS PART NAME INSTALLATION OPERATING FEATURES 10-11 CARE AND MAINTENANCE 12-13 TROUBLESHOOTING... -
Page 3: How It Works
HOW IT WORKS When the DC fan motor is running, the indoor air will be drawn through the bottom of the unit. The air will then pass through the HEPA-Rx Filter, the Activated Carbon Filter and the Germicidal UV-C+ Photocatalytic Nano-TiO chamber. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Be sure to follow all precautions below: Running Environment Cautions • Use only a 120-volt outlet with grounding wire receptacle. • Do not put it in rooms with high heat, damp or wet places. • Best working condition is 10-40 •... -
Page 5: Features And Specifications
The JADE can be operated completely with the wave of your hand, making it suitable in medical settings to avoid cross contamination. The JADE is also equipped with a safety interlock switch that will turn the power off if the bottom plate is opened. -
Page 6: Part Name
PART NAME 2-Air Outlet 3-DC Fan Motor 4-Fan Blade 5-Ion Generator 6-Display Circuit 15-Activated Carbon Filter Board 14-HEPA-Rx Filter 7-Display Panel 16-Germicidal 8-Particle Laser UV-C+ Lamp Sensor 9-Gas Sensor 17-Photo Catalyst Reactivity Chamber 13-Unit Lock 12-UV Lamp Set 1-Unit Housing 11-Bottom Plate 10-Unit Body... -
Page 7: Installation
INSTALLATION Prior to using unit for the first time, you must remove the plastic bag from the HEPA-Rx Filter inside the unit. 1. Turn unit upside down - put towel or any soft pad on the ground to avoid damage to the unit when you turn it upside down. - Page 8 4. Once plastic bag is removed, put unit back together. 5. Put the HEPA-Rx Filter and Activated Carbon Filter back into unit. Align letter A with the letter A, turn the unit lock clockwise until the letter A is aligned with the letter C. (See pic.1) 6.
-
Page 9: Operating Features
OPERATION FEATURES Plug the power cord in and you will hear a “Beep”. The small, inner circle will turn green - this indicates the air purifier is in standby mode. Use your hand to wave over the sensor, this waving motion turns the unit on &... - Page 10 OPERATION FEATURES PM2.5=63μg/m³ Air quality 1. Touch POWER button 2. Touch UV button 3. Touch LIGHT button 4. Different colors indicate the air quality 1. POWER Button Touch the POWER button to start the unit, the unit will run at low speed and the screen displays PM2.5 concentration (μg/m³) on the screen, re-touch it to stop.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE To maintain optimum performance of this air purifier, the HEPA-Rx Filter, the Activated Carbon Filter and the Germicidal UV-C+ Bulb need to be replaced when the indicator lights are flashing. If in an atmosphere with heavy dust, particulate or pet dander, you may need to periodically vacuum the filters for optimal performance. This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. - Page 12 CARE AND MAINTENANCE - continued When the “POWER” indicator light flashes, the HEPA-Rx filter needs to be replaced. When the “LIGHT” indicator light flashes, the Activated Carbon Filter needs to be replaced. When the “UV” indicator light flashes, it is time to replace the Germicidal UV-C+ bulb. Replacing the HEPA-Rx filter When the “POWER”...
-
Page 13: Troubleshooting
Germicidal UV-C+ Bulbs should only be purchased from Surgically Clean Air or an authorized dealer at Surgically Clean Air. This will ensure that you are receiving UV bulbs that do not produce ozone. Many after-market sellers are selling ozone-generating UV bulbs. - Page 14 SURGICALL Y CLEAN AIR 1A - 6300 Viscount Road Mississauga, Ontario Canada, L4V 1H3 Tel: 1-877-440-7770 www.surgicallycleanair.com info@surgicallycleanair.com...
Need help?
Do you have a question about the JADE and is the answer not in the manual?
Questions and answers

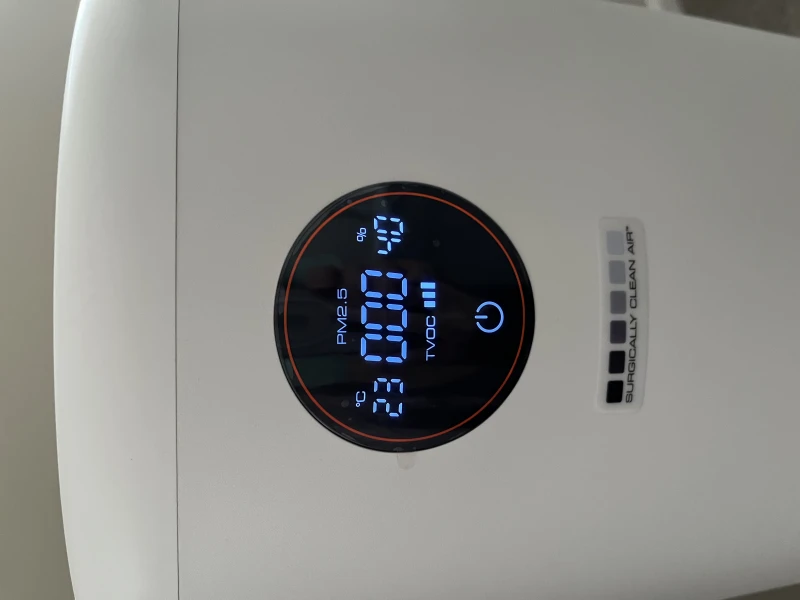

Why does it sometimes turn red even though air quality shows 000?
