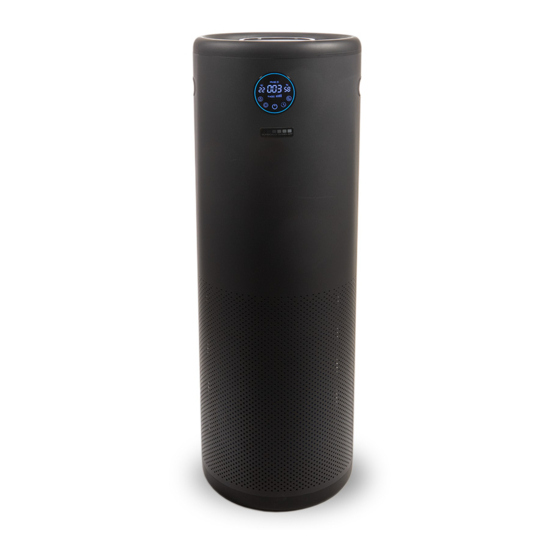

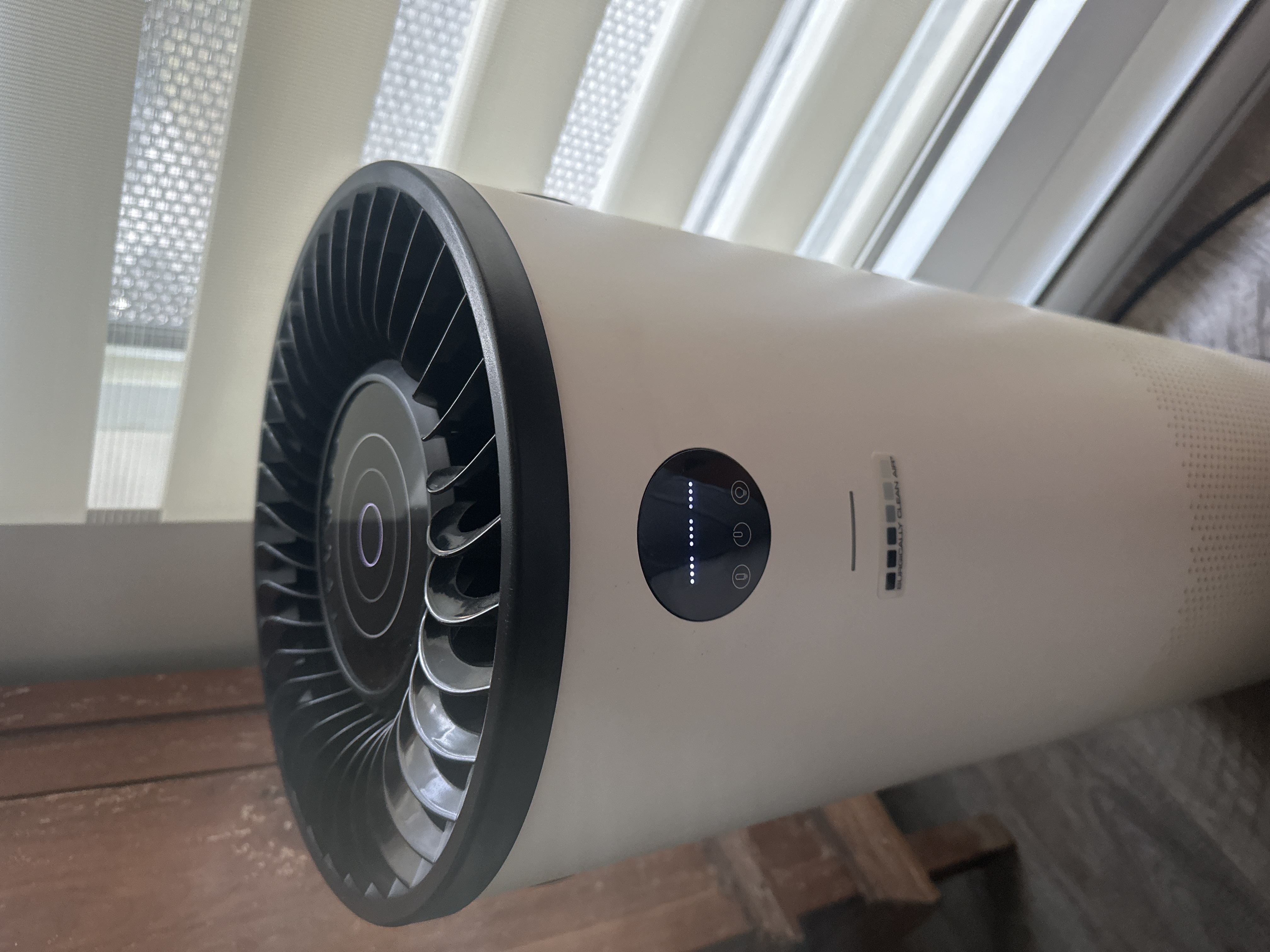

- Page 1 SURGICALL Y CLEAN AIR JADE2.0 (SCA5100C) OPERATION MANUAL Read the manual thoroughly before operation and retain for future reference. EPA Establishment# E520581 100231CHN001...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS HOW IT WORKS FEATURES AND SPECIFICATIONS PART NAME INSTALLATION 10-12 OPERATION 13-14 CARE AND MAINTENANCE TROUBLESHOOTING... -
Page 3: Safety Precautions 1
SAFETY PRECAUTIONS 1 WARNING Be sure to follow all precautions below: The internal UV-C lamp contains a small amount of mercury which is contained inside the lamp unless broken. Mercury and mercury compounds are known to Running Environment Cautions the State of California to cause cancer and birth defects or other reproductive harm. - Page 4 The JADE2.0 Air Purifier is intended to capture particles and microorganisms from the air. UTILISATION PREVUE Le purificateur d'air JADE2.0 est destine a capturer les particules et les micro-organismes de l'air. DIRECTIONS FOR USE Plug the power cord in and you will hear a "Beep". The smallinner circle will turn blue this indicates the air purifier is in standby mode.
- Page 5 SAFETY PRECAUTIONS 3 WARNING - The internal UV-C+ lamp contains a small amount of mercury which is contained inside the lamp unless broken. Mercury and mercury compounds are known to the State of California to cause birth defects or other reproductive harm.
-
Page 6: How It Works
HOW IT WORKS When the DC fan motor is running, the indoor air will be drawn through the bottom of the unit. The air will then pass through the HEPA-Rx Filter, the Activated Carbon Filter, the UV-C+ and Photocatalytic Nano-TiO2 filter. The purified air is then released through the outlet on the top of the unit. -
Page 7: Features And Specifications
Super Oxidizing Photocatalytic Nano-TiO2 system (capturing VOC's and airborne pathogens) and two Revitalizing Negative Ion generators. Touch-free hand gesture operation The JADE2.0 can be operated completely with the wave of your hand, making it suitable in medical settings to avoid cross contamination. Filters and UV-C+ Lamp Replacement Indicator Lights The indicator lights tell you when to replace the HEPA-Rx filter, the Activated carbon filter or the UV-C+ lamp. -
Page 8: Part Name
PART NAME 01- Unit body 9- Particle laser sensor 02- Unit housing 10- HEPA-Rx filter 03- Air outlet 11- Activated carbon filter 04- Fan motor 12- UV-C+ lamp 05- Fan blade 13- Photocatalytic filter 06- Ion generator 14- Unit lock 07- LED display 15- UV-C+ lamp set circuit board... -
Page 9: Installation
INSTALLATION 1. Power supply condition: Use only a 120-volt outlet with grounding wire receptacle. 2. Operational conditions: Temperature: 0℃~ 40℃; Relative humidity: <75%. 3. The unit should be installed in an indoor area. Before operation Prior to using unit for the first time, you must remove the plastic bag from the HEPA-Rx filter inside the unit. 1. -
Page 10: Operation 1
OPERATION 1 Plug the power cord in and you will hear a “Beep”. The small, inner circle will turn blue - this indicates the air purifier is in standby mode. Use your hand to wave over the sensor, this waving motion turns the unit on & off, and can also adjust the fan speed. - Page 11 OPERATION 2 1 POWER Button When the unit is plugged into an electrical outlet, the display panel shows Button Operation the indoor PM2.5 concentration (μg/m³), temperature and humidity. Press the button, turns the unit On and Off. Hold the button for 3 seconds to reset the filters indicator light. 2 TIMER Button PM2.5 Press this button to select the time for operation.
- Page 12 OPERATION 3 Remote Control Operation 1 Power (ON/OFF) Button The unit will start operating when the POWER button is pressed. Pressing the button again will stop operation. 2 SPEED Button The fan speed can be switched among L- M- H- Turbo- AUTO settings. TIME 3 LOCK Button When pressed, all the operation will lock at the desired speed except...
-
Page 13: Care And Maintenance 1
CARE AND MAINTENANCE 1 To maintain optimum performance of this air purifier, the HEPA-Rx Filter, the Activated carbon filter and the UV-C+ lamp need to be replaced when the indicator lights are flashing. If the device is operating in an atmosphere with heavy dust, particulate or pet dander, you may need to periodically vacuum the pre filters for optimal performance. - Page 14 CARE AND MAINTENANCE 2 Replacing the Activated Carbon Filter When the second circle on the sensor plate flashes, the Activated carbon filter needs to be replaced. 1. Stop the operation and unplug the unit. 2. Open the bottom plate, disconnect the power cord from UV-C+ lamp, take off the unit lock. 3.
-
Page 15: Troubleshooting
UV-C+ Bulbs should only be purchased from Surgically Clean Air or an authorized dealer at Surgically Clean Air. This will ensure that you are receiving UV-C+ bulbs that do not generate ozone. Many after-market sellers are selling ozone-generating UV-C+ bulbs. - Page 16 SURGICALL Y CLEAN AIR 1A - 6300 Viscount Road Mississauga, Ontario Canada, L4V 1H3 Tel: 1-877-440-7770 www.surgicallycleanair.com info@surgicallycleanair.com...
