AtomikAir (SCA9000)

SCA9000B480V

SCA9000A600V

OPERATION MANUAL

Read the manual thoroughly before

operation and retain for future reference.

REV SCA9000-1.1

Table of Contents

Need help?

Do you have a question about the AtomikAir and is the answer not in the manual?

Questions and answers

Summary of Contents for Surgically Clean Air AtomikAir

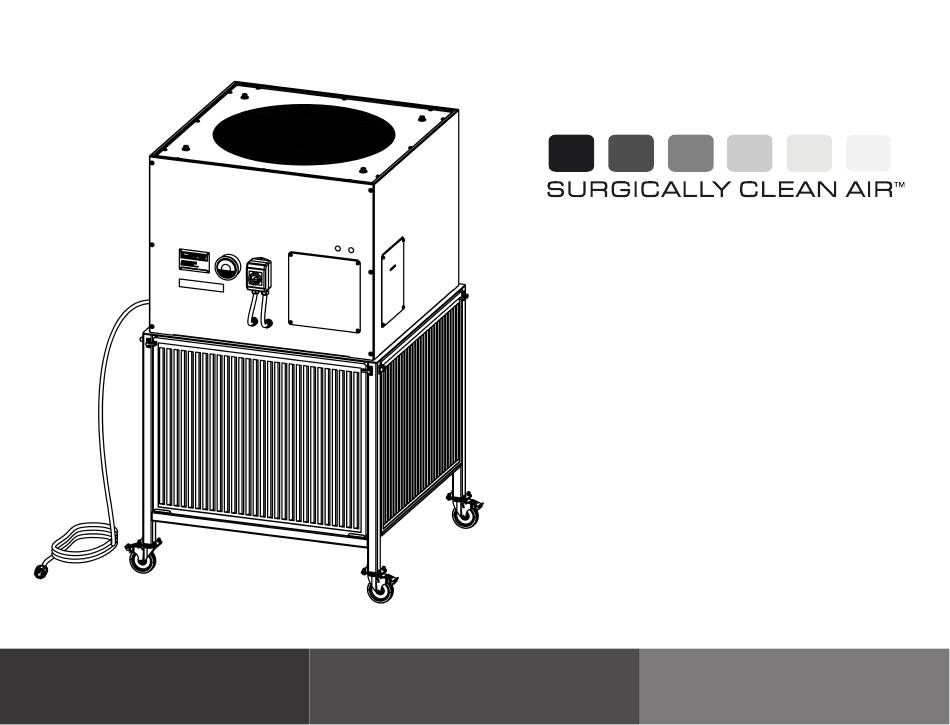

Page 1 AtomikAir (SCA9000) SCA9000B480V SCA9000A600V OPERATION MANUAL Read the manual thoroughly before operation and retain for future reference. REV SCA9000-1.1...
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS ----------------------------------------------------------------------------- 3 FEATURES----------------------------------------------------------------------------------------------- 6 SPECIFICATIONS--------------------------------------------------------------------------------------- 7 PART IDENTIFICATION ----------------------------------------------------------------------------- 10 INSTALLATION ---------------------------------------------------------------------------------------- 11 OPERATION -------------------------------------------------------------------------------------------- 14 CARE & MAINTENANCE ---------------------------------------------------------------------------- 16 TROUBLESHOOTING ------------------------------------------------------------------------------- 21...
Page 3: Safety Precautions
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS OBSERVE THE FOLLOWING: AtomikAir products are produced in accordance with the latest technical standards ensuring that the final product is of a high quality and durability. Nevertheless, these products can be dangerous if they are not used and installed correctly, according to the instructions.
Page 4 SAFETY PRECAUTIONS RUNNING ENVIRONMENT CAUTIONS • Equipment is for indoor use only, do NOT use outdoors. • Do NOT use in explosive atmosphere or with combustible or flammable gases, dust, and substances. • Do NOT locate equipment in areas of high heat, excessively damp or wet places, such as walk-in ovens, shower rooms, or next to direct hot steam/exhaust.
Page 5 SAFETY PRECAUTIONS UNIT OPERATION CAUTIONS • Do NOT operate equipment without all guards, access panels, and covers installed and securely fastened. • Do NOT operate equipment without all casters in locked positions. • Do NOT operate the equipment if the power cord or plug is damaged or the connection to the outlet is loose. •...
Page 6: Features
FEATURES INDUSTRIAL AIR PURIFIER AND DE-STRATIFICATION SYSTEM HIGH VOLUME AIR OUTPUT WITH VARIABLE SPEED SETTINGS Discharges clean air upward, circulating up to 15000 CFM Destratification of air (equalizes the temperature between floor and ceiling) Creates convection patterns for warm air recirculation Adjustable fan speed, can operate continuously at variable speeds, accommodating different space needs HIGH FILTRATION CAPACITY Five large filters per machine, effectively cleans and purifies air at high volume by removing particulates...
Page 7: Specifications
SPECIFICATIONS GENERAL SPECIFICATIONS MODEL NUMBER SCA9000B480V SCA9000A600V 3~380-480VAC, 5.4A, 50/60 Hz 3~600VAC, 5.4 A, 60 Hz DIMENSIONS (LxWxD) 53 x 50 x 86 in 655 lbs (Without Filters) WEIGHT 720 lbs (Total) 14-gauge steel housing, Easy roll lockable casters (heavy duty), Baked on powder CONSTRUCTION coat finish (durable with no off-gassing) 15000 CFM...
Page 8 SPECIFICATIONS NAMEPLATE INFORMATION Model Number System Technical Ratings Data Fan Motor Power Rating Date of Manufacture Serial Number Product Name Max Sound Level Field Certification (* Labels will vary based on certifying organizations) Manufacturer Contact Details...
Page 9 SPECIFICATIONS NOMINAL DIMENSIONS...
Page 10: Part Identification
PART IDENTIFICATION COMPONENTS OVERVIEW...
Page 11: Installation
INSTALLATION READ THROUGH THIS MANUAL IN ITS ENTIRETY BEFORE INSTALLING AND OPERATING THE EQUIPMENT. SYSTEM PLACEMENT • Observe all safety precautions as detailed in the Safety Precautions section of this manual. • Ideal operating condition is 0ºC- 40ºC ambient room temperature •...
Page 12 INSTALLATION EQUIPMENT ELECTRICAL CONNECTIONS Power supply connections to be made according to the table below: MODEL NUMBER SCA9000B480V SCA9000A600V POWER PLUG TYPE Locking NEMA L16-30P Locking NEMA L17-30P POWER PLUG WIRING SCHEMATIC (3~480 VAC, 30 A) (3~600 VAC, 30 A) POWER CORD 16 ft 16 ft...
Page 13 INSTALLATION EQUIPMENT MODBUS CONNECTIONS • Modbus terminal strip connections are provided inside the unit and pre-wired to the fan. The terminal strip is accessible by unscrewing and removing the side access panel; inside the unit the terminal strip is mounted to the side of the electrical control box.
Page 14: Operation
OPERATION PRIOR TO INITIAL OPERATION Prior to startup you must: • Ensure all electrical connections and installation is properly completed. Ensure all guards, access panels, and covers are installed and securely fastened. • • Ensure all casters are in locked position. Ensure all filters are installed.
Page 15 OPERATION SUGGESTED FILTER CLEANING (SPEED/PRESSURE) CHART SPEED LEVEL 100% PREASURE GAUGE >0.4 >0.55 >0.6 >0.9 (Inch-H2O) FAN SPEED The internal fan can operate continuously at variable speed setpoints from 0-100% and has a controller located inside the electrical control box. Some setpoints and their corresponding airflows are provided in the table below. It is recommended to adjust fan speed occasionally if needed.
Page 16: Care & Maintenance
CARE AND MAINTENANCE PRIOR TO ANY MAINTENANCE OR SERVICING Before performing any maintenance, service, or opening of panels, all safety measures and precautions within this manual must be followed. WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: •...
Page 17 CARE AND MAINTENANCE REGULAR CLEANING OF YOUR WASHABLE/RE-USEABLE FILTERS: Remove all 5 filters, take note of the front outer facing (dirty) side of each filter as you remove it from the equipment. Turn the latches on the sides of the unit to release the filter and lift out. Similarly turn the latches on the bottom filter then lift and slide out.
Page 18 CARE AND MAINTENANCE Perform a visual check to evaluate the impeller condition for signs of corrosion, abrasion, damage or dust and debris buildup. If dust and debris buildup is prominent the fan impeller should be cleaned. - Never use high pressure cleaning equipment or steam cleaners - Do not use acid, lye, or solvent based cleaners.
Page 19 CARE AND MAINTENANCE REPLACE FUSES i. The fuse holder is located inside the lower compartment of the electrical control box. ii. After the front access panel is removed, a secondary fuse cover plate must be unscrewed and removed to expose the fuse holder. iii.
Page 20 CARE AND MAINTENANCE MODBUS CONNECTIONS Unscrew and remove the side access panel adjacent to the electrical disconnect switch The Modbus terminal strip connections are located inside the unit on the side of the electrical box When adjustments are complete reattach the access panel and securely fasten.
Page 21: Troubleshooting
TROUBLESHOOTING Follow all safety precautions in this manual and the Prior To Any Maintenance and Servicing instructions in the Care and Maintenance section of before performing any actions. ISSUE POSSIBLE CAUSE ACTION Pressure gauge Dirty filters Clean filters, refer to Care and Maintenance section. indicator is over 1 in H O or...
Page 22 TROUBLESHOOTING Fan stops Fan electrical fault Power off the unit for at least 2 minutes and restart. If operation rotating while does not return to normal contact our service center. powered on Fan overheated Power off the unit for at least 2 minutes. Inspect filters and clean if thick visible layer of buildup is present.
Page 23 1A - 6300 Viscount Road Mississauga, Ontario Canada, L4V 1H3 Tel: 1-877-440-7770 www.surgicallycleanair.com info@surgicallycleanair.com...
