WARNING:
• Before operating the system, please read
this manual thoroughly, and retain it for
future reference.
• This unit cannot be used in an atmosphere
containing explosive dust, gas or oxygen, or
in an area where flammable dust is present.
• This product can be used only where the
power supply is 120V/60Hz. You cannot use
the unit if the power voltage is different.
SURGICALL Y CLEAN AIR
AIR PURIFIER
OPERATIONAL MANUAL

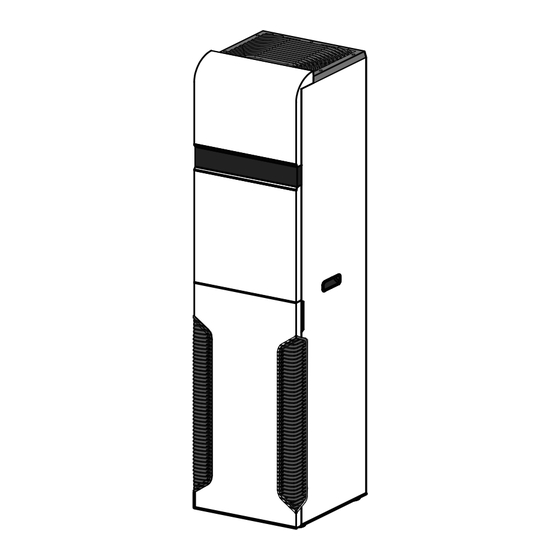

Model No. SCA7000H
SURGICALLY CLEAN AIR
6300 Viscount Road Unit 1A
Mississauga Ontario Canada L4V 1H3
www.surgicallycleanair.com
info@surgicallycleanair.com
TM
Advertisement
Table of Contents
Related Manuals for Surgically Clean Air SCA7000H
Summary of Contents for Surgically Clean Air SCA7000H

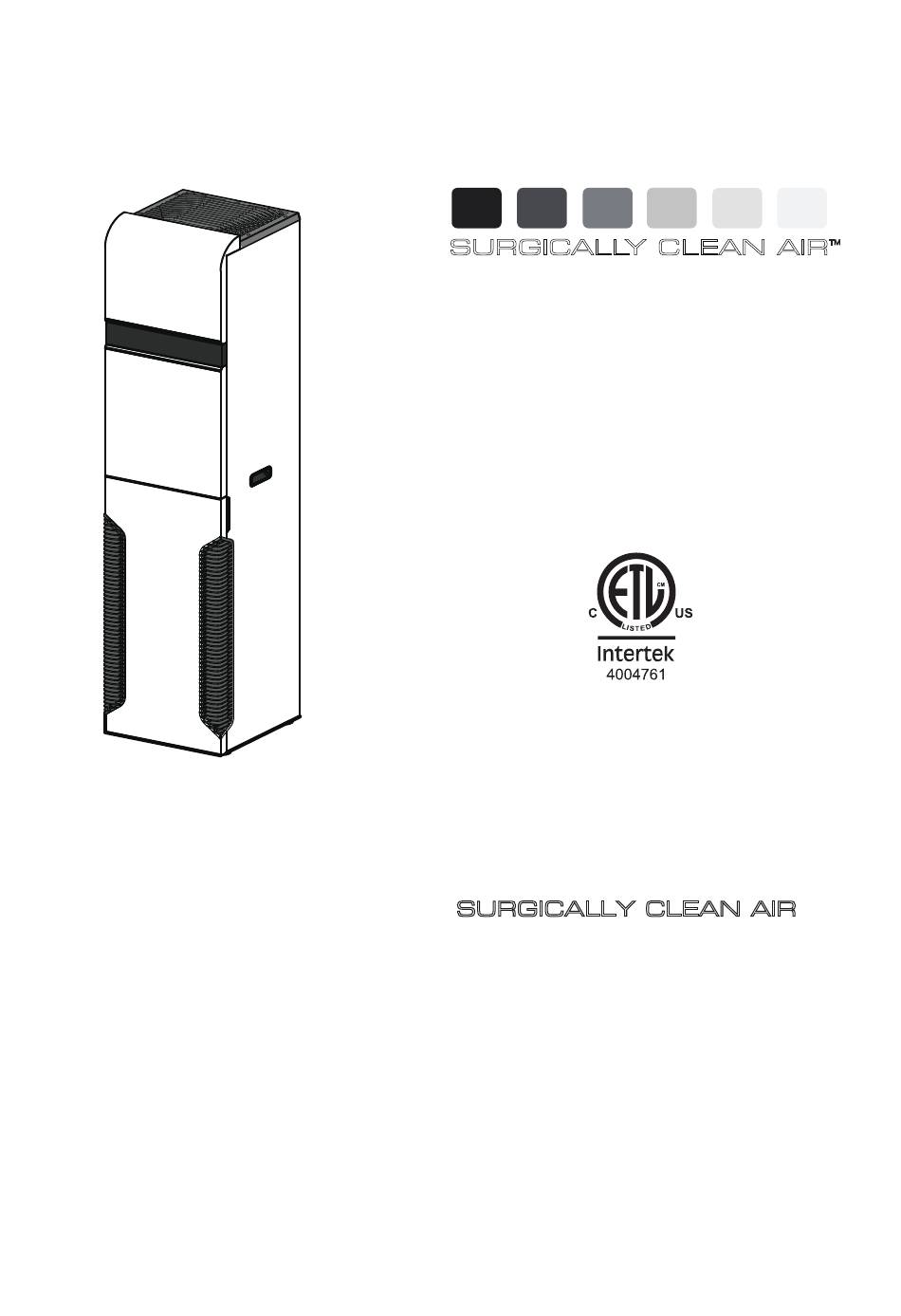

- Page 1 SURGICALL Y CLEAN AIR AIR PURIFIER OPERATIONAL MANUAL Model No. SCA7000H SURGICALLY CLEAN AIR 6300 Viscount Road Unit 1A Mississauga Ontario Canada L4V 1H3 WARNING: www.surgicallycleanair.com info@surgicallycleanair.com • Before operating the system, please read this manual thoroughly, and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS CONSUMER LIMITED WARRANTY Chapter 1 IMPORTANT SAFETY RECAUTIONS E-5~7 Chapter 2 HOW IT WORKS Chapter 3 PART NUMBER AND NAME Chapter 4 FEATURES AND SPECIFICATIONS E-10 Features Product Specifications Chapter 5 OPERATION E-11~13 Button Operation E-11 E-12 Display Indicator Lights Remote Control Operation E-13 Chapter 6... -
Page 3: Consumer Limited Warranty
CONSUMER LIMITED WARRANTY Congratulations on your investment Surgically Clean Air (Hereinafter called SCA) gives you the following limited warranty for this product only if it was originally purchased from SCA or from an authorized dealer. SCA warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. -
Page 4: Important Safety Recautions
Chapter 1 Running Environment Cautions • Use only a 120-volt outlet with grounding wire receptacle. IMPORTANT SAFETY • Do not put in rooms with high heat, damp or wet places. PRECAUTIONS • Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose. - Page 5 Chapter 1 This manual classifies precautions into WARNINGS and CAUTIONS. Be sure to follow all precautions below: They are important for ensuring your safety. IMPORTANT SAFETY PRECAUTIONS 1. DO NOT clean the unit or any parts with alcohol, gasoline, paint thinner or other flammable WARNING substances.
- Page 6 Chapter 1 IMPORTANT SAFETY PRECAUTIONS 4. Do not use the unit in humid places that might be wet. If any parts of the WARNING power source gets wet If you do not follow these remove the plug and dry it instructions exactly, the completely before reusing.
-
Page 7: How It Works
Chapter 2 The air purifier functions as an air cleaner by helping to disinfect airborne microorganisms and removing particulates from the air. The centrifugal fans of the unit draw air through the front panel (Intake) HOW IT WORKS on the front of the unit. Then it passes through the Pre-filter, the HEPA filter, the VOC filter and the UV-Photo catalytic sterilization chamber. -
Page 8: Part Number And Name
Chapter 3 PART NUMBER AND NAME 121301 111513 PART NUMBER 131506 131003 121503 111505 111502 120214 131501 111526 130006 111525 131502 111503 131503 111519 111322 111518 130109 131313 111501 181102 130007 121302 111529 181503 181502 111521 181501 111304 111304 Front panel 111513 Fan motor front plate 121302 Front air inlet 131504 Sensors module... -
Page 9: Features And Specifications
When the filters need to be replaced, simply open the front panel and pull out the filters and put the new one in. No screws, hooks or tools are required. SPECIFICATIONS Product Model No. SCA7000H Specifications Power Requirement a.c120V, 60Hz, 2.5A Rated Power 210W Negative Ion >3x10... -
Page 10: Operation
Chapter 5 BUTTONS OPERATION Button Operation . POWER Button • Turns the purifier On and Off. • Hold the Power button for 2 seconds, the “ ”ndicator light will light up with beeping. In this mode, the panel is locked.If you want to return to the default mode, do the reverse. -
Page 11: Display Indicator Lights
Connect the Power Chapter 5 Plug the unit into an electric outlet, the unit will be ready to run and the Power indicator on the display panel will light up. OPERATION Display Indicator Lights SPEED indicator light When the power is on, the “ L ” light will light up, select the speed by pressing the SPEED button. -
Page 12: Remote Control Operation
Chapter 5 The battery is already set in the remote control, pull out the clear sheet from the battery cover before using. OPERATION Remote Control Operation POWER RESET SPEED TIMER UV LMAP NEG.ION POWER RESET SPEED TIMER AUTO NIGHT UV LMAP NEG.ION AUTO NIGHT... -
Page 13: Care And Maintenance
Chapter 6 To maintain optimum performance of this air purifier, the Pre-filter, the HEPA filter, the VOC filter and the UV-C+ bulb need to be replaced when the indicator lights are flashing. When replace the filters, be sure to CARE AND MAINTENANCE unplug the power cord, and never handle the plug with wet hands. -
Page 14: Replacing The Hepa Filter
Chapter 6 Replacing the HEPA filter When the “ ” indicator light on the control panel flash, the HEPA filter CARE AND MAINTENANCE needs to be replaced. Remove the HEPA filter WARNING： Stop the operation and unplug the unit. • DO NOT clean the HEPA filter with alcohol, gasoline, paint thinner or other flammable 6-3 Hold the handle of the HEPA filter,... -
Page 15: Replacing Uv Lamp
Chapter 6 Replacing UV Lamp When the “ ” indicator light on the control panel flashes, it is time to CARE AND MAINTENANCE replace the UV lamps. Removing the UV lamp Before removing the UV lamps, open the front panel and take the Pre-filter, the HPEA filter and the VOC filter first. -
Page 16: Trouble Shooting
Service to ask for after-sale service or make inquiries. Germicidal UV-C+ Bulbs should only be purchased from Surgically Clean Air or an authorized dealer at Surgically Clean Air. This will ensure that you are receiving UV bulbs that do not produce ozone. Many after-market sellers are selling ozone-generating UV bulbs. -
Page 17: Wiring Diagram
Chapter 8 WIRING DIAGRAM Sensors Module DISPLAY CIRCUIT BOARD CN_ION Negative ion generator CN_err CN_IN2 CN_C Red(+) Black(-) Grey Bule MAIN CIRCUIT BOARD Orange White PM2.5 Display Board Yellow CN_EF Fan motor CN_UV CN_AC CN_FAN White Interlock switch AC110V/60Hz Fuse Black White White... - Page 18 SERVICE REMINDER SCHEDULE Pre-filter Replace Reminder Year Memo: HEPA Filter Replace Reminder Year Memo: E-19...
- Page 19 SURGICALL Y CLEAN AIR 6300 Viscount Road Unit 1A Mississauga Ontario Canada L4V 1H3 Tel: 1-877-440-7770 www.surgicallycleanair.com info@surgicallycleanair.com SCA reserves the right to revise or modify products and/or specifications without notice. The contents of this manual are subject to change without notice. 7000H1910V1...
