Summary of Contents for Surgically Clean Air ONYXsca
-
Page 1: Safety Precautions

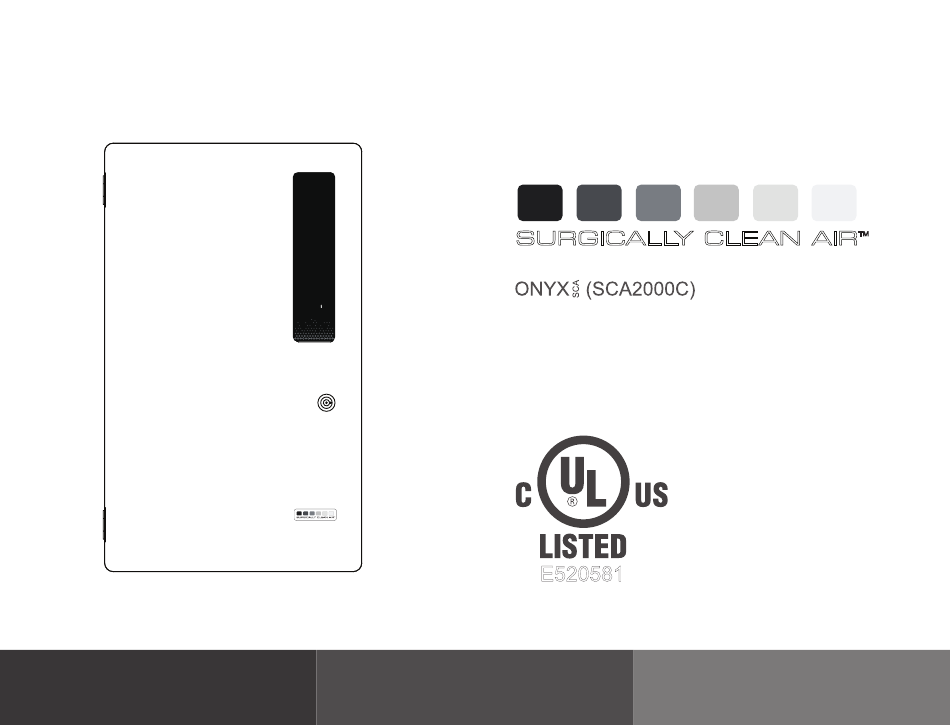

SURGICALL Y CLEAN AIR ONYX AIR PURIFIER OPERATION MANUAL Read the manual thoroughly before operation and retain for future us. E520581... -
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS 1 SAFETY PRECAUTIONS 2 HOW IT WORKS FEATURES AND SPECIFICATIONS PART NAME INSTALLATION 9-11 OPERATION 12-14 CARE AND MAINTENANCE TROUBLESHOOTING... -
Page 3: Safety Precautions 1
SAFETY PRECAUTIONS 1 WARNING Be sure to follow all precautions below: The internal UV-C bulb contains a small amount of mercury which is contained inside the bulb unless broken. Mercury and mercury compunds are known to the State Running Environment Cautions of California to cause cancer and birth defects or other repoductive harm. -
Page 4: How It Works
SAFETY PRECAUTIONS 2 • Do not use the air purifier if the power cord or plug is damaged or the connection to the wall outlet is loose. • When removing the power plug, always hold the plug and never pull by the cord. •... -
Page 5: Features And Specifications
FEATURES AND SPECIFICATIONS The unit has a Pre-filter, HEPA-Rx Filter, Activated Carbon Filter, UV-C+ Bulb and Super Oxidizing Photocatalytic Nano-TiO system and Revitalizing Negative Ion generator. Automatic Function The odor and particle sensor can let the unit automatically select the appropriate fan speed depending on the air quality detected. -
Page 6: Part Name
PART NAME 01- Front panel 11- Unit housing 12- UV ballast 02- Lock 13- UV light blocker 03- Key 14- UV-C+ Bulb 04- Display panel back cover 15- Photo catalytic filter 05- LED Display circuit board 06- Fan motor front panel 16- Activated carbon filter 07- Maintenance panel 17- HEPARx filter... -
Page 7: Installation
INSTALLATION 1. Power supply condition: Use only a 120-volt outlet with grounding wire receptacle. 2. This product should be installed on the wall. It must be installed on the wall of the load-bearing wall, otherwise it will cause the unit to fall and potentially harm someone. 3. -
Page 8: Operation 1
OPERATION 1 Button Operation and Display Indicator Lights Button Operations 1. POWER Button - Turns the unit On and Off. - Hold the button for 2 seconds, the “ ” indicator light will light up with beeping. In this mode, the panel is locked. If you want to return to the default mode, do the reverse. - Page 9 OPERATION 2 Display indicator lights 7. NEGATIVE ION indicator light When this light is on, negative ions are discharged. 8. TIMER CYCLE indicator light When this indicator is lighting up, the unit will start to work for 2 hours and stops 0.5 hour automatically - this schedule will repeat itself continuously while in this mode.
- Page 10 OPERATION 3 Remote Control Operation 1 Power (ON/OFF) Button The unit will start operating when the POWER button is pressed. Pressing the button again will stop operation. 2 Scheduled operation time Buttons a. The first time press the “TIME” button, the digital clock on the display panel flashes - calibrate the current time by pressing the "+"...
-
Page 11: Care And Maintenance 1
CARE AND MAINTENANCE 1 To maintain optimum performance of this air purifier, the Pre-filter, the HEPA-Rx Filter, the Activated Carbon Filter and the UV-C+ Bulb need to be replaced when the indicator lights are flashing. If in an atmosphere with heavy dust, particulate or pet dander, you may need to periodically vacuum the filters for optimal performance. - Page 12 CARE AND MAINTENANCE 2 Replace the Pre-filter and the HEPA-Rx filter When the “ ” indicator light on the control panel flashes, the Pre-filter needs to be replaced. When the “ ” indicator light on the control panel flashes, the HEPA-Rx filter needs to be replaced. 1 Open the front panel 2 Take off the maintenance panel...
- Page 13 CARE AND MAINTENANCE 3 Replace the Activated carbon filter and the UV-C+ Lamp When the “ ” indicator light on the control panel flashes, the Activated carbon filter needs to be replaced. When the “ ” indicator light on the control panel flashes, the UV-C+ bulb needs to be replaced. 1 Removing the 2 Replace the UV-C+ Activated carbon filter...
-
Page 14: Troubleshooting
UV-C+ Bulbs should only be purchased from Surgically Clean Air or an authorized dealer at Surgically Clean Air. This will ensure that you are receiving UV bulbs that do not produce ozone. Many after-market sellers are selling ozone-generating UV bulbs. - Page 15 SURGICALL Y CLEAN AIR 1A - 6300 Viscount Road Mississauga, Ontario Canada, L4V 1H3 Tel: 1-877-440-7770 www.surgicallycleanair.com info@surgicallycleanair.com...
