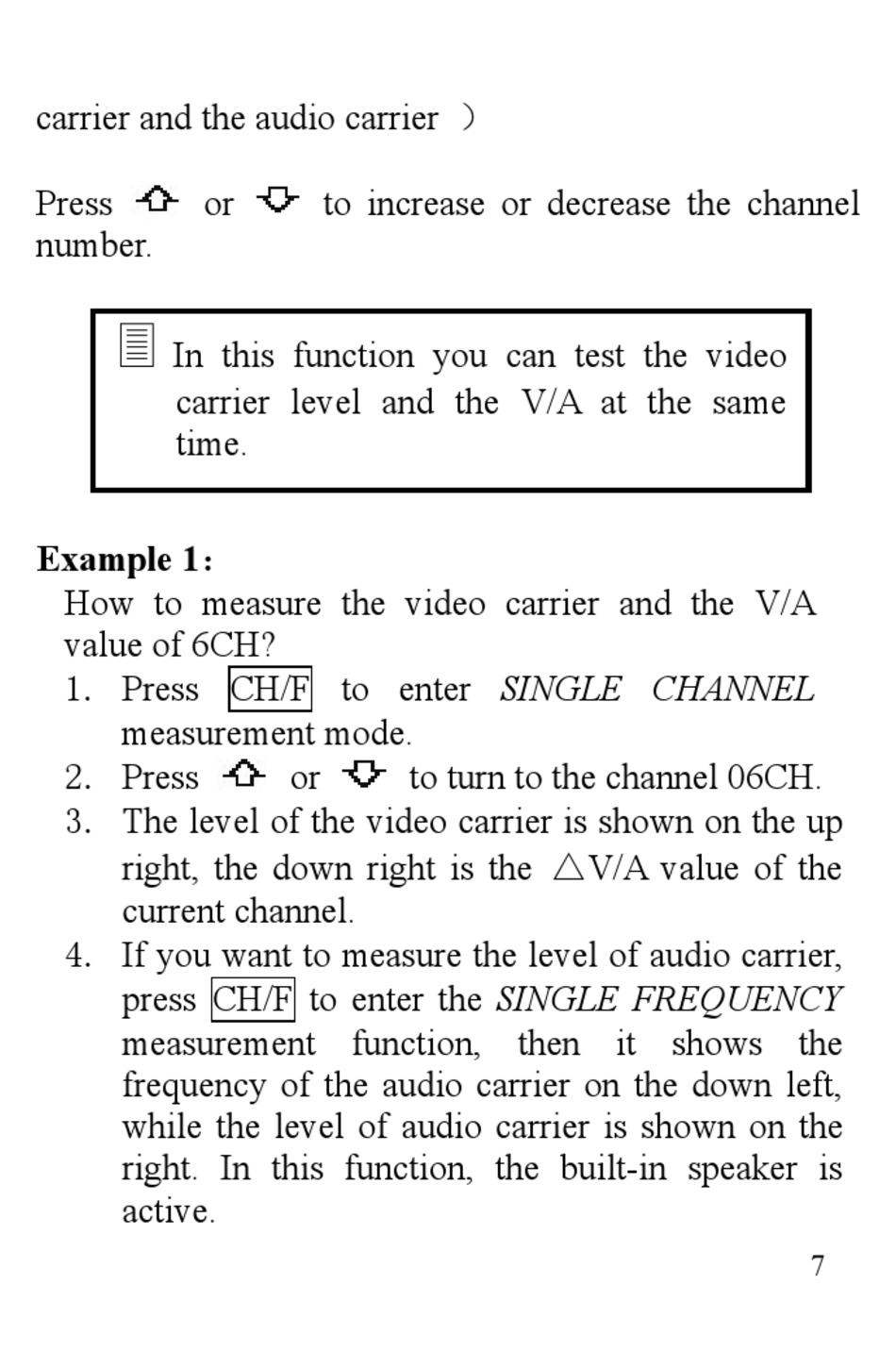

Deviser DS2002 Operation Manual page 10

carrier and the audio carrier ）
Press
number.

In this function you can test the video
carrier level and the V/A at the same
time.
Example 1：
How to measure the video carrier and the V/A
value of 6CH?
1. Press CH/F to enter SINGLE CHANNEL
measurement mode.
2. Press
3. The level of the video carrier is shown on the up
right, the down right is the △V/A value of the
current channel.
4. If you want to measure the level of audio carrier,
press CH/F to enter the SINGLE FREQUENCY
measurement function, then it shows the
frequency of the audio carrier on the down left,
while the level of audio carrier is shown on the
right. In this function, the built-in speaker is
active.
or to increase or decrease the channel
or to turn to the channel 06CH.
7
