AutoMonitor User Manual Version 7.22
9.4 Rollover Sensor Connector

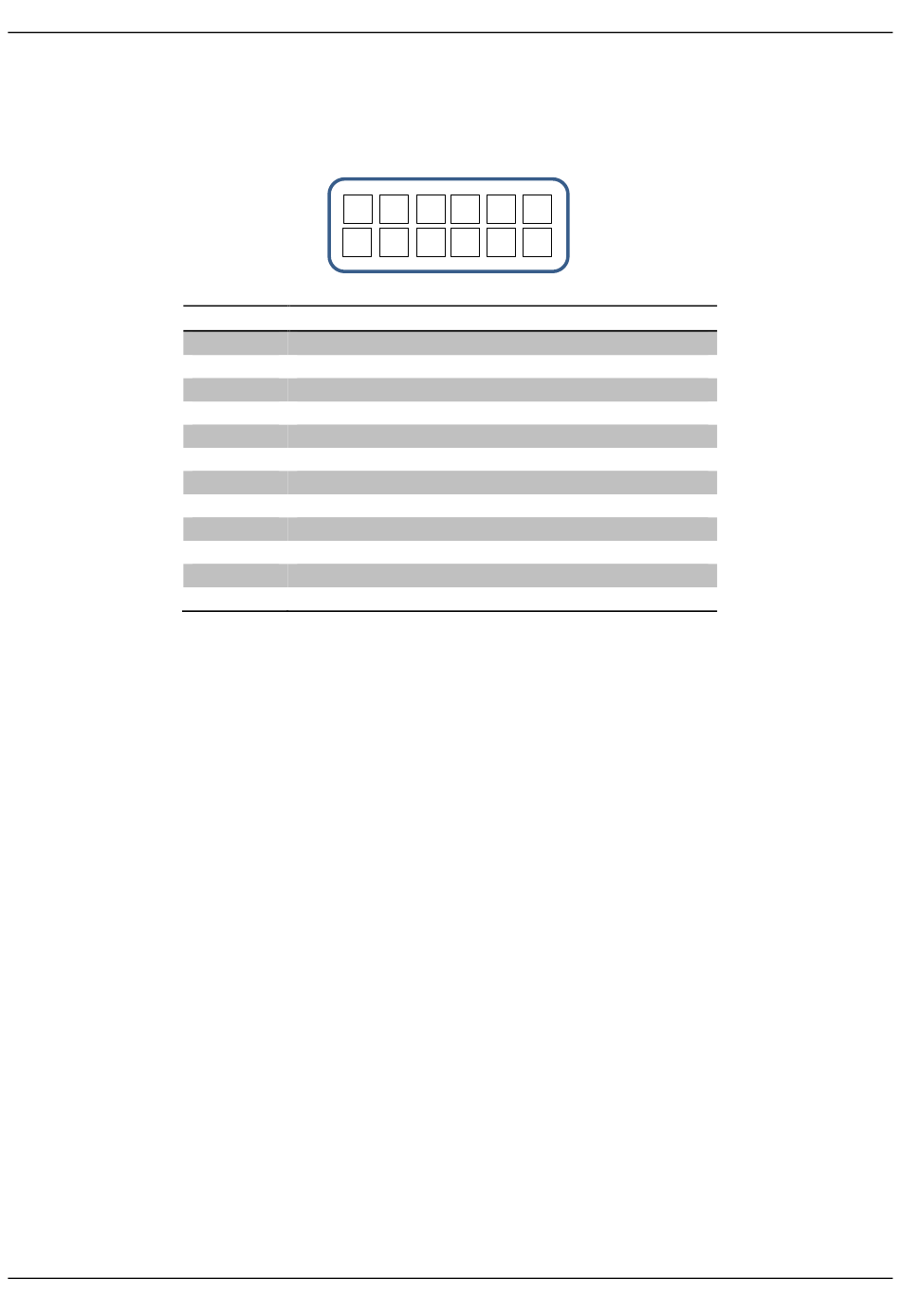

The rollover sensor connector is located at the back of the vehicle unit (VU). The rollover sensor
module is connected to this port. The description of individual pins of this port is provided below:
12
6
Pin
Description
1
Sensor Ready
2
Sensor Interrupt
3
-
4
Sensor Off
5
Battery (+)
6
-
7
-
8
-
9
GND
10
GND
11
Data Out
12
Data In
11
10
9
8
7
0
5
4
3
2
1
Page 67 of 70
