AutoMonitor User Manual Version 7.22

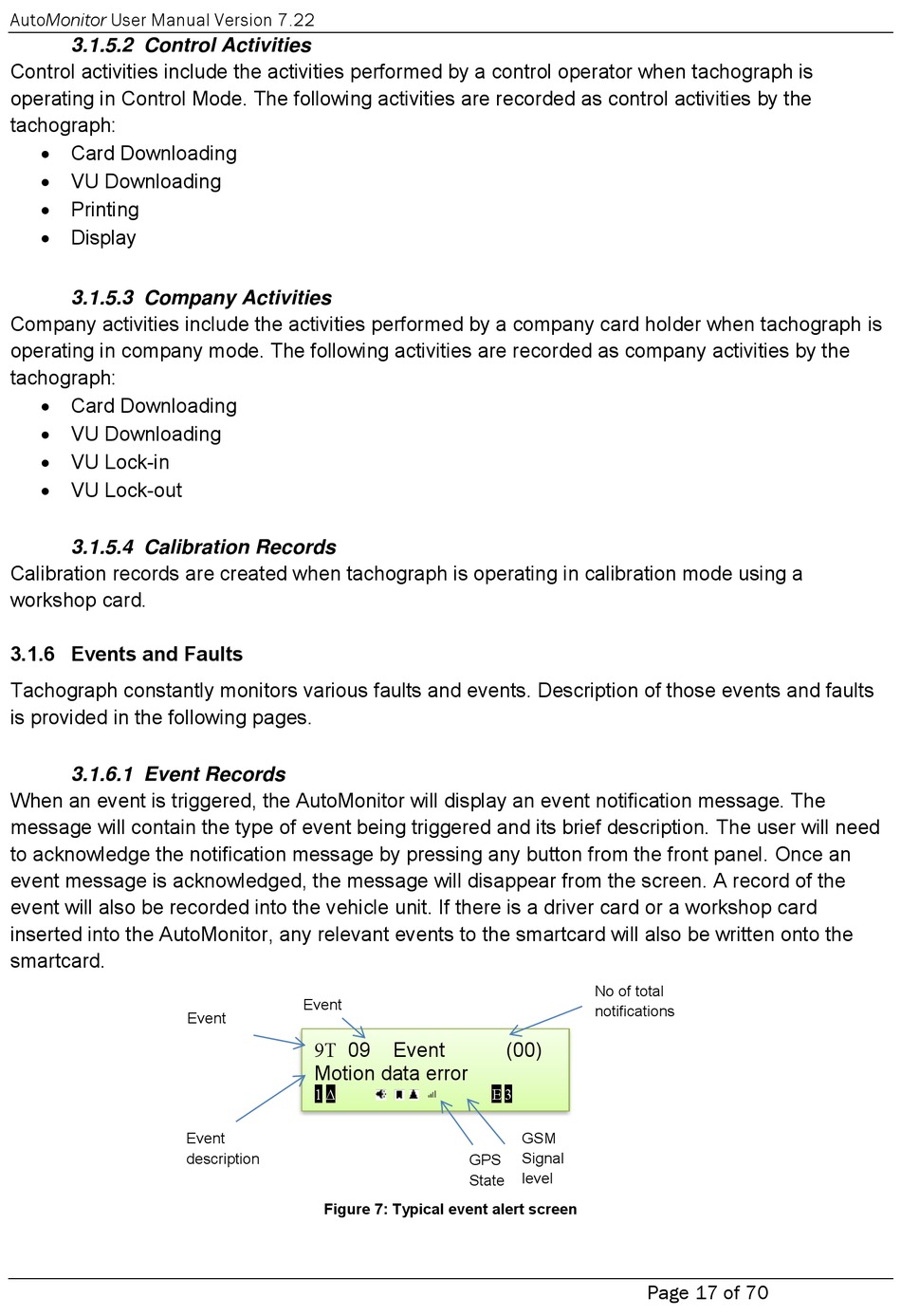

3.1.5.2 Control Activities
Control activities include the activities performed by a control operator when tachograph is
operating in Control Mode. The following activities are recorded as control activities by the
tachograph:
• Card Downloading
• VU Downloading
• Printing
• Display
3.1.5.3 Company Activities
Company activities include the activities performed by a company card holder when tachograph is
operating in company mode. The following activities are recorded as company activities by the
tachograph:
• Card Downloading
• VU Downloading
• VU Lock-in
• VU Lock-out
3.1.5.4 Calibration Records
Calibration records are created when tachograph is operating in calibration mode using a
workshop card.

3.1.6 Events and Faults

Tachograph constantly monitors various faults and events. Description of those events and faults
is provided in the following pages.
3.1.6.1 Event Records
When an event is triggered, the AutoMonitor will display an event notification message. The
message will contain the type of event being triggered and its brief description. The user will need
to acknowledge the notification message by pressing any button from the front panel. Once an
event message is acknowledged, the message will disappear from the screen. A record of the
event will also be recorded into the vehicle unit. If there is a driver card or a workshop card
inserted into the AutoMonitor, any relevant events to the smartcard will also be written onto the
smartcard.
Event
Event
code
pictogram
 09
Motion data error
 
Event
description
Figure 7: Typical event alert screen
Event (00)
 
GSM
Signal
GPS
level
State
No of total
notifications
Page 17 of 70
