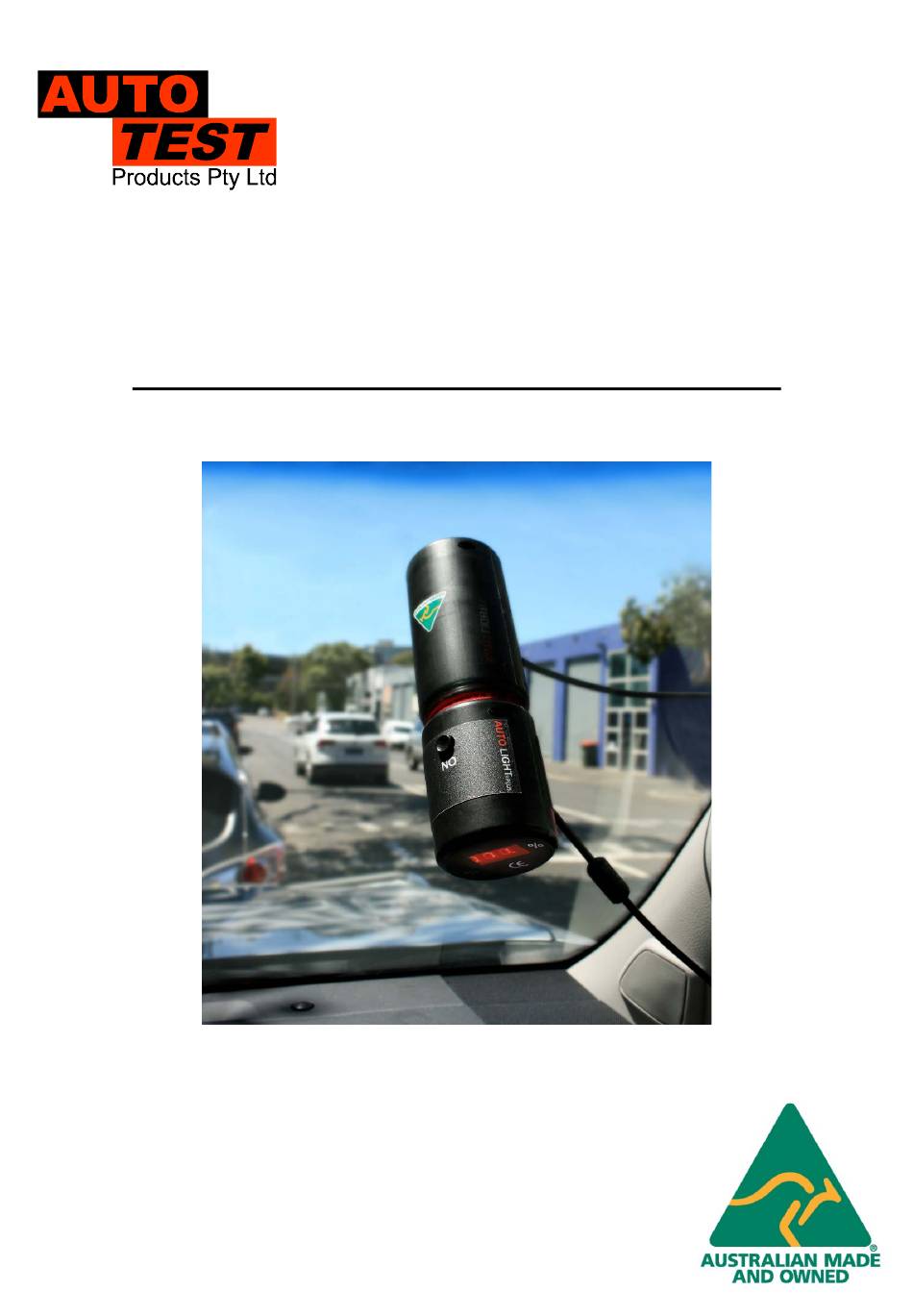

- Page 1 User Manual Version 3.5 AutoLight ® PLUS MAGNETIC H a n d s F r e e W i n d o w T i n t M e t e r Licence ID number: 10242...
- Page 2 E7474 DECLARATION OF CONFORMITY We, Auto Test Products Pty Ltd. declare under our sole responsibility that the product AutoLight Plus MAGNETIC is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity is available from http://www.autotest.net.au ©...
-
Page 3: For Your Safety
PREFACE Thank you for purchasing AutoTest products. Please read this manual completely before installing and operating the product so as to ensure correct operation of the product. Make certain that this manual can be accessed whenever necessary. FOR YOUR SAFETY Read these simple guidelines. - Page 4 1. UNPACKING AND FIRST TIME USE Congratulations on your choice of an AutoLight Plus MAGNETIC Light Tint Meter. Please take the time to read this User's Guide before using the AutoLight™ Meter in the field. Incorrect or inappropriate use of this instrument may void the warranty. Retain the packing materials for future shipping and transport of the unit for periodic calibration.
-
Page 5: Operation
Follow these four easy steps: Step 1 - Align: Align AutoLight Plus MAGNETIC to the side window or windscreen so that the light source and sensor are on opposing sides. *FOR ALL DOOR WINDOWS: The cable MUST be over the door, as pictured, for the magnets to hold. -
Page 6: Troubleshooting
6. CALIBRATION AutoLight Plus MAGNETIC will require calibration at intervals of two years (one year for UK) or as required by your local Authority. Calibration can only be carried out by AutoTest Products Pty Ltd or by an Authorised Service Centre. - Page 7 AutoLight Plus Use your Bluetooth Manager to establish pairing with your device. The light meter should be listed in the Bluetooth devices list as ALP12345, where 12345 is the serial number of the meter. AutoLight Plus Once the device is found by your Bluetooth Manager, establish pairing using PIN ‘1234’...
- Page 8 Finding the correct COM Port To find the Com Port in use by the AutoLight Plus, open Bluetooth Settings and click on More Bluetooth Options. Once in More Bluetooth Settings, the Com Ports in use by your Bluetooth Connections are shown.
- Page 9 Downloading from the AutoLight Plus Plus AutoLight Run the downloading application. (2) Select the COM port to match the port at which your Bluetooth Manager is connected to the light meter. Once the COM port is selected, press “Download Data” to begin downloading. (3) Once the data from the light meter is downloaded, you can press ‘Save Data to File..’...
- Page 10 8. SPECIFICATIONS AND SPARE PARTS Standards: Conforms with ISO 3538 Battery 2 x MN1604 batteries (9 Volt) - Duracell type only Light Source Output 2856 K + 50 K, conforming to C.I.E. standard illuminant A Lamp Voltage Stabilised within + 0.1% Sensor Spectral sensitivity conforming to photopic curve V(λ) of relative illuminous efficiency of the C.I.E.
-
Page 11: Warranty
9. WARRANTY To ensure prompt warranty service should it be required, please complete warranty registration form, and return to AutoTest Products Pty Ltd within 10 days of purchase of the product. AutoTest Products or an Authorised Service Centre warrants this product against defects in material and workmanship for a period of 12 months from the original date of purchase. - Page 12 NOTES: Copyright 2020 AutoTest Products Pty Ltd ABN 47 005 712 005. ® denotes a trademark owned by AutoTest Products Pty Ltd ABN 47 005 712 005 AUTOTEST Products Pty Ltd 61-63 Parsons St Kensington VIC 3031 Australia Phone: (+61 3) 8840 3000 Service: (+61 3) 8840 3016 service@autotest.net.au Sales:(+61 3) 8840 3017...
