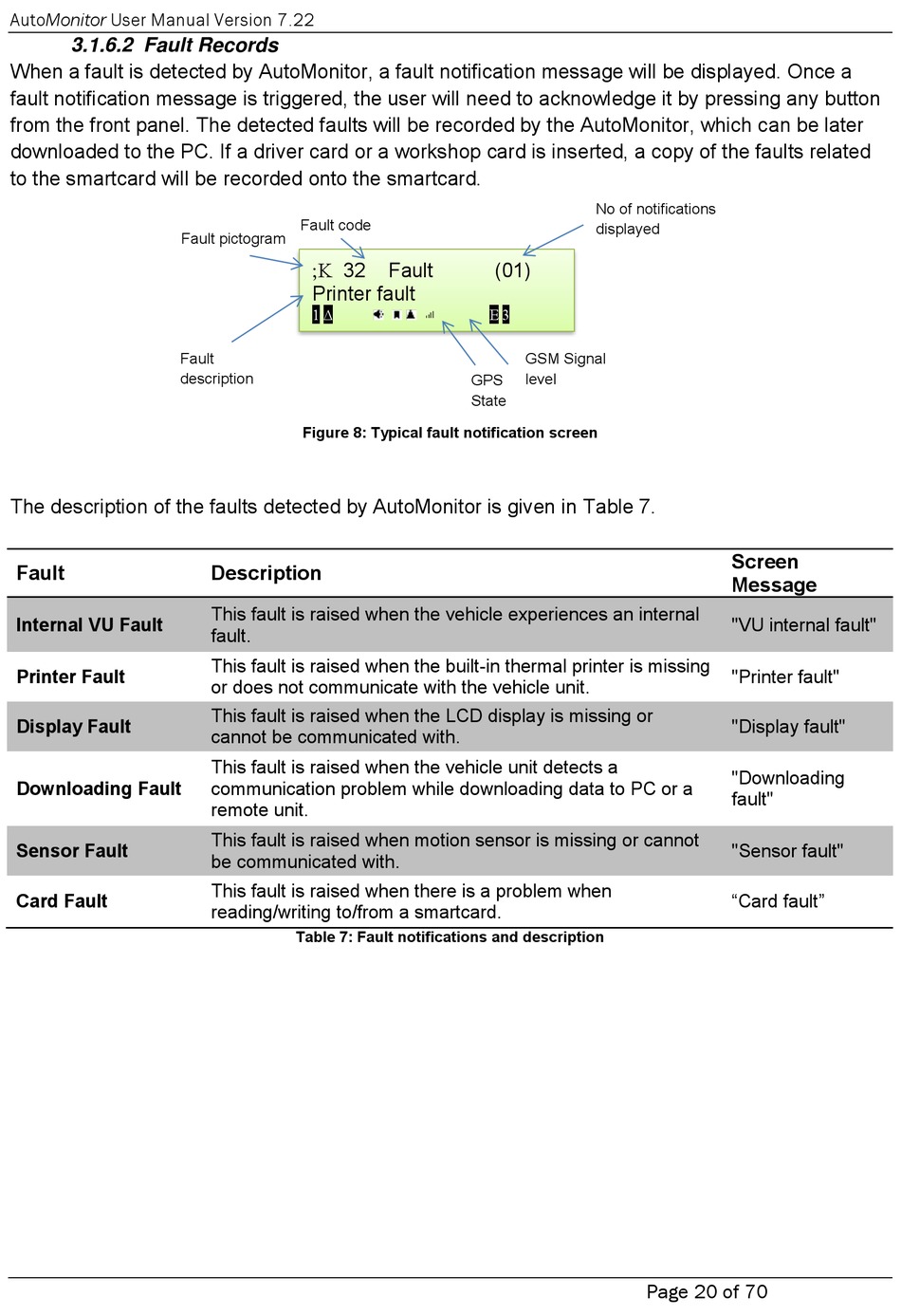

3.1.6.2 Fault Records
When a fault is detected by AutoMonitor, a fault notification message will be displayed. Once a
fault notification message is triggered, the user will need to acknowledge it by pressing any button
from the front panel. The detected faults will be recorded by the AutoMonitor, which can be later
downloaded to the PC. If a driver card or a workshop card is inserted, a copy of the faults related
to the smartcard will be recorded onto the smartcard.
The description of the faults detected by AutoMonitor is given in Table 7.
Fault
Internal VU Fault
Printer Fault
Display Fault
Downloading Fault
Sensor Fault
Card Fault
Fault code
Fault pictogram
 32
Printer fault
 
Fault
description
Figure 8: Typical fault notification screen
Description
This fault is raised when the vehicle experiences an internal
fault.
This fault is raised when the built-in thermal printer is missing
or does not communicate with the vehicle unit.
This fault is raised when the LCD display is missing or
cannot be communicated with.
This fault is raised when the vehicle unit detects a
communication problem while downloading data to PC or a
remote unit.
This fault is raised when motion sensor is missing or cannot
be communicated with.
This fault is raised when there is a problem when
reading/writing to/from a smartcard.
Table 7: Fault notifications and description
Fault (01)
 
GSM Signal
level
GPS
State
No of notifications
displayed
Screen
Message
"VU internal fault"
"Printer fault"
"Display fault"
"Downloading
fault"
"Sensor fault"
"Card fault"
