6.4 Vehicle profile setup

The profile of the vehicle includes the dimensions of the vehicle body, the combined weight of the
vehicle, and the properties of the suspension system.
Dimension
W
L
H
max
h
t
w
t
h
cg

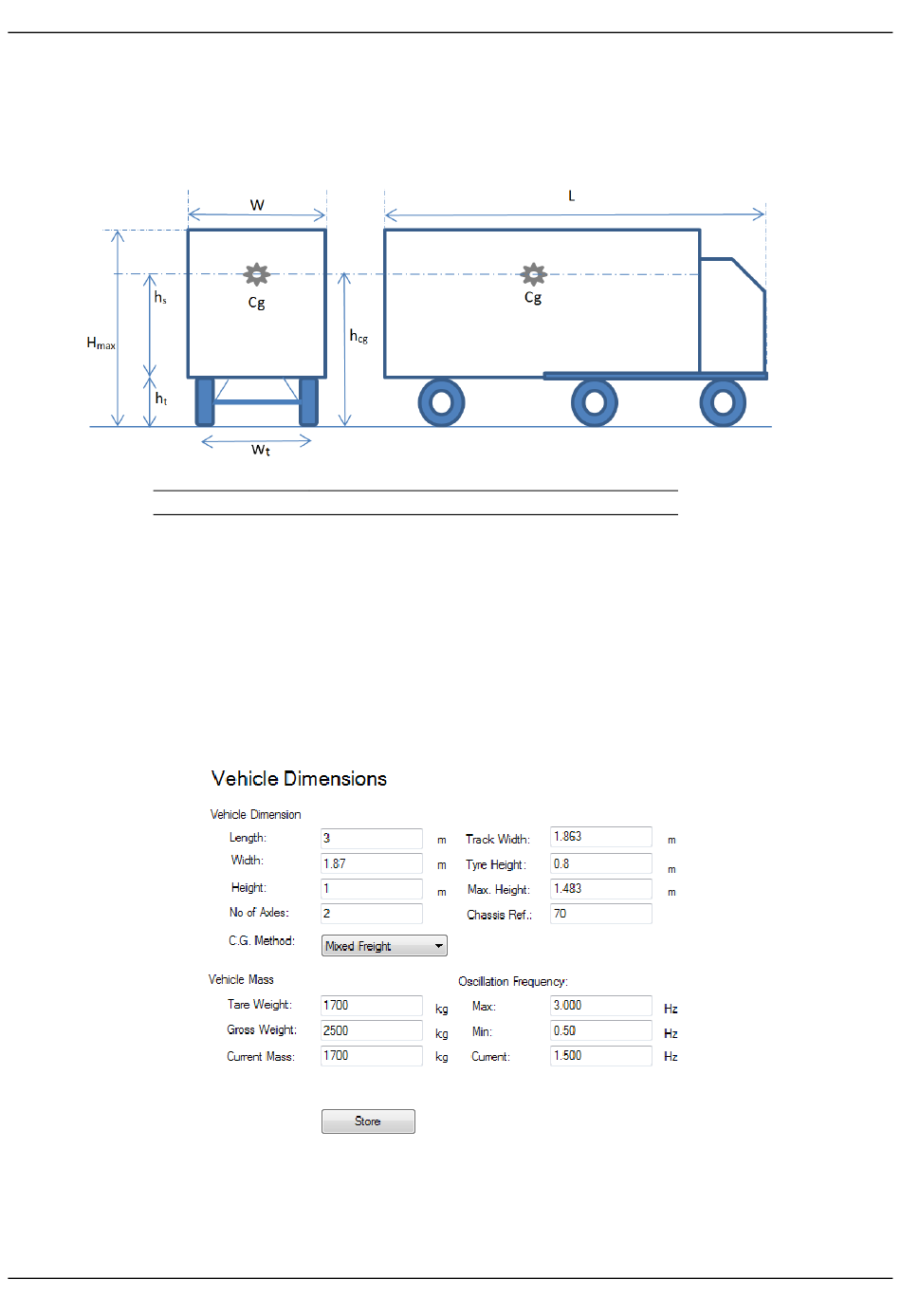

The profile of the vehicle can be entered in the vehicle dimensions form.
Description
Width of the vehicle body
Length of the vehicle
Maximum height of the body
Height of the tyres
Track width
Height, current centre of gravity height
Figure 49: Vehicle profile configuration window
