Turner Designs 2600-900 Product Instructions

Introduction
The following information describes how to use the
Solid Secondary Standard Cap and Solid Secondary
Standard Inserts for the Cyclops Integrator:
P/N 2600-900 Solid Secondary Standard Cap
P/N 2600-901 Solid Secondary Standard Insert for
in vivo Chlorophyll, Rhodamine WT,
Fluorescein, Phycocyanin, and
Phycoerythrin
P/N 2600-902 Solid Secondary Standard insert for
CDOM, Crude Oil, Refined Fuels,
and Optical Brighteners
Features

Can be used in place of a primary liquid standard
once a correlation between a primary standard
and the solid standard is established.

Can be used to check fluorometer stability.

Provides a broad range of very stable fluorescent
responses.

Adjustment screw allows users to set to a desired
signal level.
Numbered
Positions
Adjustment
Screw
998-2605
Product Instructions:
Solid Secondary Standard Installation
Raised
Machined Lip
www.turnerdesigns.com
Revision B
Installation

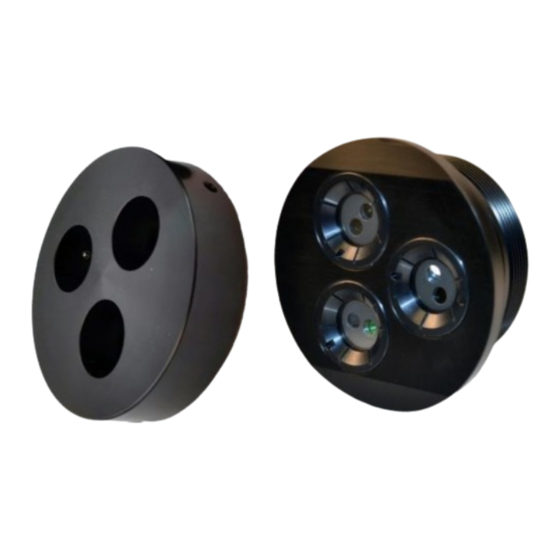

1) Align Solid Secondary Standard Cap numbers
with the Cyclops Integrator's numbers located on
the optical head and set the Solid Secondary
Standard Cap in place.
Solid Secondary Standard Cap numbers
and Cyclops Integrator numbers
2) Make sure that the raised machined lip of the
Solid Secondary Standard Cap fits into the
recessed optical ring of the Cyclops Integrator.
The cap should be flush with the Cyclops
Integrator and not able to rotate.
3) Insert up to 3 Solid Standards into the desired
optical ports on the Solid Standard Cap.
4) Rotate the Solid Standard(s) until set into
position. Note: You will feel/hear a click when the
Solid Standard is positioned properly.
Page 1 of 2
