UG-624

EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The EVAL-AD5161DBZ
provided on a CD. The software is compatible with Windows® XP,
Windows Vista, and Windows 7 (both 32-bit and 64-bit versions).
Install the software before connecting the
USB port of the PC to ensure that the SDP board is recognized
when it is connected to the PC.
1. Start the Windows operating system and insert the CD.
2. The installation software opens automatically. If it does
not, run the setup.exe file from the CD.
3. After the installation is complete, power up the evaluation
board as described in the Power Supplies section.
4. Connect the EVAL-AD5161DBZ
the SDP board and the SDP board to the PC.
5. When the software detects the evaluation board, follow the
instructions that appear to finalize the installation.

RUNNING THE SOFTWARE

To run the program, do the following:
1. Click Start > All Programs > Analog Devices > AD5161
> AD5161 Eval Board. (To uninstall the program, click
Start > Control Panel > Add or Remove Programs >
AD5161 Eval Board.)
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
kit includes evaluation board software
SDP board to the
and EVAL-MB-LV-SDZ to

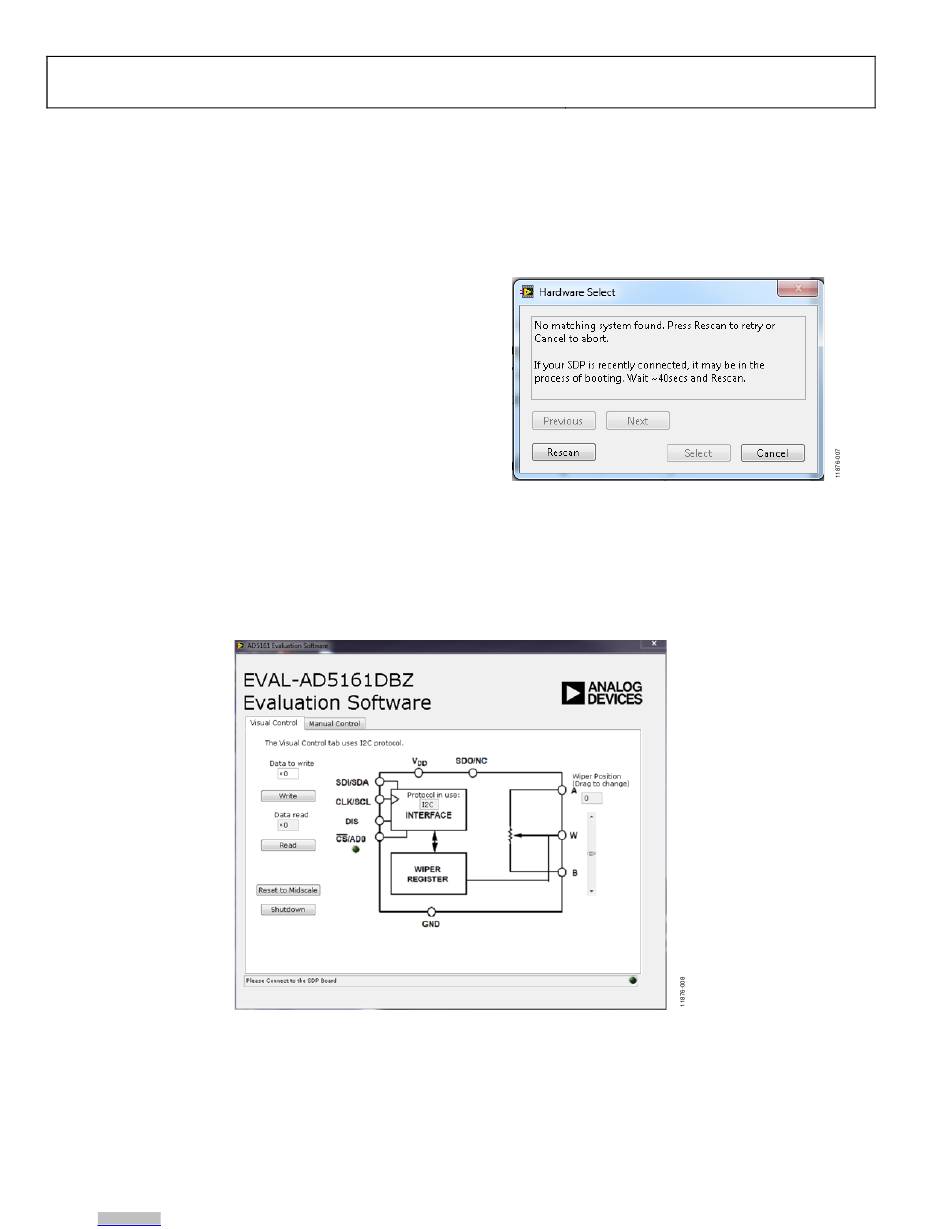

Figure 8. EVAL-AD5161DBZ
EVAL-AD5161DBZ User Guide
2. If the SDP board is not connected to the USB port when
the software is launched, a connectivity error displays (see
Figure 7). If a connectivity error is displayed, connect the
evaluation board to the USB port of the PC and wait a few
seconds, and then click Rescan and follow the instructions
that appear on-screen.
The main window of the
opens, as shown in Figure 8.
Software Main Window, Visual Control Tab
Rev. 0 | Page 6 of 16
Figure 7. Pop-Up Window Error
EVAL-AD5161DBZ software then
