SCREENS AND GABLES
Description:
DESK EDGE SCREEN - 10mm GLASS
Desk Edge Screen - 10mm Glass (HABCDG)
NOTE: If 48" or 54" Desk Edge Screen is
specified, Rectangular Grommet CAN NOT
be installed at center. Desk Edge Screen
(HABCDG1360) shown as an example.
Installation Guides
B1
For Customer Support please contact
product.support@teknion.com
A
B2
Date:
May 2017
HABL_202c

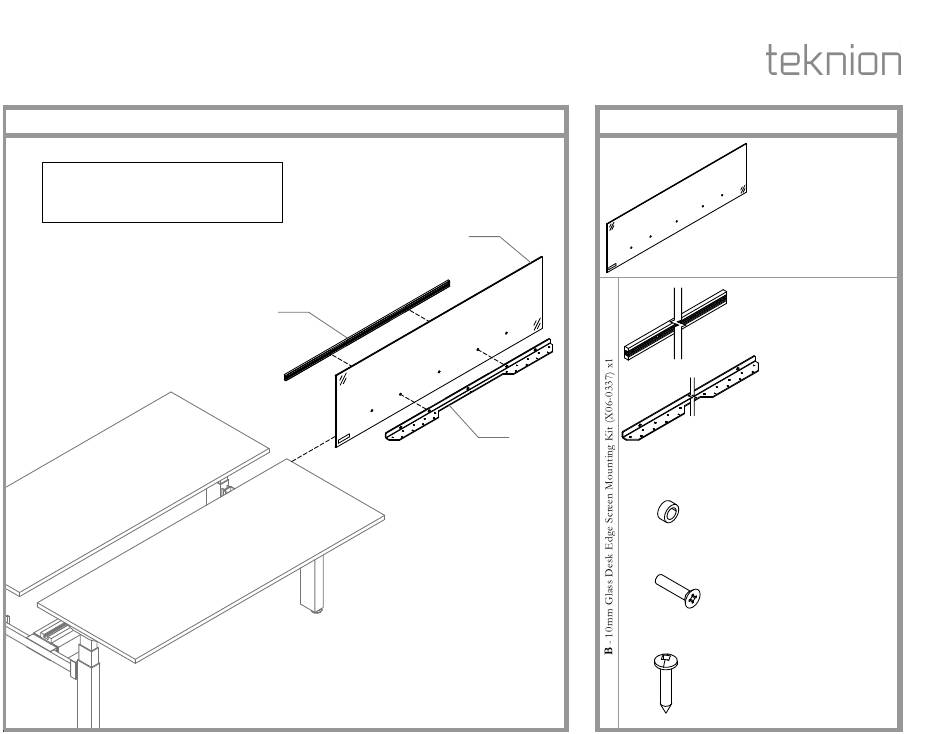

Part and Product Identification
A - 10mm Clear Tempered
Glass Screen
(H01-1921) x1
or
10mm Frost Etched
Tempered Glass Screen
(H02-0471) x1
B1 - Desk Edge Screen
Bar-Sub-Assembly
for Glass
(N09-5046) x1
B2 - Desk Edge Screen
Mounting Bracket
Sub-Assembly for Glass
(N09-5048) x1
B3 - Nylon Bush.; OD.1/2"
ID. 0.316" TH. 0.234
(#13RS050071)
(E03-0523)
B4 - 1/4-20x3/4" Machine
Screw, Flat
(E03-0723)
B5 - #10x1", Pan, Quadrex
Wood Screw, Deep
Thread, Zink
(E07-0097)
Page No:
1 of 3
Rev. No: 3
48"-54" x3
60"-66" x4
72"-96" x5
48"-54" x3
60"-66" x4
72"-96" x5
48" x10
54"-60" x14
66"-72" x18
78"-84" x22
Advertisement
Table of Contents
Related Manuals for Teknion HABCDG Series
Summary of Contents for Teknion HABCDG Series
- Page 1 72"-96" x5 B4 - 1/4-20x3/4" Machine Screw, Flat (E03-0723) 48"-54" x3 60"-66" x4 72"-96" x5 B5 - #10x1", Pan, Quadrex Wood Screw, Deep Thread, Zink For Customer Support please contact (E07-0097) 48" x10 product.support@teknion.com 54"-60" x14 66"-72" x18 78"-84" x22...
- Page 2 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 2 of 3 Description: DESK EDGE SCREEN - 10mm GLASS HABL_202c SCREEN MOUNTING KIT ASSEMBLY MARK CENTERLINE Underside View STEP 1: Fasten Screen Bar-Subassembly and Mounting Bracket to the 6mm Glass Screen. STEP 2: Mark the center on the bottom of the Worksurface with pencil as shown.
- Page 3 height-adjustable bench Installation Guides Section: SCREENS AND GABLES Date: May 2017 Page No: 3 of 3 Description: DESK EDGE SCREEN - 10mm GLASS HABL_202c ATTACH & ALIGN SCREEN SECURE SCREEN Underside View Detail View Detail View Underside View STEP 3: Attach Mounting Bracket to the back of the Worksurface. Make sure the cut out of the STEP 4: Fasten Mounting Bracket to the underside of the Worksurface as shown.
