Summary of Contents for Digitus DA-70883

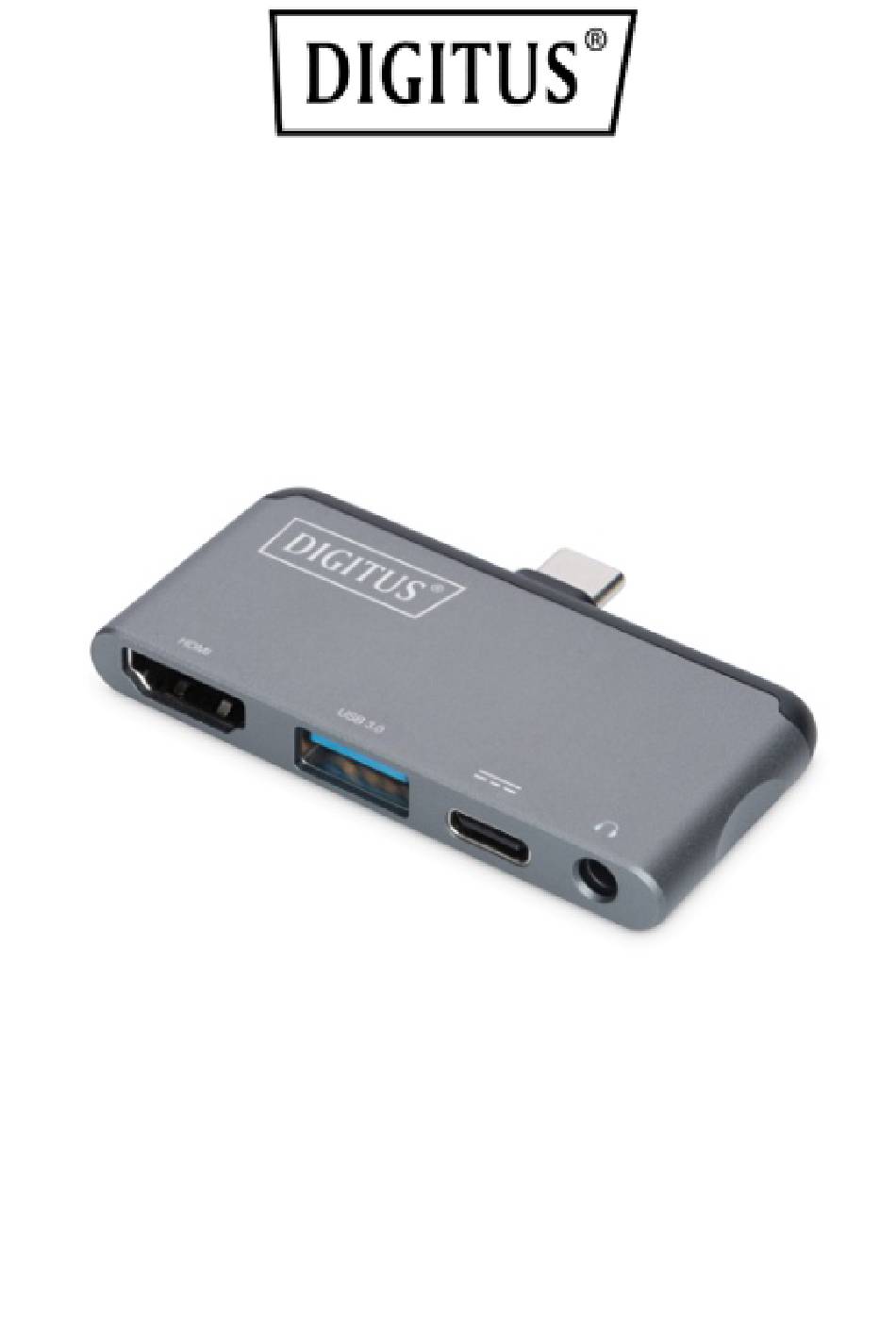

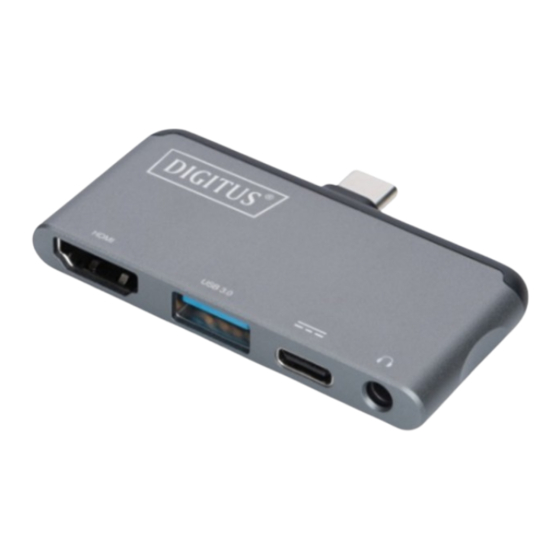

- Page 1 USB-C™ MOBILE DOCKING STATION, 4 PORT Manual DA-70883...
- Page 2 Connection to mobile device: 1x USB-C™ (male) Outputs: 1x HDMI® (female) – maximum resolution up to 4K/30Hz 1x USB-A 3.0 (female) – up to 5Gbps data transmission 1x USB-C™ (female) for charging with 20V/5A (100W) or data transmission with up to 480Mbps 1x 3.5 mm Audio (female)
- Page 3 Input/Output Connector Input 1x USB-C™ Outputs 1x HDMI®, 1x USB 3.0 A, 1x USB-C™, 1x 3,5 mm Audio Resolution 3840 x 2160p / 30Hz Physical Weight 20 g Size (LxWxH) 63 x 30 x 7.6 mm Environmental Operating 0 °C to +45 °C Temperature Operating Humidity 10 % to 85 % RH (no...
- Page 4 Example for application: 1. Monitor 2. USB Device 3. Power Adapter 4. Headphones Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
