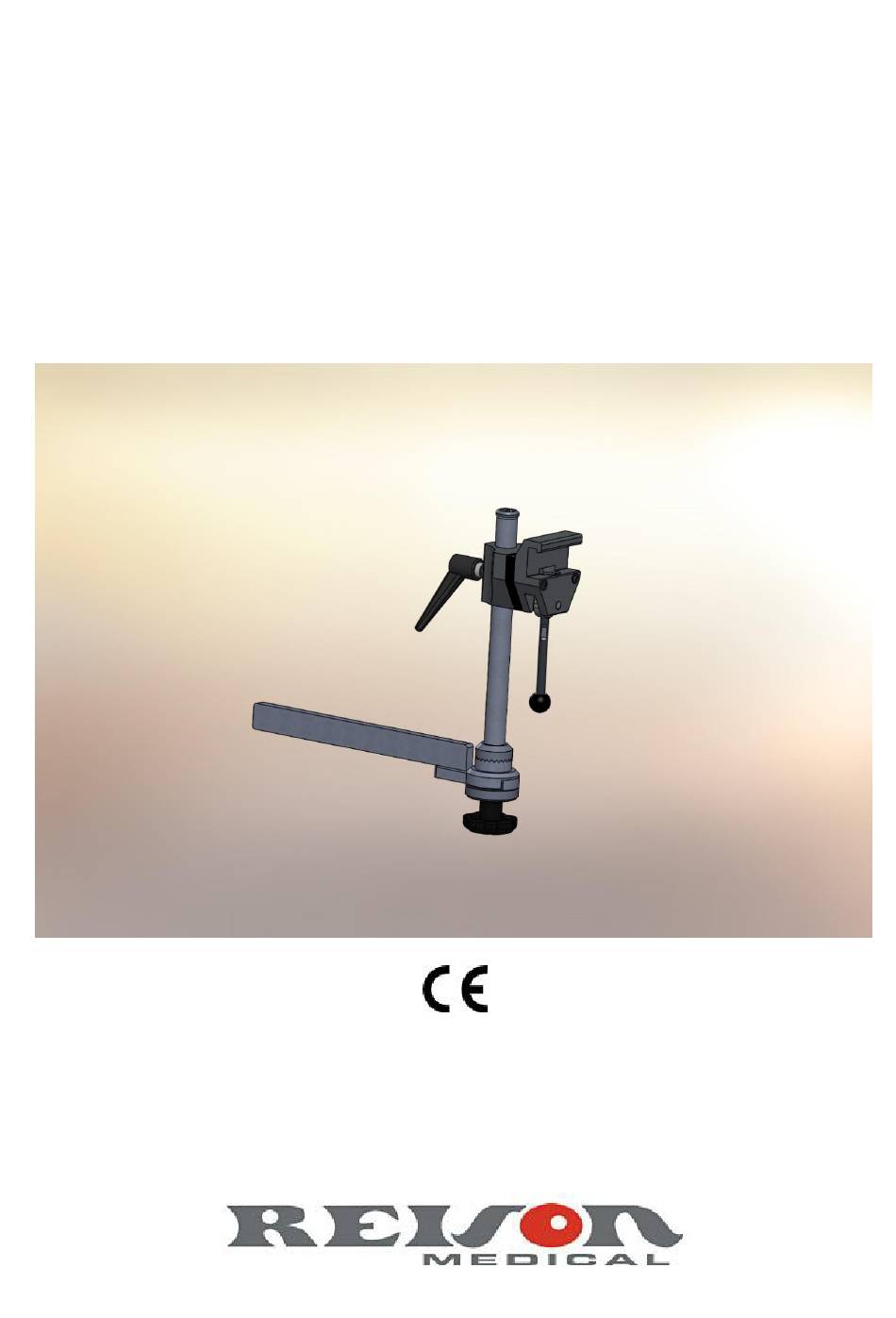

- Page 1 USERS MANUAL ANGULAR ACCESSORY RAIL 10-359 GMDN 41893 PID 59660 10-359 Edit.1 Page 1(4)
- Page 2 Accessory rail Knob for angular adjust of the accessory rail. To release the rail, turn the knob clockwise 2-3 revolutions, put rail in desired position and lock by turning the knob anticlockwise. 10-359 Edit.1 Page 2(4)
- Page 3 7. Knob VC.53 p-M10x30 soft 1pc. 18. Plunger 10711 1pc. 19. Eccentric 11165 1pc. 8. Screw MF6S M6x12 A2 1pc. 20. Lever 10014 1pc. 9. Washer 10004 1pc. 21. Ball K20 M8 S 1pc. 10. Clamp housing 10031 1pc. 10-359 Edit.1 Page 3(4)
- Page 4 33cm Width 30cm Vertical adjustment 16,5cm Weight 2,2kg Angel adjustment of rail 360° Safe Working load 25kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-359 Edit.1 Page 4(4)
