Summary of Contents for Tree MRC2000

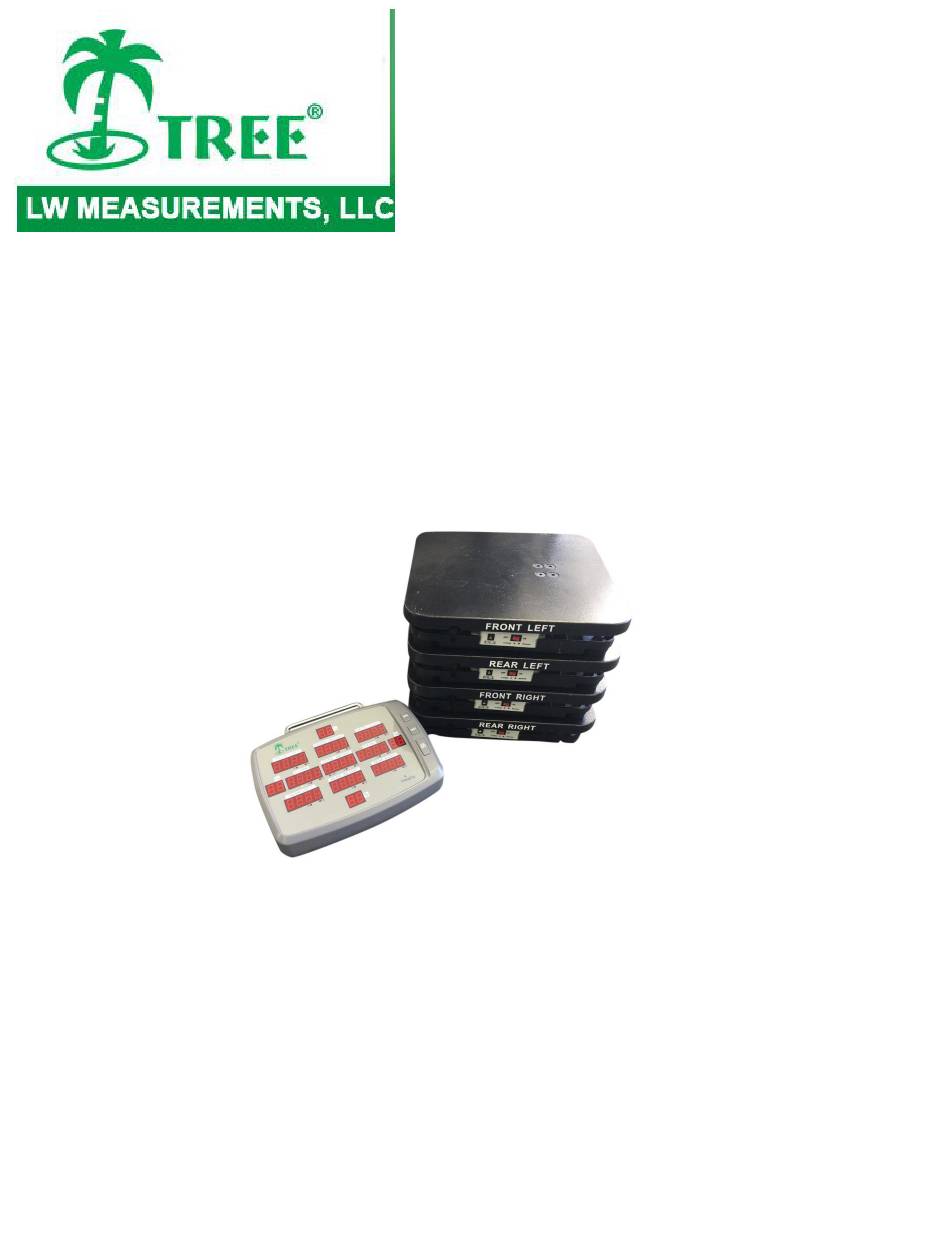

- Page 1 Professional Weighing Equipment Race Car Scales Wireless Car Scale Set Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety IP65 Protection Weight Scale Functions Features Application & Installation 9-10 Getting Started Delivery Assembly & Installation Application Menu Program Options 14-16 Calibration 16-17 Maintenance & Service Transportation & Storage Warranty Rev 1, 11.15.2018... -
Page 3: Declaration Of Conformity
Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: Weigh Bar series Imperial version Metric version MRC2000 MRC 6500 Mark applied EU Directive Standards 2004/108/EC... -
Page 4: Customer Service
Customer Service LW Measurements LLC 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com Rev 1, 11.15.2018... -
Page 5: Introduction
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work. - Page 6 If there should be any reason to believe that it is no longer safe to operate the scale, it should be immediately unplugged from the electricity supply (pull out power adapter) and secured against inadvertent operation. In carrying out maintenance work, it is essential to follow the recommendations set out in maintenance and servicing.
-
Page 7: Weight Scale

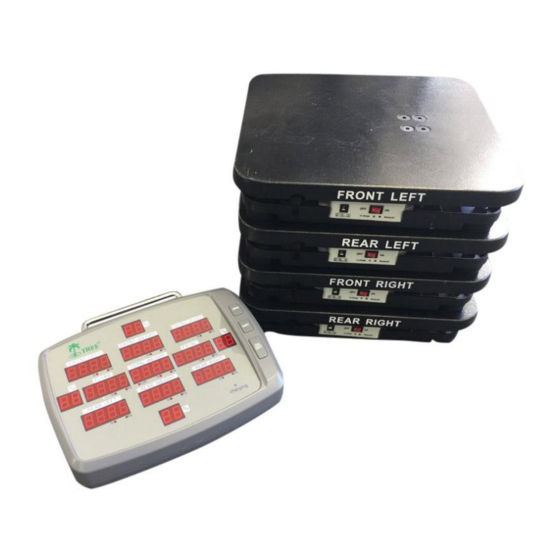

Weight Scale Construction & Functions The weighing scale consists of the following parts; Digital indicator (1) Scale pads (4) The adapter (1) Operation manual Rev 1, 11.15.2018... -
Page 8: Functions
Functions The Race Car Scales are high-quality electronic precision weighing devices with the following specifications Specifications Model number Capacity Division Weighing Platform Size MRC 2000 4 X 550 lb. 0.2 lb. 12 x 12.6 inches / 31 x 32 cm MRC 6500 4X1650 lb. -
Page 9: Features
FEATURES Display options: 44 digital LED Power: recharge/AC adapter 12V/1000mA Select LED brightness (selectable) Auto shut off (selectable) Operating Temperature: 5-35 °C Operating Humidity: 25%-95% RH Zero Range (4% to full capacity) Tare Range (50% to full capacity) ... -
Page 10: Delivery
Allowable ambient conditions Temperature: 5°C - 40°C Relative humidity: 25% - 85%, non-condensing If you have any questions on the technical data or require detailed technical information on your balance, please contact your technical representative. The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. -
Page 11: Assembly & Installation
Assembly & Installation The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: Insert the power adapter cable plug into the socket at the rear of the balance. Connecting the AC Adapter The following Safety recommendations must be observed when connecting the balance: Placement of Scale The location in which the scale is placed is very important in order for the scale to work... -
Page 12: Application Menu
Application Menu Display overview Rev 1, 11.15.2018... - Page 13 Key Functions: The ON/OFF key is to turn the Scale On or Off The UNIT Select weighing units: kg or lb The ZERO key: Zero for Tare The PRINT key is to send data to external device through RS232 connector. Interface Interface Settings ...
- Page 14 ： Features Display options：44 digital LED 2. Power: recharge / AC adapter 12V/1000 mA 3. Select LED brightness (selectable) 4. Auto shut off (selectable) 5. Operating Temperature：5～35℃ 6. Operating Humidity：25％～95％RH 7. Zero Range (4% to full capacity) 8. Tare Range (50% to full capacity) 9.
- Page 15 Battery CAUTIONS: 1. When the recharging sign “LoB” indicates, please charge the battery immediately. When the charging is done, the indicate lights will turn orange color into green color. Remove the adaptor when charging finished, and over-time charging will cause permanent damage. 2.
- Page 16 are online, if online succeed, the Bluetooth indicate light will become light constantly. 4 scales in zero mode.（NOTE：when the scale with nothing while the indicator shows weight, please check whether the connection between indicator and scale is caused by low voltage. Please connect the adapter to charge the indicator and the scale.
-
Page 17: Calibration
When to calibrate Calibration may be required when it is initially installed, if the scale/balance is moved to a substantial distance. This is necessary because the weight of a mass in one location is not necessarily the same in another location. -
Page 18: Maintenance & Service
Maintenance & Service The weighing machine must be treated carefully and cleaned regularly. It is a precision instrument. For maintenance-work, the balance must be separated from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be reconnected to the power supply during the work by a third party. -
Page 19: Warranty
marked temperature fluctuations during the transportation and that the weighing machine does not become damp (condensation). If you would like to take the weighing machine out of service for an extended period, disconnect it from the electricity supply, clean it thoroughly (refer to Maintenance & Service) and store it in a place which meets the following conditions: ...
