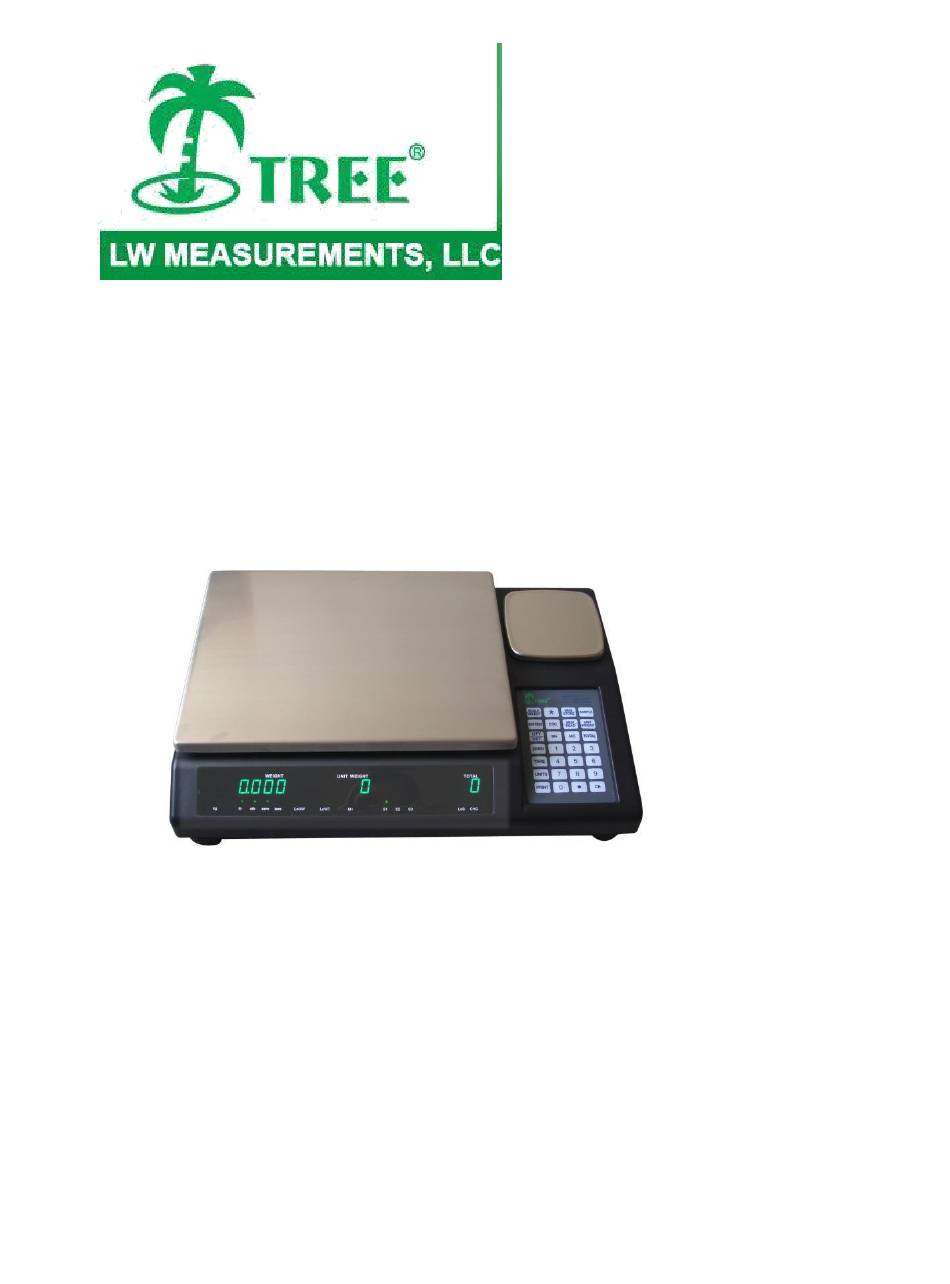

- Page 1 Professional Weighing Equipment DCT SERIES DUAL COUNTING SCALE Operating Manual Final Rev 2015.11.25...
-
Page 2: Declaration Of Conformity
Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: DCT Dual Counting Scale Available Models: DCT-50 DCT-100 Mark applied EU Directive Standards 2004/108/EC EN 61326-1: 2006 Date: 14. -
Page 3: Customer Service
Identification Customer Service LW Measurements LLC, 3510 Industrial Drive, Unit H Santa Rosa, CA 95403 Tel: (707) 542-2185 FAX: (707) 542-3285 EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 ASIA LW Measurements PTY Ltd... -
Page 4: Safety
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work. -
Page 5: Table Of Contents
Contents Section Heading Safety 1.1 Representation and symbols 1.2 Safety recommendations Your weighing machine Construction and functions 2.1.1 Construction of the weighing machine 2.1.2 Functions of the weighing machine Application, conformity 2.2.1 Correct use of the weighing machine 2.2.2 Conformity Data and parameters 2.3.1 Technical data Getting started with your weighing machine... -
Page 6: Representation And Symbols
1 Safety 1.1 Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: 1.2 Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing machine may only be used with the power adapter supplied exclusively for use with the weighing machine. -
Page 7: Your Weighing Machine
2 Your weighing machine 2.1 Construction and functions 2.1.1 Construction of the weighing machine The weighing machine consists of the weighing machine body (1), the scale-pan (2), the adapter (3) and this operating manual. Figure 2.1 Your weighing machine 2.1.2 Functions of the weighing machine Final Rev 2015.11.25... - Page 8 The DCT Series are high-quality electronic precision weighing machines designed to function as counting scales with the following specifications. Specifications: Model number Capacity Division Weighing pan Size DCT-50 50lb/2lb 0.001 lb/0.00005lb 345x260/114x114mm DCT-100 100lb/4lb 0.002lb/0.0001lb 345x260/114x114mm Package (Standard carton) 540x380x170mm...
- Page 9 The built-in versatile weighing programs allow you to use the DCT-Series weighing machines not only for accurate weighing but also for components counting. FEATURES Auto zero tracking Intelligent applications: weight unit conversion, parts counting Low battery indication ...
- Page 10 SCALE 3 Port RS232 Port Power Connection USB Port On/Off Switch Leveling feet Final Rev 2015.11.25...
-
Page 11: Correct Use Of The Weighing Machine
2.2 Application, conformity 2.2.1 Correct use of the weighing machine The weighing machine may only be used for the weighing of solid-materials and of liquids filled into secure containers. The maximum allowable load of the weighing machine must never be exceeded; otherwise the weighing machine may be damaged. -
Page 12: Getting Started With Your Weighing Machine
3 Getting started with your weighing machine 3.1 Unpacking the equipment The machine is delivered in an environmentally-friendly carton, specifically developed for this precision instrument, which provides optimum protection for the balance during transportation. We suggest that you retain the original packaging in order to avoid transportation damage if re-shipping or transporting the balance and to allow the unit to be stored in the best conditions if it is out of operation for an extended period. -
Page 13: Assembling Your Weighing Machine
3.3 Assembling your weighing machine The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: Place the unit holder in position and add the weighing pan Insert the power adapter cable plug into the socket at the rear of the balance. ... -
Page 14: Leveling The Weighing Machine
3.6 Leveling the weighing machine To function properly, the balance must be precisely horizontal. The balance is fitted with one bubble level and adjustable feet for level-control, with the aid of which it is possible to compensate for small height differences and / or any unevenness in the surface on which the balance is positioned. -
Page 15: Display Messages And Key Functions
4 Working with the application menu using the Key-Pad 4.1 Display messages and key functions 4.1.1 Display messages 1. Kg: unit of measure 2. lb: unit of measure 3. stb: stable indication 4. zero: ZERO INDICATOR turns on when scale is in Zero position 5. -
Page 16: Key Functions
9. S1: SCALE 1 working state 10. S2: SCALE 2 working state 11. S3: SCALE 3 working state 12. LoB: low voltage, please charge battery 13. CHG: charged state, red LED lights up when charging, when the battery is fully charged, Red and Green LED lights flash alternately. - Page 17 8. MEM/READ key is the SAMPLE WEIGHT READ KEY. Press this key to recall the memorized sample weight, if more than one sample weight is memorized continue to press this key until the correct sample weight is selected. Operation way: input unit weight storage place by number key then press [MEM/READ] key to catch unit weight.
-
Page 18: Program Options
4.2 Program options Besides performing accurate simple weighing, your versatile weighing machine can also perform pieces counting 4.2.1 Pieces counting 4.2.1.1 Counting pieces with known sample unit weight Turn scale on - Wait for "0" to appear on the display. - If necessary, press ZERO key to set the display to “0”... -
Page 19: Select A Pre-Stored Unit Weight
4.2.2 Select a pre-stored unit weight Key in the number of the pre-stored weight (01-16) using the numeric key pad, press MEM/READ key and select the pre-stored sample unit weight, press ENTER to confirm. 4.2.3 High/Low Check Weighing with Counting Turn scale on - Wait for "0"... -
Page 20: Calibration - Using An External Calibration Weight
5 Calibration - Using an External Calibration Weight: Calibration is required when the weighing machine is initially installed or if the scale is moved to a substantial distance from the original location. 10 minutes warm up of scale is always needed before calibration. - Page 21 - Press ENTER to set zero point (UNIT WEIGHT will show CAL-0 flashing for a few seconds and then changes to XXXX to set the calibration weight) - Press [CE] key and then press the corresponding number buttons based off of the amount of weight you are using to calibrate (example: if you are using 1lb to calibrate the scale you would key in 1lb).
-
Page 22: Maintenance And Service
- Press CE Key to set the full capacity – key in the number through the numeric keypad - Press (*) to set the division – key in the number through the numeric keypad - Press ENTER to confirm - Now begin the CALIBRATION process: - Press UNIT key to select whether you will calibrate in kg or lb - Press ENTER to set zero point (UNIT WEIGHT will show CAL-0 flashing for a few seconds and then changes to XXXX to set the calibration weight) -
Page 23: Transportation And Shipping
Never use solvents, acids, alkalis, paint thinners, scouring powders or other aggressive or corrosive chemicals for cleaning, since these substances attack the surfaces of the scale housing and can cause damage. 7 Transport, storage 7.1 Transportation and shipping of the weighing machine Your weighing machine is a precision instrument.
