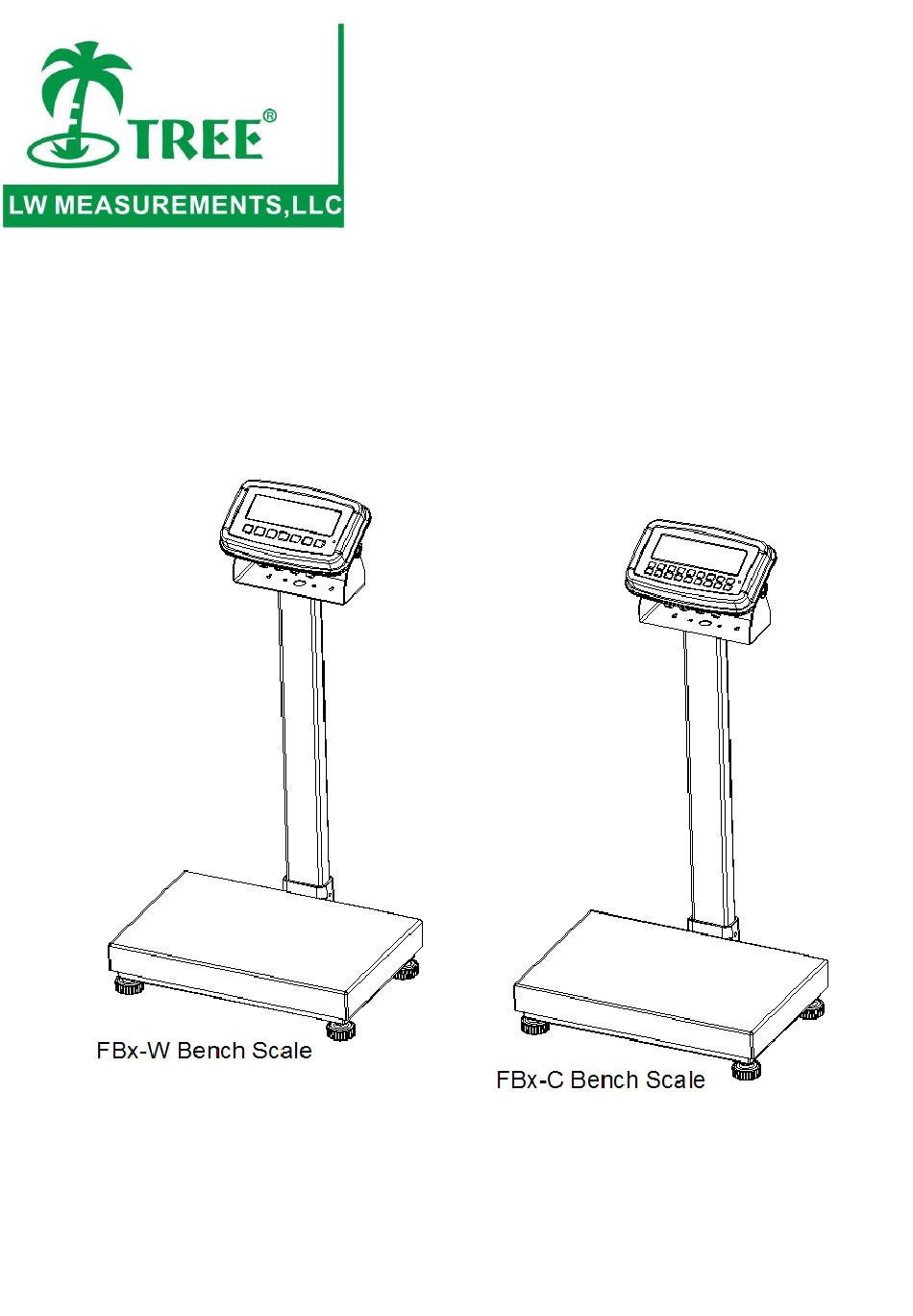

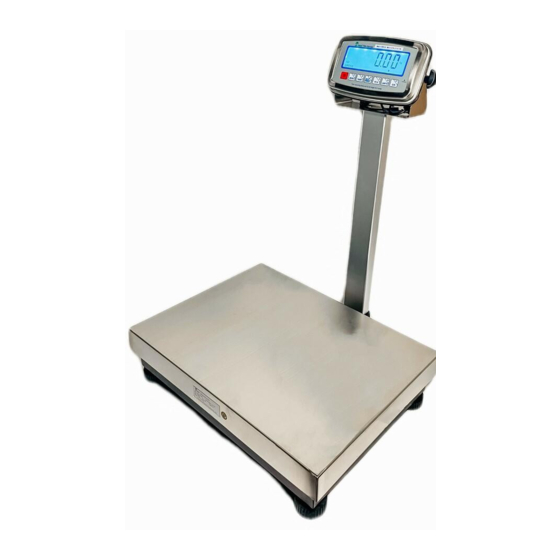

- Page 1 FBx Series Bench Scale Instruction Manual NTEP (Cert.#19-137)
- Page 2 FBx Series Bench Scale Fuzhou Furi Electronics Co.Ltd 1. Description This manual contains installation, operation and maintenance instructions for the FBx Series Bench Scales. Please read this manual completely before installation and operation. The indicator instructions please refer to ”FBx Indicator Manual”. The FBx Series is a dedicated static checkweighing product line with enhanced software and simplified user functionality.
- Page 3 FBx Series Bench Scale Precautions For safe and dependable operation of this equipment, please comply with the following precautions: • Verify that the input voltage range printed on the data label matches the local AC power to be used. • Make sure that the power cord does not pose a potential obstacle or tripping hazard.
- Page 4 FBx Series Bench Scale 1.1.1 Power Adapter Option Safety Precautions Please use only approved Power Adapter. CAUTION: ELECTRICAL SHOCK HAZARD. REMOVE ALL POWER CONNECTIONS TO THE INDICATOR BEFORE SERVICING OR MAKING INTERNAL CONNECTIONS. THE HOUSING SHOULD ONLY BE OPENED BY AUTHORIZED AND QUALIFIED PERSONNEL, SUCH AS AN ELECTRICAL TECHNICIAN.
-
Page 5: Installation
FBx Series Bench Scale 2. INSTALLATION 2.1 Unpacking and Checking Unpack and verify that the following components have been included: • FBx bench scale • Instruction Manual • Certification/Packing list • Stainless Steel platform • Accessory pouch • Warranty Card Retain all of the original packaging materials in the event the unit has to be transported or stored. - Page 6 FBx Series Bench Scale 2.3 Power Connection 2.3.1 Power Adapter Plug the AC power cord into a properly grounded power outlet. The FBx Indicator utilizes a universal switching power supply, AC 100-240V 50/60Hz Input, DC 12V 1000mA Output. 2.3.2 Battery Power The scale can be operated on the internal rechargeable battery when AC power is not available.
- Page 7 FBx Series Bench Scale means charging is in progress. Turning to a green led indicates that the battery is fully charged. It’s not necessary to turn on the power when the scale is during charging process. It takes 3 hours at least to charge the battery fully. Before using the scale on battery power for the first time, the internal rechargeable battery requires charging for up to 10 hours.
- Page 8 FBx Series Bench Scale Drawings and Dimensions...
- Page 9 FBx Series Bench Scale Figure 3-1. FBx Series Bench Scale. Dimension Dimension from Base Total Total Total from Platform Indicator bottom Height Wdth Length surface to the to the ground ground FBx-m1824 33inch 18inch 29inch 26inch 6inch FBx-m2424 33inch 24inch 29inch 26inch 6inch...
- Page 10 FBx Series Bench Scale TABLE 3-1. TYPICAL CAPACITY AND GRADUATION VALUES Model Capacity Platter size FBx-m1824 18inch x 24inch 500lb 0.1lb FBx-m2424 24inch x 24inch 8000oz 226.80kg 0.05kg FBs-m1824 18inch x 24inch 226800g FBs-m2424 24inch x 24inch Explanation of model designations: FBx-myyyy; x: denotes the material S indicates Stainless Steel and blank indicates Cast Steel;...
- Page 11 FBx Series Bench Scale conditions may require that the scale be recalibrated. Temperature changes, geographic gravity variations and rough handling are few reasons why a scale may need recalibration. Notes: 1. Make sure that appropriate calibration masses are available before beginning calibration. 2.
- Page 12 FBx Series Bench Scale Open the indicator housing. Shorting the CAL jumper of J13 on the main PC board. See .Move to position 2-3 Press key to turn on the indicator, the system will enter the self checking mode. Press key during appears on the display, the display will show...
- Page 13 FBx Series Bench Scale “FBx Indicator Manual”. FBx-C counting indicator can use numeric keypad, FBx-W weighing indicator can use key to add 1 and key to shift 1. Values entered refer to Appendix D for typical values of “FBx Indicator Manual”.
- Page 14 FBx Series Bench Scale setting. The display will show This item is set the division. The unit shown is the main unit that is set in front. Selections are: 0.01 /0.02 /0.05 /0.1/ 0.2 /0.5 /1 /2 /5 /10 /0.002 /0.005. After setting the division, the scale will enter the calibration.
- Page 15 FBx Series Bench Scale If calibration fails, please press key to return, then to check if parameter setting is correct. Step 8:Turn off the power, then turn on the power again, place a known weight on the platform to verify if it is accurate. Step 9: If the weight displayed does not correspond with the value of the calibration weight, please repeat above steps.
-
Page 16: Legal For Trade
FBx Series Bench Scale 3.4 Legal for Trade... -
Page 17: Accessories And Options
FBx Series Bench Scale Before this product can be used in legal-for-trade or legally controlled applications, it must be inspected in accordance with local Weights and Measures or approval agency regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met. Please contact your local Weights and Measures office or authorized manufacturer’s representative for further details. - Page 18 FBx Series Bench Scale Furi products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period Furi will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid to Furi.
-
Page 19: Warranty Card
FBx Series Bench Scale LW Measurements, LLC Warranty card Customer service hotline : 707-542-2185 After-sale service email : support@lwmeasurements.com Notice: Warranty card helps ensure equipment maintenance service. Please save the warranty card carefully after opening the carton and using our scale. User name: Address: Contacts:... - Page 20 FBx Series Bench Scale services. ▇We will provide maintenance service according to your warranty card and invoice. Fuzhou Furi Electronics.,LTD Delivery address: 37 Building, B zone, Pushang Park, Jinshan Industrial District, Fuzhou Post code: 350008 Tel: 86-591-83646863 ,83859705 Fax: 86-591-87984861 ,83050562 Product standard code: Technology subject to change without notice.
- Page 21 FBx Series Bench Scale 1 9 9 0 1 0 1 E 2 0 8 0 1 P/N 1990101E20801 © 2016 Fuzhou Furi Electronics.,LTD property in copyright No. 00000199 MADE IN FUJIAN...
