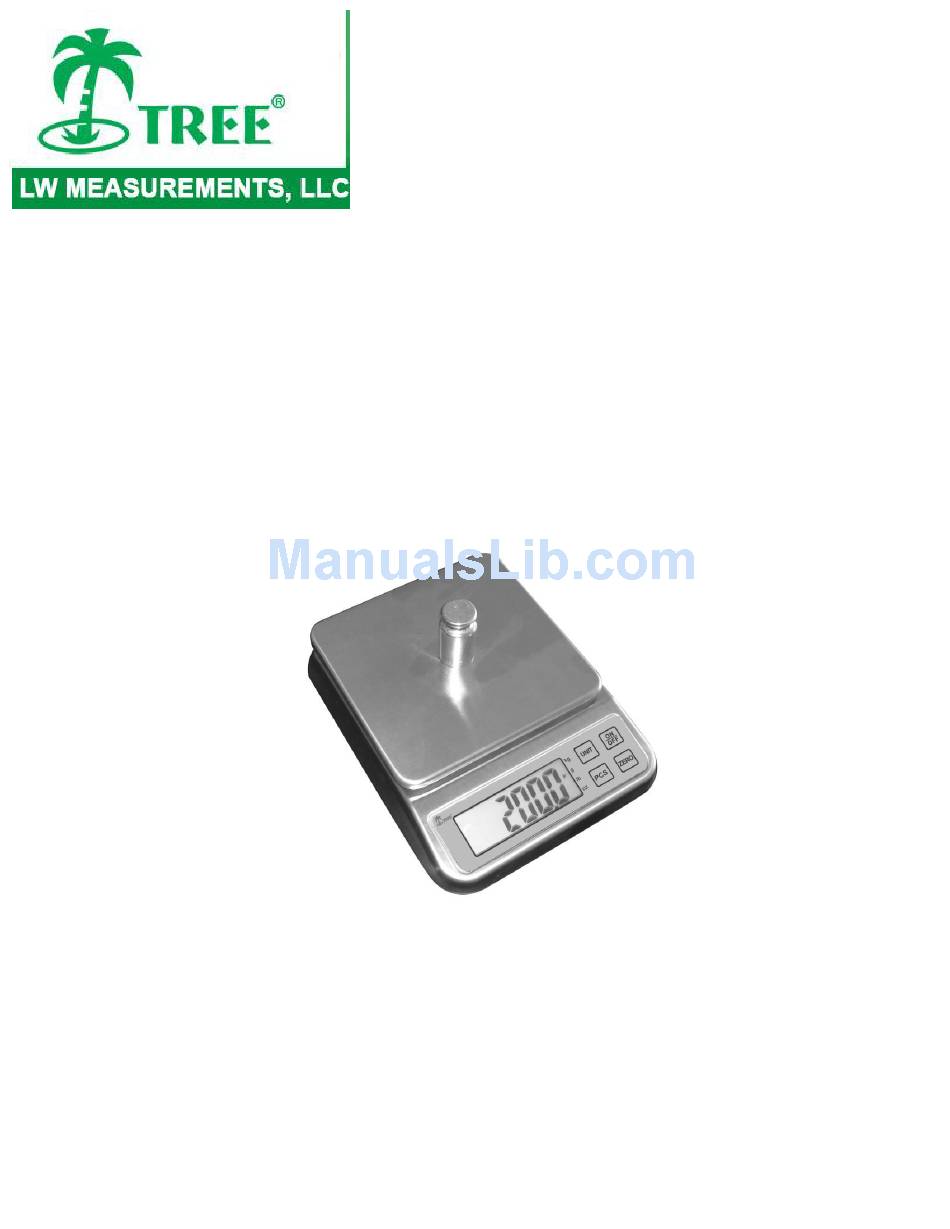

- Page 1 Professional Weighing Equipment MRW SERIES intelligent weighing scale WASHDOWN WEIGHING SCALE - Dust and Waterproof Scale IP65 WITH PIECE COUNTING FUNCTION Operation Manual...
-
Page 2: Table Of Contents
MRW Operation Manual Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety IP65 Protection Weight Scale Functions 9-10 Features 10-11 Application & Conformity Getting Started Delivery Assembly & Installation Application Menu Program Options Calibration Maintenance & Service Transport &... -
Page 3: Declaration Of Conformity
MRW Operation Manual Declaration of Conformity Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: MRW Washdown Scales Imperial version Metric version MRW-3 MRW-1500 MRW-7 MRW-3000... -
Page 4: Customer Service
MRW Operation Manual Customer Service LW Measurements LLC, 3510 Industrial Drive, Unit H Santa Rosa, CA 95403 Tel: (707) 542-2185 FAX: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com... -
Page 5: Introduction
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work. -
Page 6: Safety
MRW Operation Manual Safety Representations and symbols mportant instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 7: Ip65 Protection
MRW Operation Manual IP65 protection Your MRW weighing scale is rated to IP65. The IP rating system IP stands for Ingress Protection The rating’s first digit e.g. IP65 relates to the ingress protection against dust (6 means dust tight, see the table below) ... -
Page 8: Weight Scale

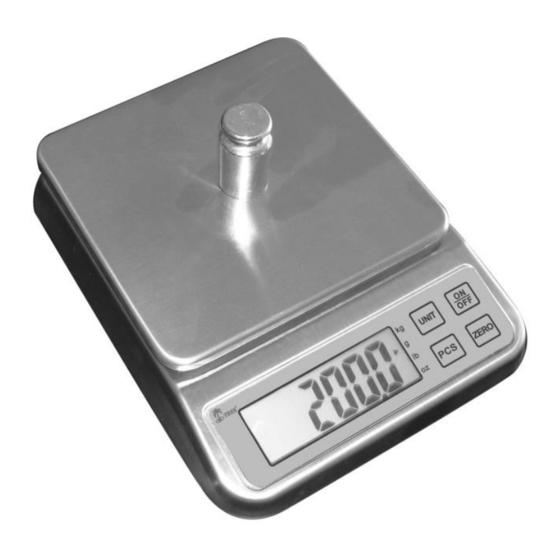

MRW Operation Manual Weight Scale Construction & Functions The weighing scale consists of the following parts; The scale body (1) The scale-pan (2) The adapter (3) Operation Manual. Figure 2.1 Your weighing machine Rev. 2, 1.12.2016... -
Page 9: Functions
MRW Operation Manual Functions The MRW Series are high-quality electronic precision weighing scales designed to function as counting scales and check-weights with the following specifications Imperial weight unit version Model number Capacity Division Weighing pan Size MRW-3 3 lb. 0.0001 lb. -
Page 10: Features
MRW Operation Manual Metric weight unit version Model number Capacity Division Weighing pan Size MRW-1500 1500 g 0.05 g 165 x 175mm MRW-3000 3000 g 0.1 g 165 x 175mm MRW-7500 7500 g 0.2 g 165 x 175mm MRW-15k 15 kg 0.0005 kg 165 x 175mm Package... - Page 11 MRW Operation Manual Figure 2.2 Details of your weighing machine Weighing pan Bright back-lit display Adapter socket Battery compartment cover Battery compartment (dry cells not included) Rev. 2, 1.12.2016...
-
Page 12: Application & Conformity
The power adapter supplied for the weighing scale complies with the appropriate electrical protection class. The following applies to all MRW series weighing scales Power supply: Input: 110V or 230V AC (+/-15-20%); 50Hz to 60Hz... -
Page 13: Getting Started
MRW Operation Manual Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 14: Assembly & Installation
MRW Operation Manual Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. Place the plastic platter on top of the scale, flat side facing up so the platter sits firmly on the machine with the four “legs”... -
Page 15: Application Menu
MRW Operation Manual Application Menu Display messages & Key functions Display messages The STABLE icon indicates when the readings stabled. The ZERO icon indicates when the weights tared to zero. The LO-BAT icon indicates when running out of battery. Key functions ... -
Page 16: Calibration
MRW Operation Manual Auto shut off setting Press and hold the “PCS” key, and then press the “On/Off” key to turn on the scale, the display will show A_ON or A_OFF. Press the “Zero” key to select A _ON (this will activate the auto shut off function) or A_OFF (this will deactivate the auto shut off function). -
Page 17: Maintenance & Service
MRW Operation Manual Maintenance and service The weighing scale is a precision instrument and must be treated carefully and cleaned regularly. For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also, ensure that the balance cannot be connected to the power supply during the work by a third party. -
Page 18: Warranty
MRW Operation Manual Warranty The products are under warranty against factory defects for a period of two (2) years from the date of shipment. For Customers within the lower 48 states of the continental United States. LW Measurements will pay for fright both ways for the first 30 days after purchase. After 30 days expire the customer is responsible for shipping the product back to us.
