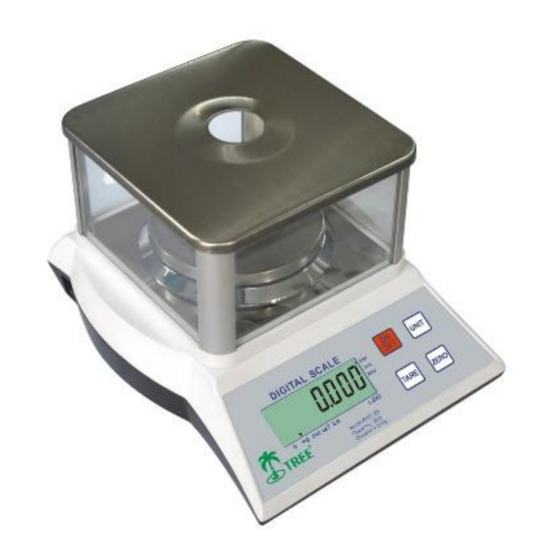

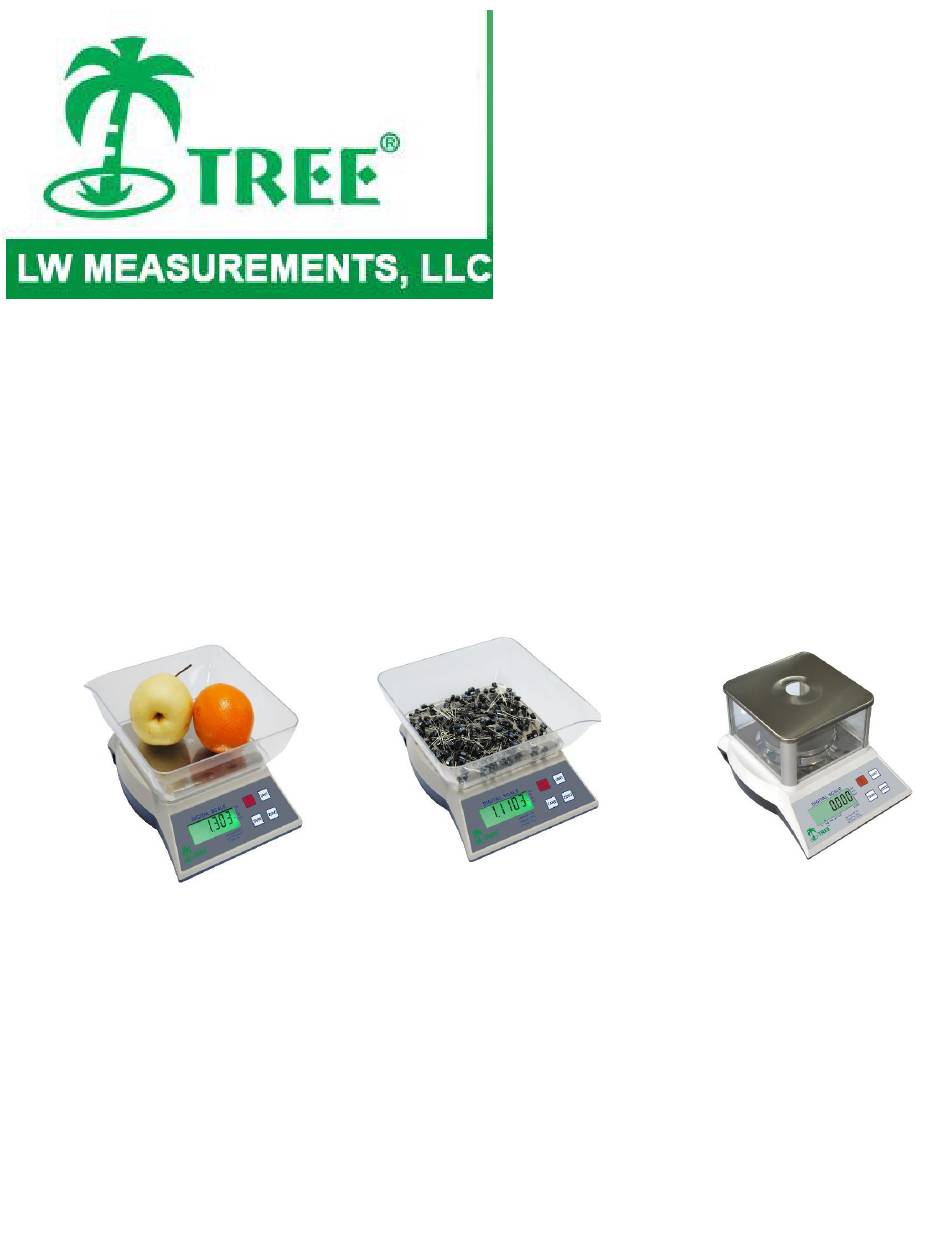

  • Page 1 Professional Weighing Equipment K-Series Scales Operation Manual KHR 6000 KHR 123 KHR 502 KHR 3001...
  • Page 2: Table Of Contents

    K-Series Scale Operation Manual Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Unit Conversion Scale Features Application & Conformity Technical Data Getting Started Delivery Parts Description 12-13 Assembly 13-14 Application & Functions 14-15 Calibration 16-17 Maintenance &...
  • Page 3: Declaration Of Conformity

    Declaration of conformity for apparatus with CE mark: We hereby declare that the product to which this declaration refers to conforms to the following standards. Electronic scale: K-Series Balances Imperial version Metric version KHR 6000 KHR 6000 KHR 502 KHR 502 KHR 3001 KHR 3001 KHR 123...
  • Page 4: Customer Service

    K-Series Scale Operation Manual Customer Service LW Measurements LLC, 3510 Industrial Drive, Unit H Santa Rosa, CA 95403 Tel: (707) 542-2185 Fax: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380...
  • Page 5: Introduction

    Introduction What you should know about this Operation Manual: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential of the weighing scale in your daily work activities.
  • Page 6: Safety

    K-Series Scale Operation Manual Safety Representations & Symbols Note: Important instructions, which involve safety, are highlighted with the appropriate mark: Safety Recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage.
  • Page 7: Weight Scale

    K-Series Scale Operation Manual Weight Scale Construction & Functions The Scale consist of certain parts;  Base  Plastic Platter  Stainless Steel Platter  Clear Plastic Bowl  A/C Adapter  Operation Manual Figure 2.1 weight scale Figure 2.2 Plastic platter Figure 2.3 Stainless steel platter Figure 2.4 Clear plastic bowl Figure 2.5 A/C adapter...
  • Page 8: Unit Conversion

    K-Series Scale Operation Manual Functions of the Scale The K Series is a high-quality electronic precision weight scale with the following specifications; Imperial weight unit version Model number Capacity Graduation Platter Size KHR 6001 6000 g 5.75 in x 5.75 in KHR 3001 3000 g 0.1 g...
  • Page 9 K-Series Scale Operation Manual Metric weight unit version Model number Capacity Graduation Platter Size KHR-6001 6000 g 14.5 x 14.5 cm KHR-3001 3000 g 0.1 g 14.5 x 14.5 cm KHR 502 500 g 0.01 g 14.5 x 14.5 cm KRH 123 120g 0.001g...
  • Page 10: Scale Features

    K-Series Scale Operation Manual Scale Features The Scale consist of the following features:  Auto shut off (optional)  Auto zero tracking  Low battery indication  1/2000 & 1/30000 division available  Large container weighing  Auto calibration  Large LCD ...
  • Page 11: Technical Data

    K-Series Scale Operation Manual Technical Data The following applies to the KMR series Power supply:  Input: The AC input requirement is 85V-265 V (50Hz to 60Hz AC (+/-15-20%);  Output: 9V DC 100mA Allowable ambient conditions Temperature: 0°C - 40°C, 32°F - 104°F Relative humidity: 25% - 85%, non-condensing If you have any questions on the technical data or require detailed technical information on your scale, please contact your technical representative.
  • Page 12: Delivery

    K-Series Scale Operation Manual Delivery Inspect delivery for completeness immediately on unpacking all components Checklist for complete delivery Component delivered present Component yes / no Weighing Machine Stainless Steel Platter Plastic Platter Plastic Bowl Power adapter Operating manual Parts Description LEFT SIDE AC adaptor socket Display...
  • Page 13: Assembly

    K-Series Scale Operation Manual BOTTOM Battery compartment cover (Batteries not included) Battery compartment Assembly & Installation The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence:  Place your machine on a level, clean, and dry surface to obtain accurate readings.
  • Page 14: Application & Functions

    K-Series Scale Operation Manual Placement of Scale The location in which the scale is placed is very important in order for the scale to work to its full potential. Certain conditions can affect the capabilities of the scale, conditions like: the presence of air flow, variations in temperature, and direct sunlight. Please follow the recommendations given below in choosing a location to place your scale.
  • Page 15 K-Series Scale Operation Manual Application Menu Display WEIGHING UNIT Zero Indicator Indicates when the scale zero is correct LOW BATTERY indicator Key Functions _______________________ ______________________  The ON/OFF key is to turn the Scale On or Off  The UNIT key is to toggle between different weight units. ...
  • Page 16: Calibration

    K-Series Scale Operation Manual Weighing Procedures  Press the “On/Off” key to turn on the scale.  Press the “Unit” key to select a unit of measure (kg, g, lb., oz, lb:oz).Once the unit has been selected, the selected unit will be displayed next to the weight value. ...
  • Page 17: Maintenance & Service

    K-Series Scale Operation Manual Maintenance & Service For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. Make sure that no liquid spills into the scale while performing maintenance work.
  • Page 18: Warranty & Returns

    K-Series Scale Operation Manual Replacing the batteries Replace all batteries at the same time. Do not replace only a portion of the six batteries as this may cause a malfunction. If the scale is not to be used for a long period of time, remove all batteries from the battery compartment to avoid leakage, which may cause damage.
