Summary of Contents for Tree MCT-3

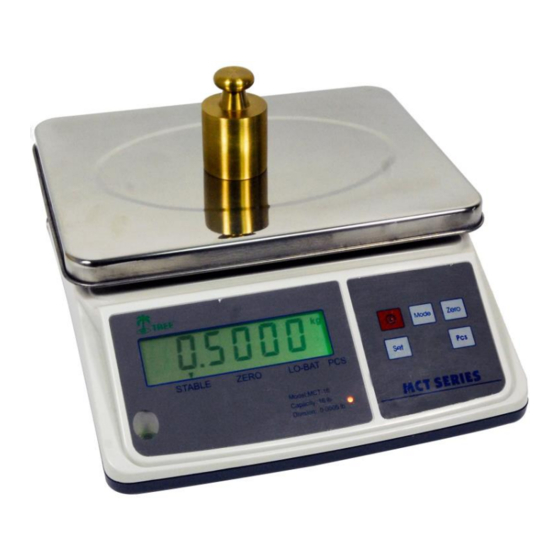

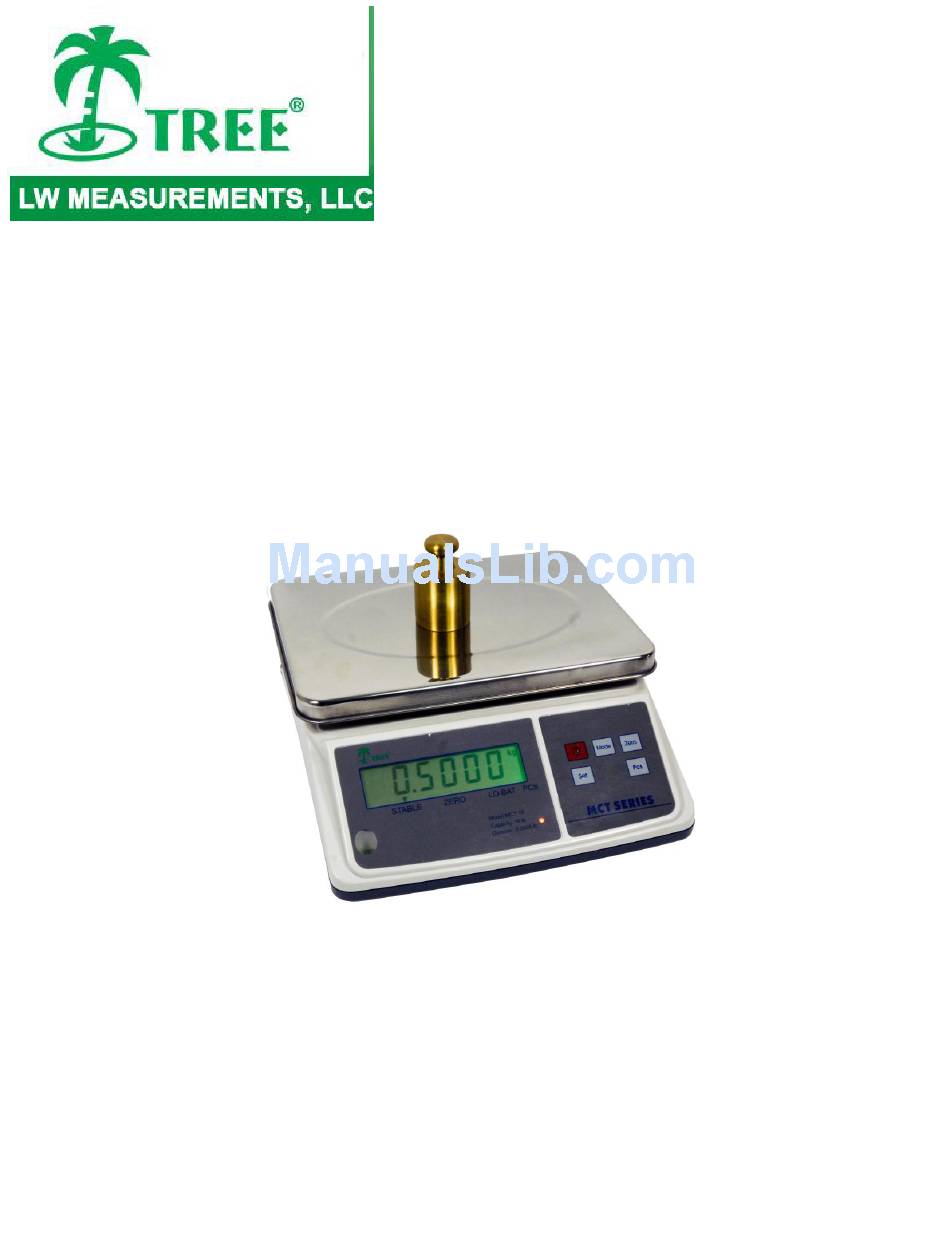

- Page 1 Professional Weighing Equipment MCT SERIES intelligent weighing scale MID COUNTING SCALE WITH CHECK-WEIGHING FUNCTION Operation Manual...
-
Page 2: Table Of Contents
MCT Operation Manual Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity Getting Started Delivery Assembly & Installation Application Menu Program Options Calibration 13-14 Maintenance & Service Transport & Storage Warranty Rev 3, 07.07.2016... -
Page 3: Declaration Of Conformity
Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: MCT Mid Counting Scales Imperial version Metric version MCT-3 MCT-1500 MCT-7 MCT-3000 MCT-16 MCT-7500... -
Page 4: Customer Service
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing scale in your daily work. -
Page 5: Safety
MCT Operation Manual Safety Representations & Symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 6: Weight Scale
MCT Operation Manual Weight Scale The weighing scale consist of certain parts Weighing scale body (1) The scale-pan (2) The adapter (3) Operation manual Figure 2.1 Your weighing scale Rev 3, 07.07.2016... -
Page 7: Functions
The MCT Series are high-quality electronic precision weighing scales designed to function as counting scales and check-weights with the following specifications. Imperial weight unit version Model number Capacity Division Weighing pan Size MCT-3 3 lb 0.0001 lb 185 x 255mm MCT-7 7 lb 0.0002 lb... -
Page 8: Features
MCT Operation Manual FEATURES Auto zero tracking Intelligent applications: weight unit conversion, parts counting Low battery indication Large bright backlit LCD Large heavy gauge stainless steel square pan Stability indication Auto calibration Selectable auto back light ... -
Page 9: Application & Conformity
MCT Operation Manual Leveling feet Battery compartment Hard switch (Rechargeable battery included) Battery compartment cover Application & Conformity The Following are instructions of how to correctly use the weight scale: The weighing scale may only be used for the weighing of solid-materials and of liquids filled into secure containers. -
Page 10: Getting Started
MCT Operation Manual Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 11: Assembly & Installation
MCT Operation Manual Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. Place the plastic platter on top of the scale, flat side facing up so the platter sits firmly on the machine with the four “legs”... -
Page 12: Application Menu
MCT Operation Manual Place the scale horizontally and keep the bubble inside the bubble level aligned with the circle (Fig.1). In order to get exact measurements, the balance must be carefully leveled after each re-location. Fig. 1 Correct leveling with the aid of the bubble level and adjusting feet. Application Menu Display messages ... -
Page 13: Program Options
MCT Operation Manual PCS key for pieces counting function Program Options Pieces counting Press the On/Off key to turn on the scale Wait for "0" to appear on the display. If necessary, press “Zero” key to set the display to “0” ... -
Page 14: Maintenance & Service
MCT Operation Manual Press “Set” key, display will show “CAP”, press “Set” key again, display will show “CALu=”, press “Mode” key to choose the calibration unit kg. or lb. Press “Set” key to confirm and the display will show “CALu=” again ... -
Page 15: Warranty
MCT Operation Manual Your weighing machine is a precision instrument, treat it carefully. Avoid shaking, severe impacts and vibration during the transportation. Make sure that there are no marked temperature fluctuations during the transportation and that the weighing machine does not become damp (condensation). If you would like to take the weighing machine out of service for an extended period, disconnect it from the electricity supply, clean it thoroughly (refer to Maintenance &...
