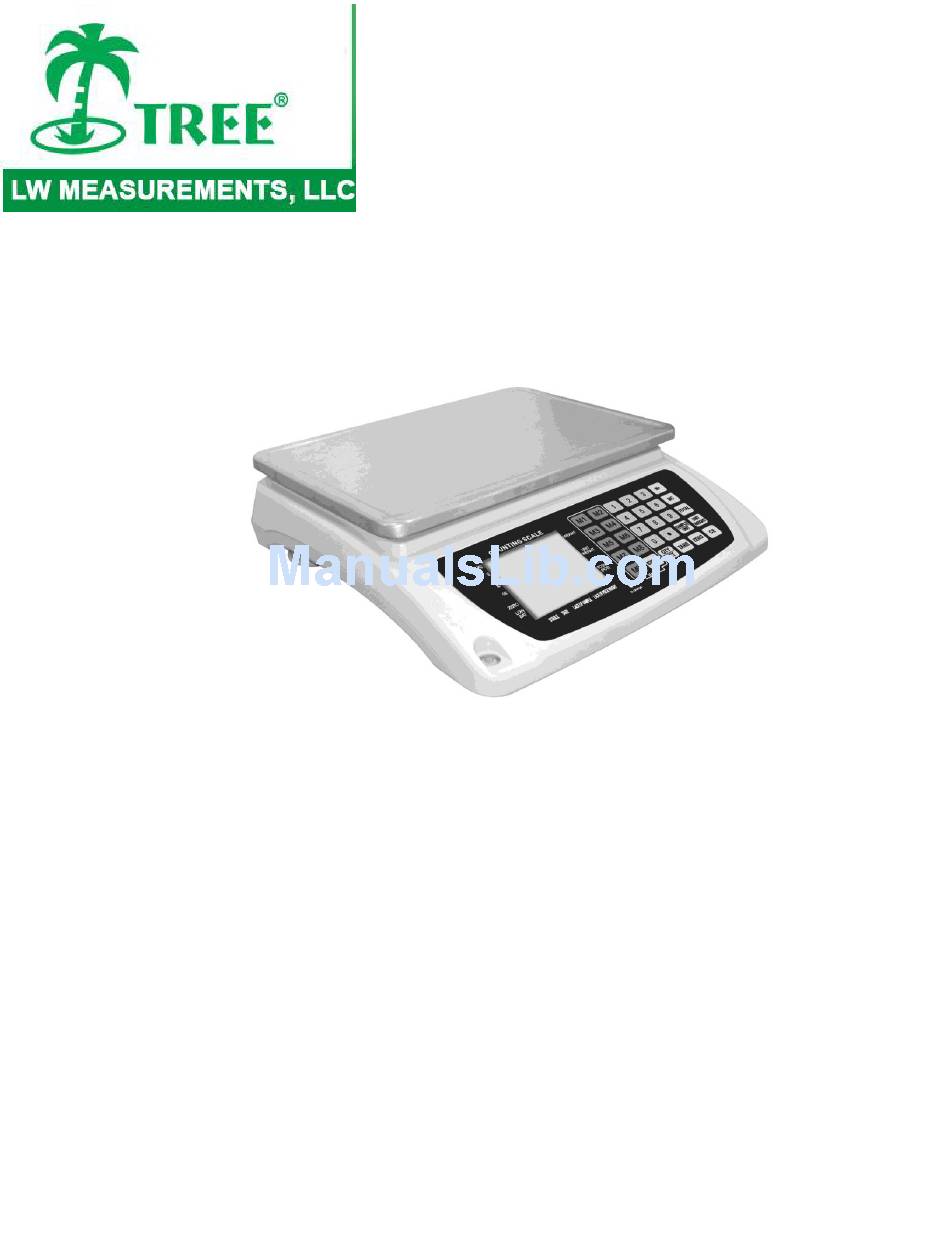

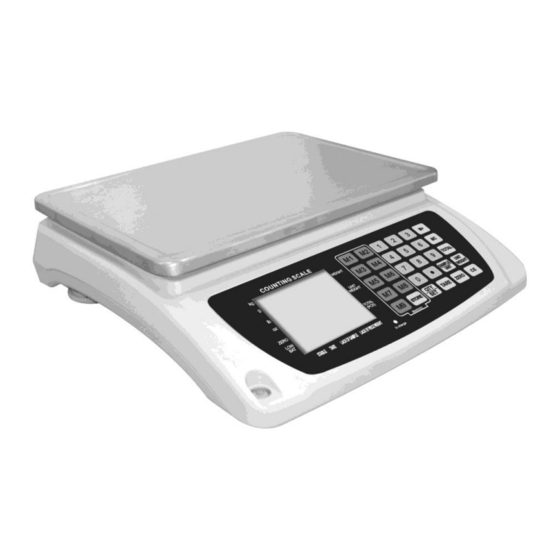

- Page 1 Professional Weighing Equipment LCT SERIES intelligent weighing scale LARGE COUNTING SCALE WITH CHECK-WEIGHING FUNCTION Operation Manual...
-
Page 2: Table Of Contents
LCT SERIES Operation Manual Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Weight Scale Functions Features Application & Conformity Getting Started Delivery Assembly & Installation 12-13 Application Menu 13-14 Program Options 14-16 Calibration Maintenance & Service Transportation &... -
Page 3: Declaration Of Conformity
Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: LCT Large Counting Scales Models: Imperial version Metric version LCT3 LCT 1500 LCT7 LCT 3000 LCT16 LCT 7500 LCT33... -
Page 4: Customer Service
LCT SERIES Operation Manual Customer Service LW Measurements LLC, 620 Carlson Court Rohnert Park, CA 94928 Tel: (707) 542-2185 Fax: (707) 542-3285 http://lwmeasurements.com EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 http://lwmeasurements.com... -
Page 5: Introduction
Introduction What you should know about this Operation Manual: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential of the weighing scale in your daily work activities. -
Page 6: Safety
LCT SERIES Operation Manual Safety Representations & Symbols Note: Important instructions, which involve safety, are highlighted with the appropriate mark Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing scale may only be used with the power adapter supplied. Before connecting the power adapter to the scale, the user must ensure that the operating voltage stated on the power adapter is compliant with the mains voltage. -
Page 7: Weight Scale
LCT SERIES Operation Manual Weight Scale Construction & Functions The weighing scale consists of the following parts; The scale body The scale-pan The adapter Operating manual. Figure 1 Scale body & pan Figure 2 power adapter Rev 3, 5.30.17... -
Page 8: Functions
LCT SERIES Operation Manual Functions The LCT Series are high-quality electronic precision weight scales designed to function as counting scales and check-weights with the following specifications. Imperial weight unit version Model number Capacity Graduation Weighing pan Size LCT 3 3 lb. 0.0001lb 227x337mm LCT 7... -
Page 9: Features
LCT SERIES Operation Manual Features Auto zero tracking Intelligent applications:, parts counting, high / low check-weighing Low battery indication Large bright backlit LCD Large heavy gauge stainless steel square pan Stability indication Auto calibration ... -
Page 10: Application & Conformity
LCT SERIES Operation Manual Main power connection Application & Conformity The Following are instructions of how to correctly use the weight scale: The weighing scale may only be used for the weighing of solid-materials and of liquids filled into secure containers. The maximum capacity load of the weighing scale must never be exceeded, otherwise the weighing scale may be damaged. -
Page 11: Getting Started
LCT SERIES Operation Manual Getting Started The scale is packaged in an environmentally-friendly carton, which provides optimum protection for the balance during transportation. We suggest that you keep the original packaging in order to avoid damage if you are shipping or transporting the scale to a different location. It is also the best way to keep it in the best conditions if it will not be used for an extended period of time. -
Page 12: Assembly & Installation
LCT SERIES Operation Manual Assembly & Installation The weighing scale is delivered in a partly dismantled condition. Assemble the individual components in the following sequence: Place your machine on a level, clean, and dry surface to obtain accurate readings. ... -
Page 13: Application Menu
LCT SERIES Operation Manual The balance is fitted with one bubble level, and adjustable feet for level-control that allow for small height differences or any unevenness in the surface on which the balance is placed. The screw feet must be adjusted so that the air bubble is precisely in the center of the sight glass of the bubble level (see Fig. -
Page 14: Program Options
LCT SERIES Operation Manual Key Functions: The “Zero” key function allows the subtraction of multiple container values through the weight range and is used to set or re-adjust to zero. The “Tare” key function allows the user to subtract the container value and will also set the scale at zero. - Page 15 LCT SERIES Operation Manual Press “CE” key to clear any previous setting, or to cancel the previous unit weight and sample setting. Select your unit of measure (kg. or lb.), to choose between these measures press the “sample unit” key. ...
- Page 16 LCT SERIES Operation Manual Press “Qty. Set” key, check that the display shows “CH-ON”. (To change from on or off, press the “Zero” button.) Once the CH-On is displayed, set the lower count to the desired quantity using the number key.
-
Page 17: Calibration
LCT SERIES Operation Manual Using an External Calibration Weight: Calibration is required when the weighing scale is initially installed or if the scale is moved to a substantial distance from the original location. Single segment calibration (recommended): Press the “Zero” button and turn the scale back on simultaneously. ... -
Page 18: Transportation & Storage
LCT SERIES Operation Manual For maintenance-work, the balance must be disconnected from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be connected to the power supply during the work by a third party. Make sure that no liquid spills into the scale while performing maintenance work. - Page 19 LCT SERIES Operation Manual The products are under warranty against factory defects for a period of two (2) years from the date of shipment. For Customers within the lower 48 states of the continental United States. LW Measurements will pay for fright both ways for the first 30 days after purchase. After 30 days expire the customer is responsible for shipping the product back to us.
