REMOUNTING THE WHEEL

Mounting the wheel is done in the reverse order of dismounting. If necessary,
insert the brake discs between the brake pads. Make sure the wheel is correctly
seated in the drop-outs and accurately centred between the fork legs or the
seat and chainstays. Make sure the quick-release and the drop-out safety tabs
are correctly seated. For more information see the chapter "Using quick-releas-
es and thru axles".

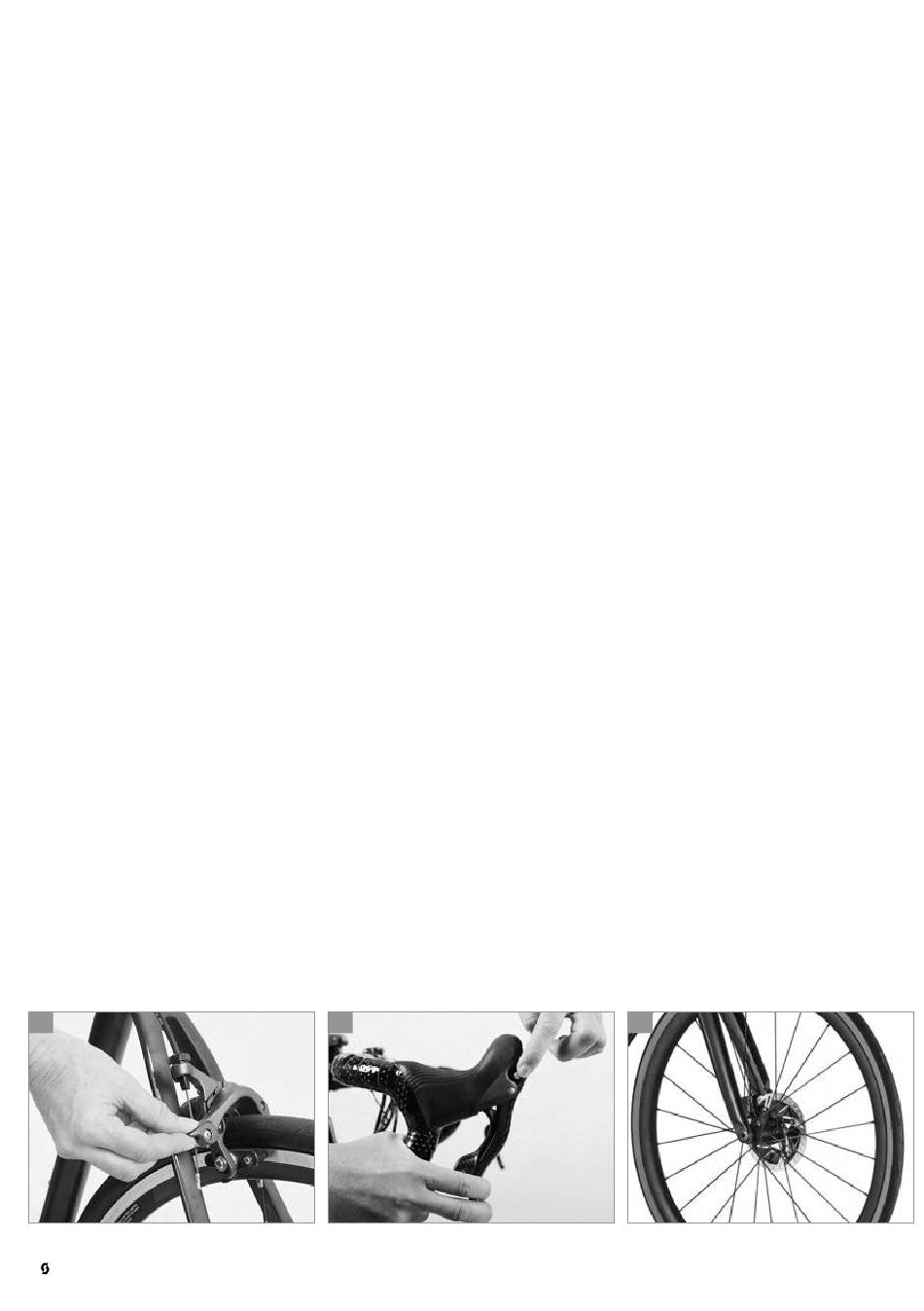

Close the quick-release lever at the brake (Shimano, SRAM) (a) or shift the pin
in the brake lever/shifter unit on the handlebars (Campagnolo) (b).
If you have disc brakes (c), check before mounting the wheel whether the brake
pads rest snugly in their seats in the brake calliper body. The gaps between the
brake pads and the wheel should be parallel and the wear indicators in their cor-
rect position. Make sure you guide the rotor carefully between the brake pads.
After mounting the wheel and tightening the quick-release pull the brake lever
(several times, if you have disc brakes).
All brakes:
After mounting the wheel and tightening the quick-release pull the brake lever
(d) (several times, if you have disc brakes).
Lift your SCOTT bike off the ground and spin the wheel with your hand. With
the wheel spinning the rotor should not drag along the brake calliper or the
brake pads and the rim should keep off the (rim) brake pads.
a b c
