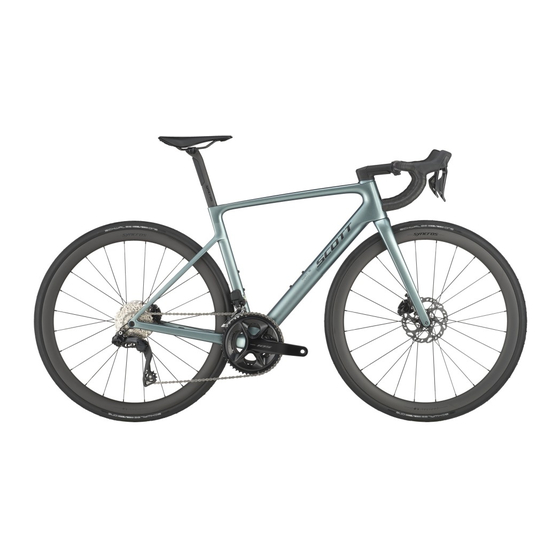

Summary of Contents for Scott ADDICT RC 2025
- Page 1 2 0 2 5 S C O T T A D D I C T R C M A N U A L 2025 ADDICT RC | ENGLISH 1 |...
- Page 2 ADDICT RC CONTENT THE ADDICT RC SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND RIDEABILITY. Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm. GEOMETRY & TECHNICAL DATA ROTOR SIZE...
- Page 3 ADDICT RC GEOMETRY & TECHNICAL DATA SEATPOST FRONT AXLE Addict RC specific 12 x 100 SEATPOST CLAMP MAX TYRE WIDTH Addict RC specific FORK STEERER BB HOUSING 1 1/14 - 27.2mm 41 x 86.5 HEADSET MAX ROTOR FRONT IS44/35 - IS52/42 160 / 180 REAR AXLE 12 x 142...
- Page 4 ADDICT RC ADDICT RC ROTOR SIZE (illustration only) Fork bra ke rotor min . 1 6 0 m m S hima no a da ptor Y 8 N 2 3 0 0 0 0 (p u r p l e ill u s trati o n) F o r k b r a k e r o t o r M a x .
- Page 5 ADDICT RC ADDICT RC SEATPOST CLAMP (illustration only) The clamp is one piece and will only be available as a complete unit (spare part section). The profile will incorporate a non slip profile to stop the clamp from sliding down inside the seat tube after the seatpost has been installed.
- Page 6 ADDICT RC ADDICT RC FORK BRAKE CABLE ROUTING (illustration only) Place the rubber grommet into the Place the lower headset bearing into cable entry hole on the left fork leg. position, grease. Tape the brake cable Install the bottom headset bearing on to the steerer shaft by wrapping it the fork steerer.
- Page 7 ADDICT RC ADDICT RC REAR BRAKE CABLE ROUTING (illustration only) Place the rubber grommet into the cable entry hole on the left chain stay. Route the rear brake cable (blue) through the chainstay and over and past the bottom bracket. Install a foam protection tube over the rear brake cable inside the frame (do not overlap the foam into the headtube area).
- Page 8 ADDICT RC ADDICT RC COMBO HANDLEBAR CABLE ROUTING (illustration only) 4 Nm T 25 The combo handlebar cable routing will follow the same format as the normal stem and handlebar just without the cable cover. The routing stays the same internally. Steerer clamp.
- Page 9 ADDICT RC ADDICT RC SHIMANO Di2 CABLE ROUTING (illustration only) Fix the rubber battery holder to the Connect the front derailleur cable Di2 battery. Insert the battery into the to one of the outside cable ports of seat post together with the rubber the battery.
- Page 10 ADDICT RC ADDICT RC SHIMANO Di2 CABLE ROUTING (illustration only) Exit the right chain stay through the Route the cable into the right chain gap below the rear derailleur hanger. stay. Route the cable through the hole in The cable shall pass the bottom the rear derailleur hanger and fix it bracket area on top of the bottom to the rear derailleur with the plastic...
- Page 11 ADDICT RC ADDICT RC GENERAL SPARE PARTS (illustration only) 2 Nm 424165 SCO DROPOUT ADDICT RC DIRECT 25 T 20 2 Nm 2 Nm 424166 SCO DROPOUT ADDICT RC STANDARD 25 T 20 2 Nm 424161 SCO AXLE ADDICT RC R 25 12 Nm 424160 SCO AXLE ADDICT RC F 25 12 Nm...
- Page 12 ADDICT RC ADDICT RC GENERAL SPARE PARTS (illustration only) 424156 SCO HEADSET EXPANDER ADDICT RC 25 8 Nm 424154 SCO STEM SPACER/TOP CAP KIT ADDICT RC 25 424155 SCO HEADSET TOP CAP ADDICT RC ULT 25 424400 SCO HEADSET TOP CAP ADDICT RC 20/30 BLK 25 424401 SCO HEADSET TOP CAP ADDICT RC 30 Grey 25 424396 SCO HEADSET TOP CAP ADDICT RC 10 YEL 25 424399 SCO HEADSET TOP CAP ADDICT RC 20 Pink 25...
- Page 13 ADDICT RC ADDICT RC GENERAL SPARE PARTS (illustration only) 424164 SCO CABLE GUIDE KIT ADDICT RC 25 424157 SCO STEM HARDWARE KIT CRESTON IC SL 25 T 25 4 Nm 424153 SCO STEM CABLE COVER ADDICT RC 25 2 Nm 423441 SYN STEM ST-R100-AL (handlebar clamp and steerer clamp torque) 5 Nm...
- Page 14 ADDICT RC ADDICT RC GENERAL SPARE PARTS (illustration only) 423444 SYN S.POST SP-R101-CF 0MM OFF 423440 SYN HANDLEBAR HB-R100-AL 423439 SYN HANDLEBAR HB-R100-CF 423437 SYN COCKPIT IC-R100-SL 420MM 423436 SYN COCKPIT IC-R100-SL 400MM 2025 ADDICT RC | ENGLISH 14 |...
- Page 15 ADDICT RC ADDICT RC GENERAL SPARE PARTS (illustration only) 423435 SYN COCKPIT IC-R100-SL 380MM 423434 SYN COCKPIT IC-R100-SL 360MM 423432 SYN REAR LIGHT CAMPBELL 20 D IL 2025 ADDICT RC | ENGLISH 15 |...
- Page 16 SCOTT, the duration of the manufacturer’s guarantee is limited to two years. If a defect on the SCOTT bicycle is remedied within the scope of a manufacturer’s guarantee or a warranty claim, the duration of the manufacturer’s guarantee is not extended. The manufacturer’s guarantee ends, when the first-time buyer transfers ownership of the SCOTT bicycle to a third person.
- Page 17 À DÉPOSER À DÉPOSER EN MAGASIN EN DÉCHÈTERIE 2025 ADDICT RC | ENGLISH 17 |...
