Technical Specifications; Environmental Conditions; Regulatory Compliance; Weights - Altronix Pace1PRD Installation Manual

Parameter
Connections
Input Power
Requirements
Indicators
Environmental
Conditions
Regulatory
Compliance
Weights (approx.) Product: 3.88 oz. (0.11 kg.) | Shipping: 6.70 oz. (0.19 kg.)

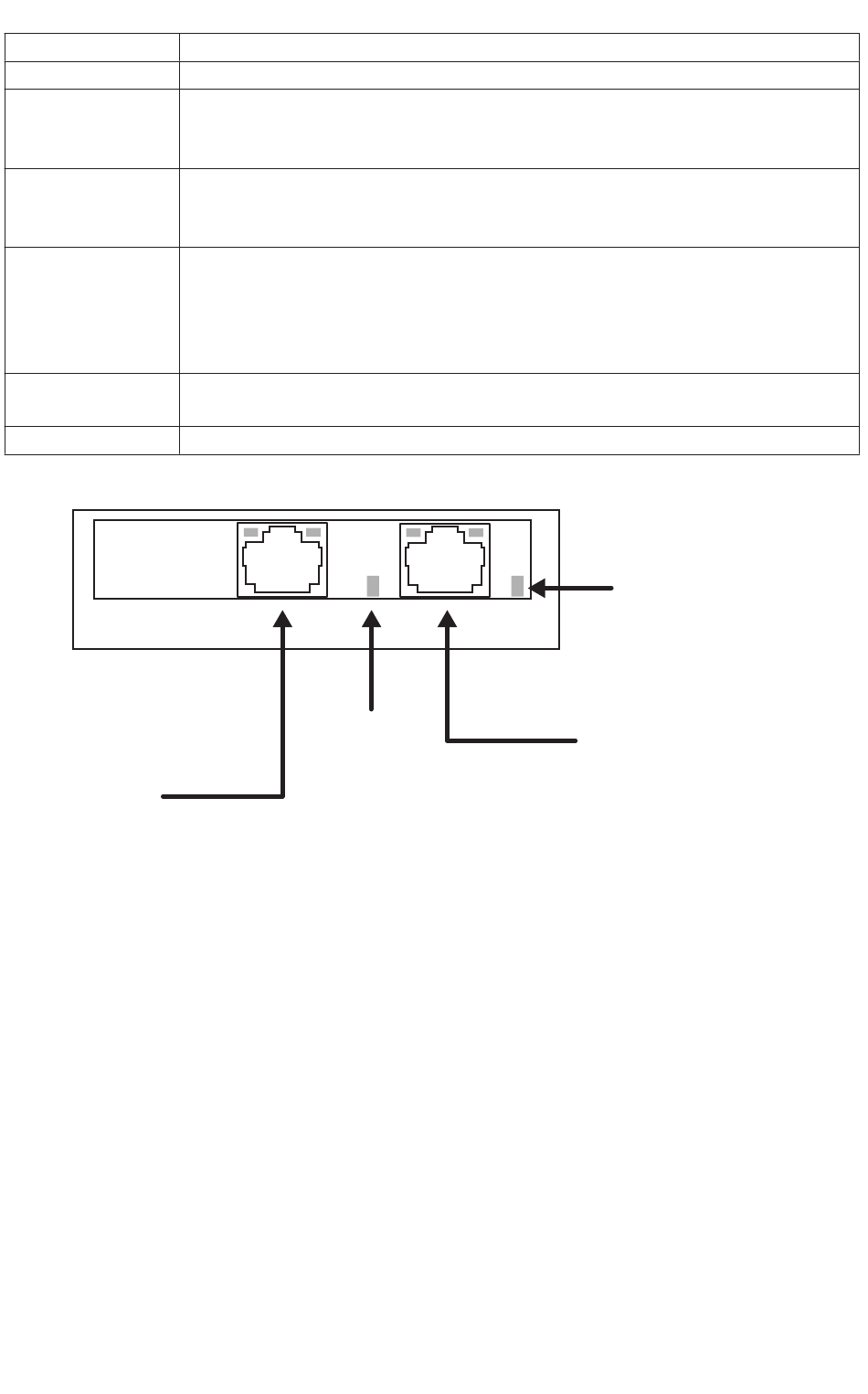

Fig. 1
CAT5e or
higher from
eBridge200WPM
*Note: Caution: once Hi-PoE connection is established between Pace1PRD and eBridge200WPM,
disconnection from eBridge200WPM will not disable the Hi-PoE output voltage on the Pace1PRD,
although the eBridge200WPM can be reconnected, caution should be taken not to connect the
CAT5e wiring from Pace1PRD to any non-PoE device.
- 2 -

Technical Specifications:

Description
RJ45 for ethernet link.
60W from Midspan or endspan port connected.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W), Hi-PoE (60W)
Yellow (RJ45 connector):
Green (RJ45 connector):
Green:
Operating Ambient Temperature (UL60950-1):
Relative humidity:
Storage Temperature:
Operating Altitude:
UL/cUL Listed for Information Technology Equipment (UL 60950-1).
CE European Conformity.
Pace1PRD
Green LED
indicates
Hi-PoE being
transmitted to
eBridge200WPM
On - Link, Off - No Link, Blinking - Activity.
On - 100Base-TX, Off - 10Base-T.
PoE Active.
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
20 to 85%, non-condensing.
– 30ºC to 70ºC (– 22ºF to 158ºF).
– 304.8 to 2,000m.
Hi-PoE Present
from Midspan/
Structured
Cable to
NetWay1D
Midspan
Injector
Green LED
indicates
Endspan
Pace1PRD
