Long Distance Ethernet Solution
PacePRM Series
Long Range Ethernet Receivers
Models Include:

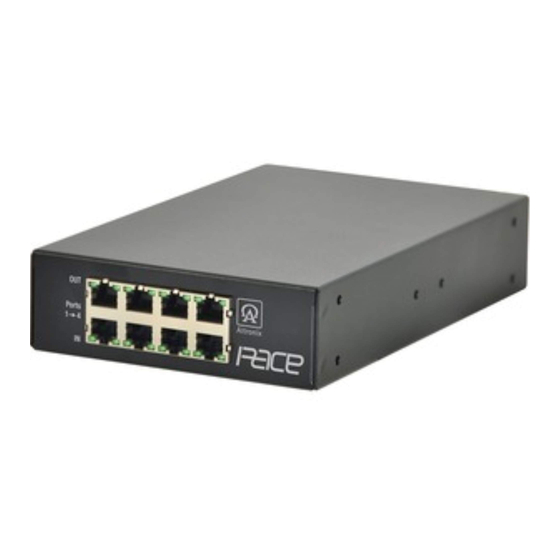

Pace4PRM
- Four (4) Channel Receiver
Pace8PRM
- Eight (8) Channel Receiver
Pace16PRM
- Sixteen (16) Channel Receiver
Installation Guide
I.T.E. 43KC
Rev. 072914
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Z1409
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix PacePRM Series
Summary of Contents for Altronix PacePRM Series
- Page 1 Long Distance Ethernet Solution PacePRM Series Long Range Ethernet Receivers Models Include: Pace4PRM - Four (4) Channel Receiver Pace8PRM - Eight (8) Channel Receiver Pace16PRM - Sixteen (16) Channel Receiver Installation Guide Z1409 I.T.E. 43KC More than just power. Rev. 072914 Installing Company: _______________ Service Rep.
-
Page 2: Installation Instructions
PoE(+) compliant format. Pace4/8/16PRM receivers are powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. - Page 3 1. Pace4/8/16PRM installation: a. Pace4PRM - Affix rubber pads to Pace4PRM for shelf installation (Fig. 5, pg. 6) . Pace8/16PRM - Attach mounting brackets to Pace8/16PRM unit for rack installation (Fig. 4, pg. 6) . Affix rubber pads to Pace8/16PRM for shelf installation (Fig. 5, pg. 6) . Unit should be located in proximity to ethernet switch/network, NVR or video server.
- Page 4 Multiple PoE Camera Connection: Pace8PRM shown. Pace16PRM is similar, with twice as many channels. Fig. 3 PoE compliant 500m max. Pace1PTM 100m max. PoE Camera PoE compliant 500m max. Pace1PTM 100m max. PoE Camera PoE compliant 500m max. Pace1PTM 100m max. PoE Camera PoE compliant 500m max.
-
Page 5: Technical Specifications
Technical Specifications: Parameter Description Connections RJ45 for ethernet link. Input Power UL Listed power-limited midspan or endspan port connected. Requirements Pace4/8/16PRM: Green and Yellow LED (RJ45) IP Link status, 100Base-T/active. Pace1PTM: Green PoE Active. Yellow (RJ45 Connector) On - Link, Off - No Link, Blinking - Activity Indicators Green (RJ45 Connector) On - 100Base-TX, Off 10Base-T... -
Page 6: Mounting Options
Mounting Options: Rack Mount Installation (Pace8PRM and Pace16PRM) 1- Remove and discard factory installed screws from both sides of rack chassis (Fig. 4a) . 2- Install mounting brackets (A) on the left and right side of rack chassis using the four (4) flat head screws (B) (included) (Fig. - Page 7 Enclosure Dimensions (H x W x D approximate): 1.7” x 5.25” x 8.42” (43.8mm x 133.35mm x 213.9mm) Pace4PRM 5.25” (133.35mm) 1.7” Ports (43.8mm) Pace4/8/16PRM Installation Guide - 7 -...
- Page 8 Ports Ports 19.125" (486mm) 0.75" (19.05mm) 17.625" (447.7mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER...
