Altronix Pace1PRM Installation Manual

Pace1PRM is a long range Ethernet receiver which transmits data at 100Mbps full duplex and power via a single
twisted pair (UTP) or CAT5e or higher cable in a PoE(+) compliant format. Pace1PRM receiver is powered via a
PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant
power over the cable to the Pace1PTM or Pace1ST transceiver which, in turn, passes this power to an enabled IP
camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need to be installed
at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP
devices over single twisted pair (UTP) or structured cable.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
• C-Tick compliant.
Input:
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or 1 pair UTP
structured cable.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af (15W)
and PoE+ compliant to IEEE 802.3at (30W)
delivered to camera by Pace1PTM or Pace1ST.
Power provided by Pace1PRM to Pace1PTM or
Pace1ST by PoE protocol.*
• Throughput is rated to pass 100Mbps of data at
distances up to 500m. With proper headend
equipment, this supports Megapixel, HD720, HD1080.
CAT5e or Higher:
• Distance: up to 500m @ 100Mbps
(see Maximum Length of CAT5e Type or
UTP vs. Camera Power/PoE Class, pg. 4).
UTP (Single Pair):
• Distance: up to 153m @ 100Mbps,
up to 500m @ 10Mbps
(see Maximum Length of CAT5e Type or
UTP vs. Camera Power/PoE Class, pg. 4).
* See note on Page 3.

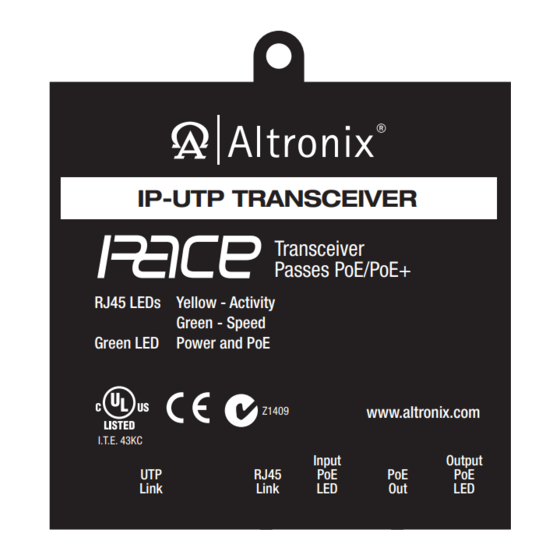

Pace1PRM
IP and PoE+ Receiver
Over Extended Distance
UTP or CAT5e
Installation Guide
Overview:
Features:
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED IP Link status,
Environmental:
• Operating Temperature:
• Storage Temperature:
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
Applications:
• Extend Network link distance in an industrial
• Retrofit digital IP cameras in an analog
• Works with Megapixel, HD720, HD1080,
Mechanical:
• Dimensions (W x L x H approx.):
10/100Base-T/active.
Pace1PRM:
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
Pace1PTM:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 25W: – 40ºC to 70ºC (– 40ºF to 158ºF).
For 30W: – 40ºC to 60ºC (– 40ºF to 140ºF).
Pace1ST:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 30W: – 40ºC to 49ºC (– 40ºF to 120ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
non-PoE cameras/devices.
environment over 700m.
CCTV CAT5e wired installations.
and VGA (SD) cameras.
Pace1PRM:
3.5" x 3.5" x 1" (88.9mm x 88.9mm x 25.4mm).
I.T.E. 43KC
Z1409
