Altronix Pace1PRD Installation Manual

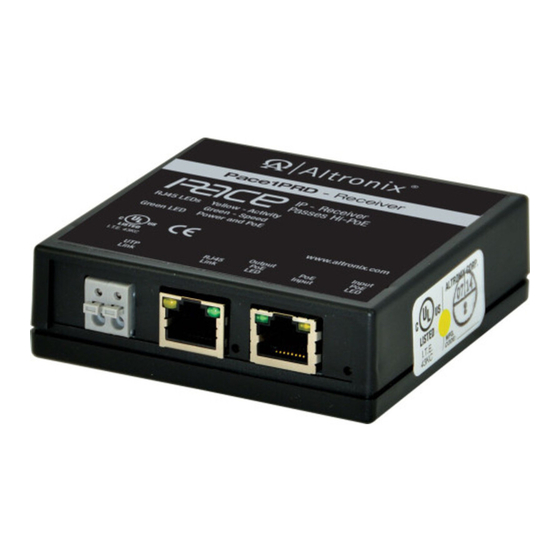

Pace1PRD is a long range Ethernet receiver which transmits data at 100Mbps full duplex and power via a CAT5e
or higher cable. The Pace1PRD receiver is powered via Altronix NetWay1D midspan injector. The receiver passes
the Hi-PoE (60W) power over the cable to the eBridge200WPM transceiver which, in turn, passes this power to
an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices that need
to be installed at distances greater than 100m.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
Input:
• Powered by NetWay1D (60W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 structured cable.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex,
auto negotiation.
• Throughput is rated to pass 100Mbps of
data at distances up to 500m.
With proper headend equipment this
supports Megapixel, HD720, HD1080.
CAT5e or Higher:
• Distance: up to 500m @ 100Mbps
(see Cable Type, Total Device Power,
Data and Power Distance, pg. 3).
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes
and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire suitable for the application.
Pace1PRD is intended for indoor use only.
1. Pace1PRD Installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the unit's mounting hole
(Fig. 2a, pg. 3). Unit should be mounted in proximity to ethernet switch/network, NVR or video server.
b. Connect structured cable from NetWay1D to RJ45 jack marked [PoE Input] (Fig. 2, pg. 3).
c. CAT5e or higher: Connect CAT5e or higher cable to connector marked [RJ45 Link] (Fig. 2, pg. 3).
2. eBridge200WPM Connections:
a. Connect CAT5e from Pace1PRD (60W) to connector marked [CAT INPUT] (Fig. 2, pg. 3)
b. Select input power SW3 on switch marked [60W CAT, 30W CAT or 60W COAX] (Fig. 2, pg. 3).
c. Connect structured cable from one (1) 60W camera/device to RJ45 jack marked [Port 1] or connect two (2)
individual structured cables from two (2) 30W cameras/devices to RJ45 jacks marked [Port 1] & [Port 2]
(Fig. 2, pg. 3).
Pace1PRD
IP and Hi-PoE Receiver
over extended distance
CAT5e
Installation Guide
Overview:
Features:
Installation Instructions:
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED IP Link status,
10/100Base-T/active.
Environmental:
• Operating Temperature:
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
• Storage Temperature:
– 30ºC to 70ºC (– 22ºF to 158ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Extend Network link distance in an
industrial environment (see note, pg. 2).
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 2).
Mechanical:
• Dimensions (W x L x H approx.):
3.5" x 3.5" x 1"
(88.9mm x 88.9mm x 25.4mm).
I.T.E. 43KC
