Altronix Pace1PRMT Installation Manual

Pace1PRMT
IP and PoE+ Over Extended Distance UTP or CAT5e
Pace1PRM Receiver and Pace1PTM Transceiver kit
Pace1PRMT is a long range Ethernet adapter kit which transmits data at 100mbps full duplex and
power via a single twisted pair (UTP) or Cat5e or higher cable in a PoE(+) compliant format. The

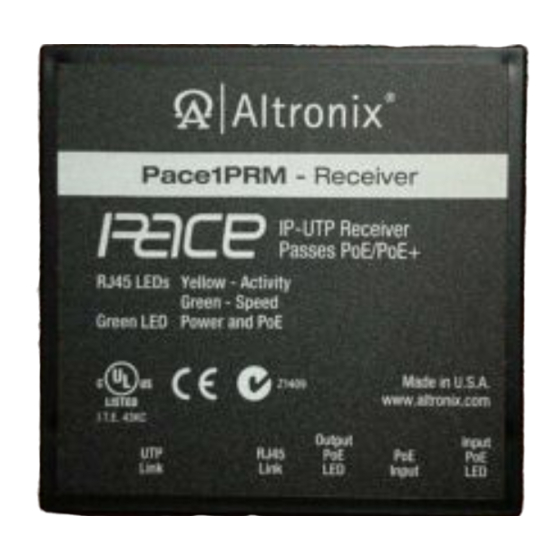

Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an
endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM trans-
ceiver which in turn passes this power to an enabled IP camera/device. These plug and play units
facilitate cost effective solutions for IP devices that need to be installed at distances greater than
100m. They also provide a simple way to replace legacy analog products with new IP devices over
single twisted pair (UTP) or structured cable.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Input (Pace1PRM):
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or 1 pair UTP
structured cable.
• Distance: up to 500m (1,640 ft.).
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af
(15W) and PoE+ compliant to IEEE 802.3at
(30W) delivered to camera by Pace1PTM.
Power provided by Pace1PRM to Pace1PTM
by PoE protocol.*
• Throughput is rated to pass 100mbps of
data at distances up to 500m with
proper headend equipment, this supports
Megapixel, HD720, HD1080.
CAT5e or higher:
• Distance: up to 500m @ 100mbps
(see Maximum Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
UTP (single pair):
• Distance: up to
152m
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4).
* See note on page 3.
Pace1PRMT
Overview:
@ 100mbps
Installation Guide
Features:
LED Indicators:
• Pace1PRM/Pace1PTM:
Green - PoE ON (by respective RJ45 jack).
• Pace1PRM and Pace1PTM (RJ45 jack):
Yellow and Green LED IP Link status,
10/100Base-T/active.
Environmental:
• Operating Temperature
Pace1PRM/ Pace1PTM:
-- 20ºC to +49ºC (-- 4ºF to 120.2ºF).
• Storage Temperature:
-- 30º to +70ºC (-- 22º to 158ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Extend Network link distance in an
industrial environment over 700m
(see note, pg. 2).
• Retrofit digital IP cameras in an analog
CCTV CAT5e wired installations.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 3).
Mechanical:
• Dimensions (W x L x H approx.):
Pace1PRM/Pace1PTM:
3.5" x 3.5" x 1"
(88.89mm x 88.89mm x 25.4mm).
Rev. 111413
I.T.E. 43KC
Z1409
