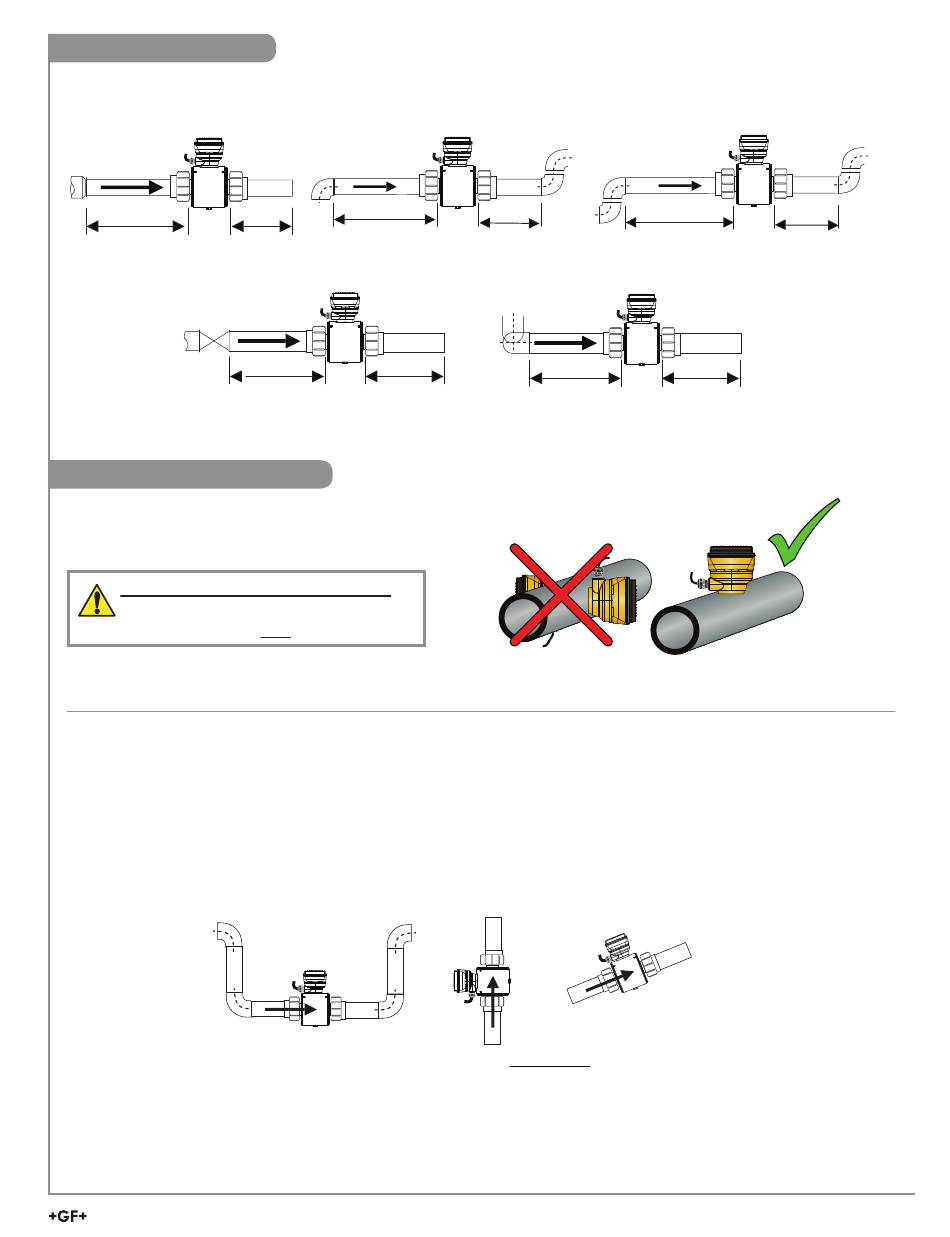

Sensor Location

The 2580 FlowtraMag requires a minimum of 3x ID upstream and 2 x ID downstream of the sensor for best performance.
Reducer
3 x I.D.
Pump/Valve

Sensor Mounting Angle

Horizontal Pipe Runs
GF recommends installing the sensor electronics at the
Reducer
12 o'clock position.
DO NOT HANDLE BY THE SENSOR!
3 x I.D.
2 x I.D.
Always handle FlowtraMag Meters by the
union nuts or flanges, NOT the sensor head.
Pump/Valve
Vertical Pipe Runs
To ensure pipe is flowing full with some back pressure, it is highly recommended that the fluid flows upward.
3 x I.D.
Gravity and Discharge Lines
It is recommended to install a u-trap to ensure the pipe remains full at all times, and to minimize air bubbles.
A vacuum breaker may be required downstream of the FlowtraMag to ensure pipe doesn't drain and fill with air.
90° Elbow
3 x I.D.
2 x I.D.
3 x I.D. 2 x I.D.
Recommended
90° Elbow
3 x I.D.
2 x I.D.
Recommended
2 x 90° Elbow
2 x I.D.
2 x 90° Elbow
3 dimensions
3 x I.D.
OK OK
Vertical flow is OK IF the
pipe remains FULL
2 x I.D.
at all times.
2 x 90° Elbow
3 dimensions
3 x I.D.
OK OK
Vertical flow is OK IF the
pipe remains FULL
at all times.
3 x I.D. 2 x I.D.
2 x I.D.
2 x 90° Elbow
3 x I.D.
2 x I.D.
Signet 2580 FlowtraMag Meter
2 x I.D.
