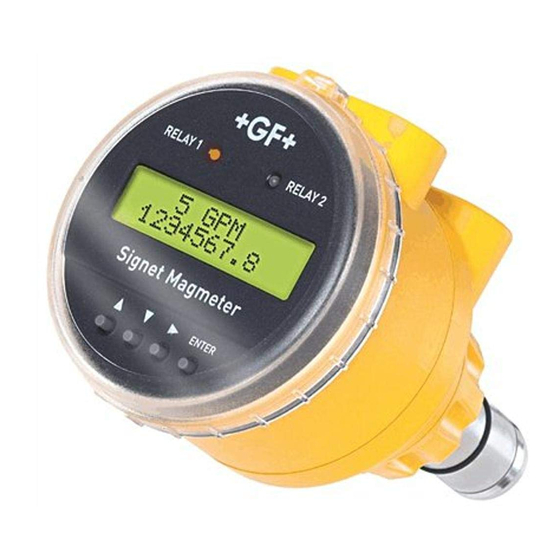

Signet 2551 Magmeter
*3-2551.090-1*
3-2551.090-1
Rev. G 10/08
SAFETY INSTRUCTIONS
1.
Depressurize and vent system prior to installation or removal.
2.
Confi rm chemical compatibility before use.
3.
Do not exceed maximum temperature/pressure specifi cations.
4.
Wear safety goggles or faceshield during installation/service.
5.
Do not alter product construction.

1.0 Description

The 2551 Magmeter measures the fl ow rate in a full pipe by monitoring the voltage produced when the (conductive) fl uid moves through
a magnetic fi eld.
Output options include a traditional frequency signal, a serial data (digital) output, and a 4-20 mA output.
The 2551 Magmeter is available in three sizes that will accommodate pipes from ½ inch through 12 inch diameters.
Select from four different material combinations to match the magmeter to the application requirements.
Contents

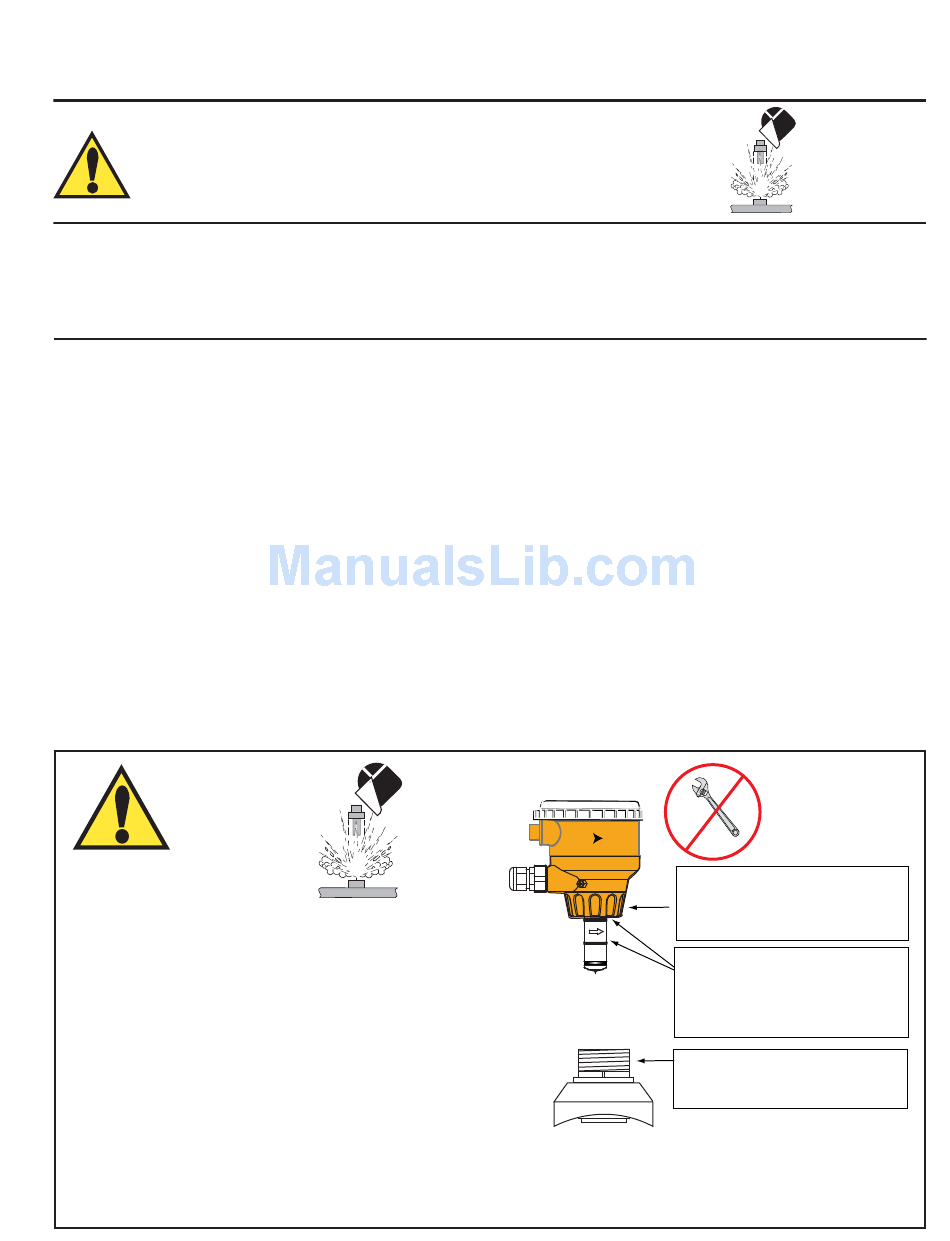

WARNING!
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT
IN THE SENSOR BEING EJECTED FROM THE PIPE!
•
DO NOT USE ANY TOOLS ON THE RETAINING CAP.
HAND TIGHTEN ONLY.
•
THE O-RINGS CAN BE LIGHTLY LUBRICATED TO
FACILITATE INSERTION INTO THE PIPE FITTING. DO
NOT USE PETROLEUM-BASED LUBRICANTS!
•
DO NOT USE THREAD SEALANT OR LUBRICANTS ON
THE RETAINING CAP OR ON THE PLASTIC FITTING
THREADS.
•
IF LEAKING IS OBSERVED FROM THE RETAINING CAP,
IT INDICATES DEFECTIVE OR WORN O-RINGS ON THE SENSOR. DO NOT ATTEMPT TO CORRECT BY FURTHER
TIGHTENING.
English
1
2
3
3
4
5
5
5
5
6
7
8
8
9
9
9
Flow
Do not use any tools to
tighten the yellow retaining cap.
DO NOT USE thread sealant or
lubricants on retaining cap!
The O-rings can be lightly
lubricated to facilitate insertion
into the pipe fitting.
DO NOT USE petroleum-based
lubricants on O-rings!
DO NOT USE thread sealant
or lubricants on the fitting
threads.
English
10
11
12
12
14
14
14
15
15
15
16
17
17
17
18
18
19
19
20
