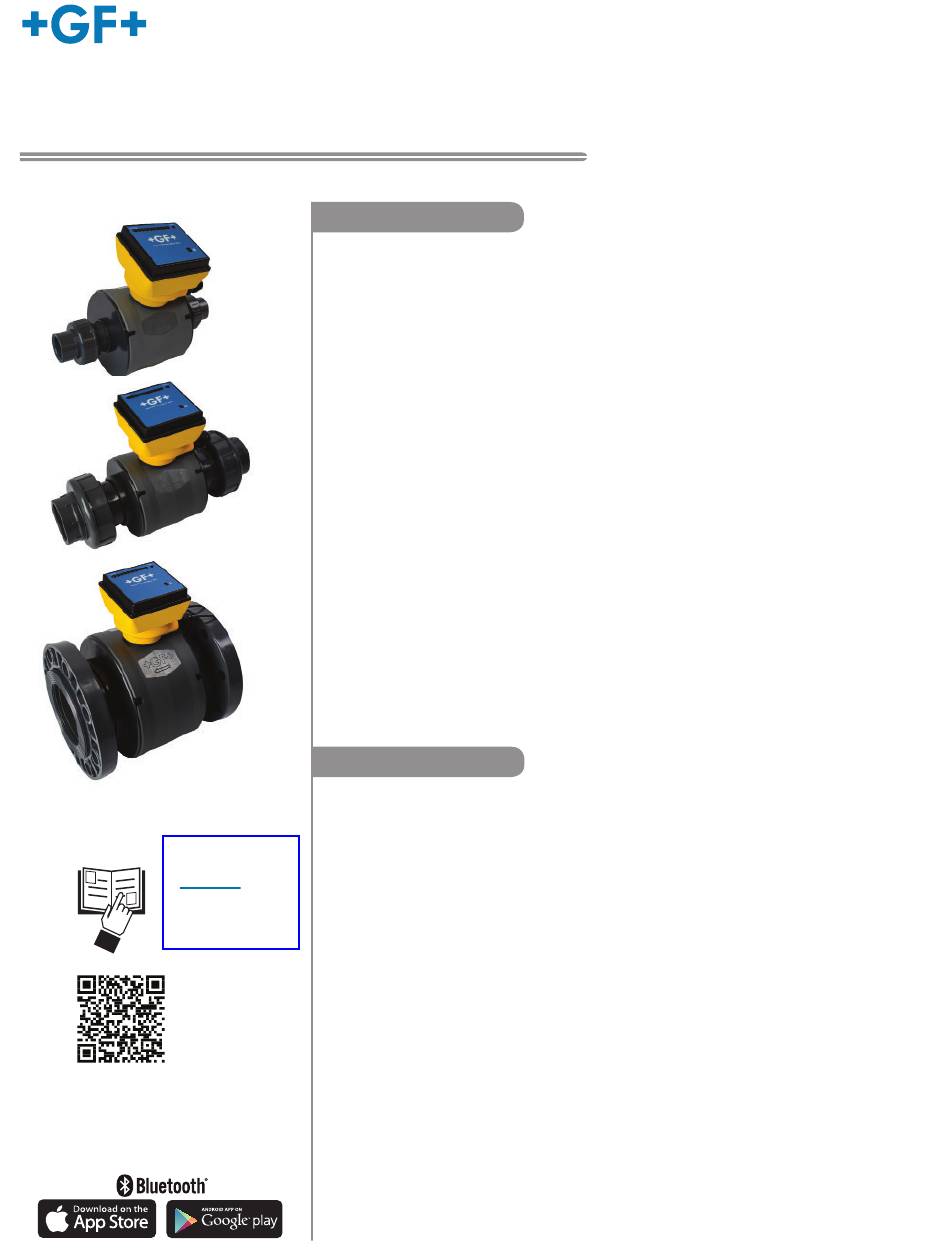

Signet 2580 FlowtraMag™ Meter
*3-2580.090*
3-2580.090
Rev 1 08/19
•
English
Description

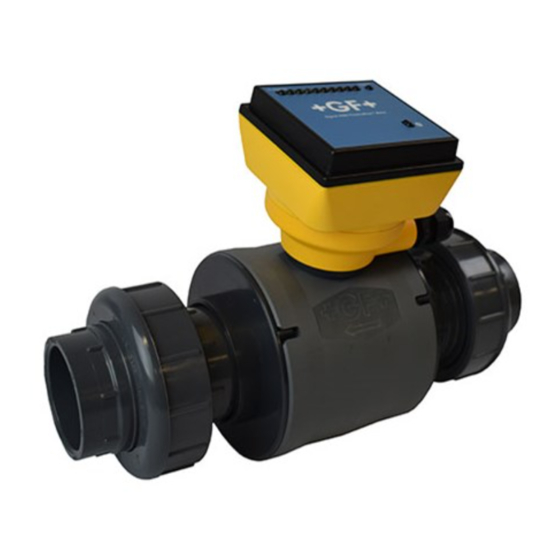

The Signet 2580 FlowtraMag is a full-bore plastic PVC in line style magnetic fl owmeter. The
PVC body with titanium electrodes has no moving parts, and is two to three times lighter
in weight compared to traditional metal magmeters on the market. It is designed for high
accuracy fl ow measurement in short pipe runs, making it an ideal solution for industrial
applications where performance and ease of use are important.
The FlowtraMag is available in pipe sizes of 1", 2" and 4", optimized for performance in short
pipe runs often associated with fi nal effl uent lines, well heads and water treatment skids.
Features include:
•
No moving parts
•
No pressure drop
•
Lighter in weight compared to traditional metal magmeters
•
Reduced straight run requirements, ideal for fi nal effl uent lines, well heads and skids
•
Factory calibrated with certifi cate (±1% of reading accuracy)
•
Partially fi lled pipe detection status indicator
•
Visual LED indicators make sensor status clear and easy to read
•
Reverse fl ow direction confi gurable with 0252 Confi guration Tool or GF Confi g Tool
Bluetooth
®
App
•
Capable of temperature readings of the media using the 0252 Confi guration Tool or
GF Confi g Tool Bluetooth
•
One device with three diff erent outputs: fi eld selectable Frequency or Digital (S³L),
and analog 4 to 20 mA
•
On-the-fl y confi guration with GF Confi g Tool Bluetooth
•
Bluetooth
4.2 capable, support iOS and Android for simple user confi guration
®
Table of Contents
Warranty Information ...............................................................................2
Product Registration ................................................................................2
Safety Information ...................................................................................2
Chemical Compatibility ............................................................................2
Specifi cations ..........................................................................................3
Temperature-Pressure Graph ..................................................................3
Sensor Dimensions .................................................................................4
Sensor Location.......................................................................................4
Sensor Mounting Angle ...........................................................................5
Sensor Pipe Installation ...........................................................................5
Hardware Confi guration...........................................................................6
Default Confi gurations .............................................................................6
Wiring ...................................................................................................7-9
App Confi guration - Setup .....................................................................10
App Confi guration - Sensor Setup ....................................................11-12
Calibration .............................................................................................13
Customization and Performance Settings .............................................13
Averaging and Sensitivity Settings ........................................................14
LED Status Indicators ............................................................................14
Confi guration - 0252 Confi guration Tool ...........................................15-17
Troubleshooting ................................................................................18-19
Ordering Information..............................................................................20
U.S. and International Patents Pending
Operating Instructions
App
®
English
App
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GF Signet FlowtraMag 2580 Series
Summary of Contents for GF Signet FlowtraMag 2580 Series
-
Page 1: Table Of Contents
Partially fi lled pipe detection status indicator • Visual LED indicators make sensor status clear and easy to read • Reverse fl ow direction confi gurable with 0252 Confi guration Tool or GF Confi g Tool Bluetooth ® • Capable of temperature readings of the media using the 0252 Confi guration Tool or GF Confi... -
Page 2: Warranty Information
Service Form and goods must be or less permeable to contained media, such as water or volatile returned to your local GF Sales offi ce or distributor. substances, including some acids. This eff ect is not related to Product returned without a Service Form may not be porosity, but purely a matter of gas diff... -
Page 3: Specifi Cations
Minimum ......0.02 m/s (0.07 ft/s) Low Energy (BLE) 4.2 Specifi cation Maximum ......10 m/s (33 ft/s) GF Confi g Tool App available in iOS and Android 3-2580-P-T-010 ....... 0.53 to 266.35 L/min App Stores (0.14 to 70.36 gal/min) 3-2580-P-T-020 ....... -
Page 4: Sensor Dimensions
Sensor Dimensions 1 in. 2 in. Union ends and union nuts shown Union ends and union nuts shown 99.0 mm 99.0 mm (3.90 in.) (3.90 in.) 249.4 mm 249.4 mm (9.82in.) (9.82 in.) 41 mm 9.7 mm (1.65 in.) 35.8 mm (0.38 in.) x 2 7.1 mm (1.41 in.) -
Page 5: Sensor Mounting Angle
Sensor Mounting Angle Horizontal Pipe Runs To minimize adverse eff ects of air pockets and sediment, avoid mounting the 2580 horizontally (±90º from vertical). DO NOT HANDLE BY THE SENSOR! Always handle FlowtraMag Meters by the union nuts or fl anges, NOT the sensor head. Vertical Pipe Runs Recommended To ensure pipe is fl... -
Page 6: Hardware Confi Guration
White Brown 4 to 20 mA Black Shield Blue used for GF Config App password reset only Application Tip: If your fl ow is in the reverse direction, it is Recommended: possible to set up reverse fl ow via the Signet 0252 Confi... -
Page 7: Wiring
Wiring Black – Power cable 24 VDC @ 1A min. CAUTION! Power Supply Turn off Power before Wiring. DO NOT REMOVE Seal! Warranty void if seal is WARRANTY VOID IF REMOVED WARRANTY broken or removed. VOID IF REMOVED Wiring with 4 to 20 mA Loop Output 2580 Black –... - Page 8 Wiring with Digital (S L) Output 2580 Wiring to Signet 8900 - Two digital (S L) inputs 8900 GF Confi g Tool App set to S 2580 Data (Red) Output cable Ground (White) Blue not used Brown Black Not used...
- Page 9 Power cable LOOP+ LOOP– – 24 VDC @ 1A min. Power Supply 2580 Wiring to Signet 9950 9950 Digital (S DC POWER GF Confi g Tool App set to S PWR+ PWR– Loop1+ Loop1– Loop2+ Loop2– 2580 No connection Data (Red)
-
Page 10: App Confi Guration - Setup
Search for GF Confi guration Tool in the App store. Download the GF Confi g Tool. Press GET. App will install on phone or other wireless device. Return to home screen and look for App icon, click the blue GF Confi g Tool icon Continue to Sensor Setup Section (next page) Config Tool... -
Page 11: App Confi Guration - Sensor Setup
When the FlowtraMag Meter is in operation, when in close proximity to the FlowtraMag (less than 20 ft), open the GF Confi g Tool App to begin a search nearby devices and go thru the pairing process. Click on connect next to device you are pairing to. - Page 12 If the GF Confi g Tool password has been lost or forgotten, connect blue wire to white wire of the sensor output cable while unit is powered (for 2 to 5 seconds.) Disconnect blue wire from white wire after 5 seconds. Password will reset to factory original (last 6 digits of serial number.)
-
Page 13: Calibration
Customization and Performance Settings For customization and performance settings, use the GF Confi g Tool App or the Signet 0252 Confi guration Tool and software. Refer to the Signet 0252 Confi guration Tool manual for details to adjust the following parameters: 4 to 20 mA span: Factory setting is 4 mA = 0, and 20 mA = 10 m/s (32.8 ft/sec) equivalent fl... -
Page 14: Averaging And Sensitivity Settings
Averaging and Sensitivity Settings • Because ideal fl ow conditions are often impossible to achieve, the fl uids fl ow is often erratic, which causes erratic readings in control features (e.g., relays, 4 to 20 mA loops, etc.) that are associated with the fl ow rate. •... -
Page 15: Confi Guration - 0252 Confi Guration Tool
Confi guration - 0252 Tool This is an outline. For complete instructions, please refer to the 0252 Confi guration Tool manual. Select default unit by type. Then click on Read from the device. The Application tab, select fl ow unit, totalizer unit, temperature unit, Averaging, Sensitivity, Low Flow Cut Off... - Page 16 Confi guration - 0252 Tool The Loop tab, select or confi rm your 4 to 20 mA set point, set your current alarm condition, and type of output mode. Note: The 0252 Confi guration Tool will be unable to connect to sensor when set to frequency.
- Page 17 Confi guration - 0252 Tool The Monitor tab can graph or log the information to your local drive via fi le type with the extension .CSV 8. The Calibration tab, allows custom calibration via method of rate, volumetric, and zero fl ow calibration. Signet 2580 FlowtraMag Meter...
-
Page 18: Troubleshooting
fi lled pipe and creating fl ow spikes. The spiking will end once the disturbance is not present anymore. Frequency Bluetooth selection is S Select frequency from GF Confi g Tool or output does not Improper wiring. 0252 Confi guration Tool. work Check wiring. - Page 19 Symptom Possible Cause Solution Measurement Improper calibration. 1. Use the GF Confi g Tool App or 0252 inaccurate Sensor fault as indicated by the Confi guration Tool to reset fl ow and/or zero Red LED. calibration. If user intends to calibrate using...
-
Page 20: Ordering Information
Ordering Information Mfr. Part No. Code Description 3-2580-P-T-010 159 001 874 FlowtraMag Blind, PVC Union, FKM (1 in.) 3-2580-P-T-020 159 001 875 FlowtraMag Blind, PVC Union, FKM (2 in.) 3-2580-P-T-040 159 001 876 FlowtraMag Blind, PVC Flange, FKM (4 in.) Accessories 3-0252 159 001 808...
