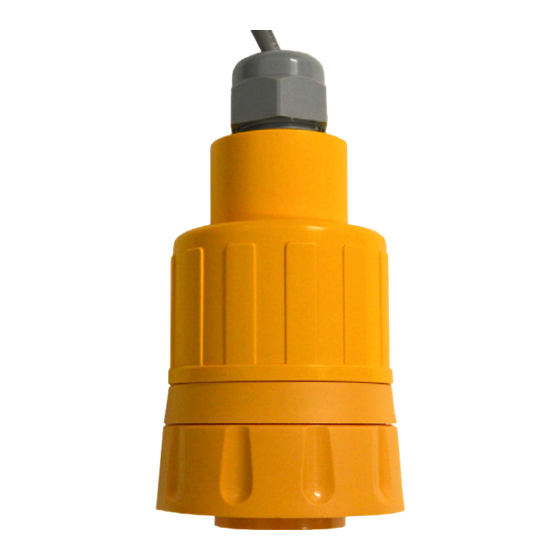

Amperometric Electronics
®
Description
The 2650 Amperometric Electronics provide the polarization voltage and signal
conditioning required by all GF Amperometric Sensors. Sophisticated circuitry
makes system setup and verification easy. The 2650 Amperometric Electronics
processes signals from a chlorine electrode and transmits digital data via a three
wire cable to the 9950-X Chlorine Controller. The DryLoc
quickly forms a robust assembly with the sensor. The Smart Sensor Electronics
also accesses stored factory and real time environmental data stored on the
chlorine sensor.
Features:
•
Passes data stored in sensor memory, such as factory calibration data,
service time, range and more.
•
GF patented DryLoc
connection.
Gold-plated contacts and an O-ring seal ensure a waterproof and reliable
interconnect to the sensor.
•
Separate drive electronics from sensor make for easy sensor replacement
without running new cable.
•
DryLoc
* NOTE: The 9950-X Chlorine Controller is not compatible with the standard 9950 controller.
connector provides quick assembly and a secure
®
connectivity allows easy sensor removal for calibration.
®
WARNING
Refer to the 3-463X Chlorine manual for
additional important information regarding
safety and installation.
Operating Instructions
electrode connector
®
English
Advertisement
Table of Contents
Related Manuals for GF DryLoc 2650

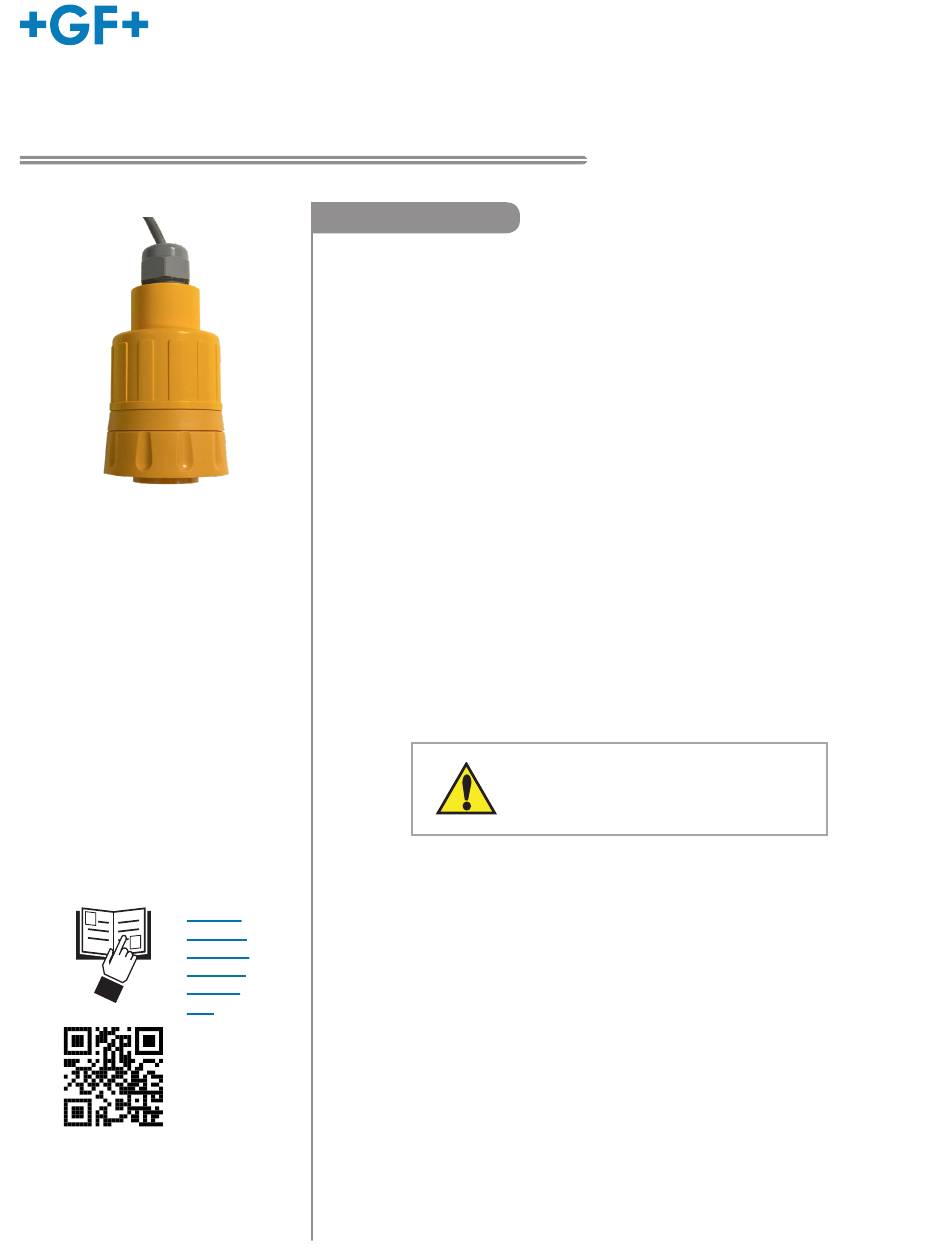

Summary of Contents for GF DryLoc 2650
- Page 1 Description The 2650 Amperometric Electronics provide the polarization voltage and signal conditioning required by all GF Amperometric Sensors. Sophisticated circuitry makes system setup and verification easy. The 2650 Amperometric Electronics processes signals from a chlorine electrode and transmits digital data via a three wire cable to the 9950-X Chlorine Controller.
- Page 2 Service Form and goods must be Mounting ........DryLoc connection ® returned to your local GF Sales office or distributor. Materials ........PC+PBT Cable ........... 4.6 m (15 ft) 3 conductor Product returned without a Service Form may not be shielded, 22 AWG warranty replaced or repaired.
- Page 3 Remove approximately 10 mm (0.4 in.) of insulation and tin each conductor before inserting into terminals. 9950-X CH 1 Black No connection FREQ DATA White Shield • For calibration and configuration please refer to the 463X Chlorine Analyzer System and 9950-X Chlorine Controller manuals. GF 2650 Amperometric Electronics...
- Page 4 Ordering Information Mfr. Part No. Code Description 3-2650-7 159 001 670 Ampermetric Electronics 3-2630-1 159 001 746 Free Chlorine electrode, 0.02 to 2 ppm (mg/L) 3-2630-2 159 001 662 Free Chlorine electrode, 0.05 to 5 ppm (mg/L) 3-2630-3 159 001 747 Free Chlorine electrode, 0.1 to 20 ppm (mg/L) 3-2632-1 159 001 767...
