GF SIGNET 2550 Quick Start Manual

‡ SIGNET 2550 InsertionMagmeter
3-2550.090
1. Do not remove from pressurized lines! Do not remove safety ring from sensor. Unit may become a
dangerous projectile if safety devices are disabled.
2. Do not open wiring access plate in humid environment. Moisture in terminal area may cause
instrument failure.
3. In EDIT mode, all the output functions of the +GF+ SIGNET 2550 Insertion Magmeter are still
active, so the control process is uninterrupted.
4. The +GF+ SIGNET 2550 Insertion Magmeter weighs 11 lbs. Care must be taken to properly
support the unit with straps and/or bracing when necessary.
1. Description

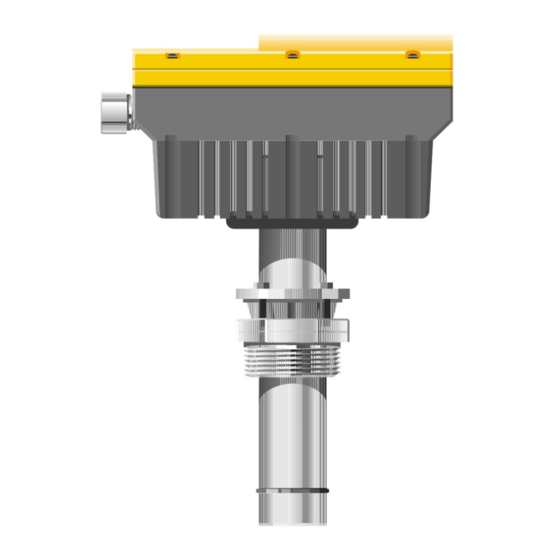

The latest in bipolar pulsed DC technology and the best features of an insertion sensor are packed into the +GF+ SIGNET 2550
Insertion Magmeter. Simple installation, easy maintenance, and state-of-the-art microprocessor technology make the 2550 the best
alternative to traditional full-line magmeters. The 2550 is based on the Faraday principle, and provides current frequency output signals
proportional to the flow rate. The system incorporates automatic temperature compensation, resulting in outputs that are accurate
within ±2% of actual flow rate. The bipolar electronic design and the 10000 MΩ input impedance reduce galvanic formation on the
electrodes and minimize coating problems. The isolated current output provides an universal signal to recorders, valves, process
control and data acquisition devices. The open collector frequency output is compatible with all powered flow controllers.
2. Specifications
General
Flow Rate Range:
Linearity:
Min. Reynolds Number:
Pipe Size Range:
Wetted Materials:
• Sensor Body:
• Electrodes:
• Installation Hardware:
• Insulator:
• Internal O-Ring:
Enclosure:
Power Requirements:
Max. Loop Impedance:
Frequency Output:
Fluid Condition:
• Temperature:
• Minimum Conductance 5 mS/cm
Required
• Maximum Pressure:
• Shipping Weight:
• Ambient temperature:
‡ SIGNET 2550 InsertionMagmeter
G-12/02 English
0.1 to 7 m/S (0.3 to 20 ft/s)
±2% of reading or 0.05 ft/s
(whichever is greater)
4500
DN50 to DN300 (2 to 12 in.)
316 SS
316 SS
316 SS
PFA
®
FPM (Viton )
NEMA4 die cast aluminum
24 VDC ±10%, 600 mA
600 W, isolated
0 to 7m/s (20 ft/s)=0 to 500 Hz isol.,
open collector, 5 to 12VDC
(2K pull-up recommended)
0 to 100°C (32 to 212°F)
17 bar (250 psi)
6.7 kg (13.2 lbs.)
-20 to 80°C (-4 to 176°F)

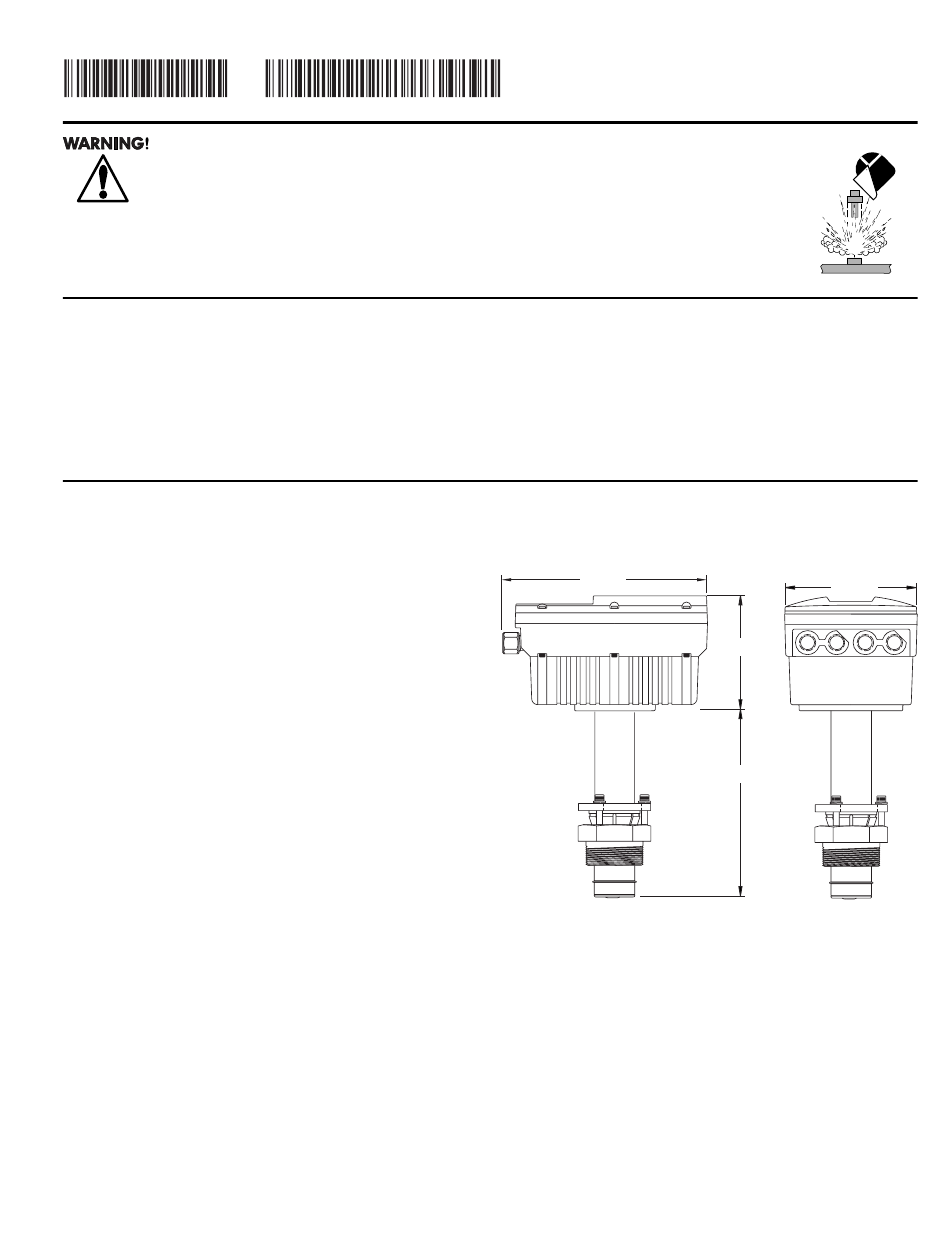

Dimensions
218 mm
[8.60 in]
Standards and Approvals:
• Manufactured under ISO 9001 and ISO 14001
ENGLISH
140 mm
[5.52 in]
122 mm
[4.79 in]
200 mm
[7.87 in]
page 1 of 12
