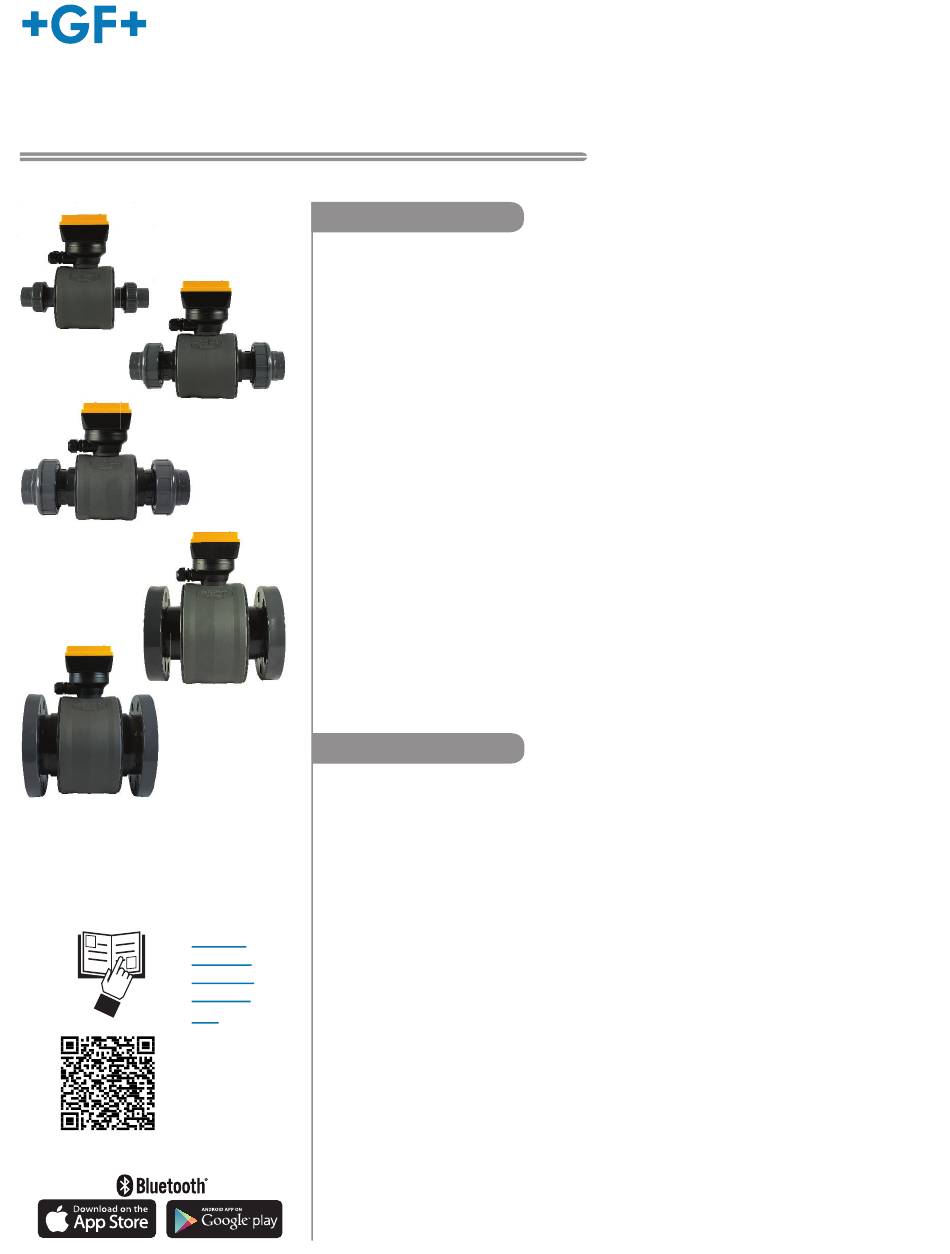

GF 2581 FlowtraMag
*3-2581.090*
3-2581.090
Rev 2 04/21
DN25
DN25
(1 in.)
DN50
DN50
(2 in.)
DN100
DN100
(4 in.)
English
Deutsch
Français
Español
中文
Meter
®
Description

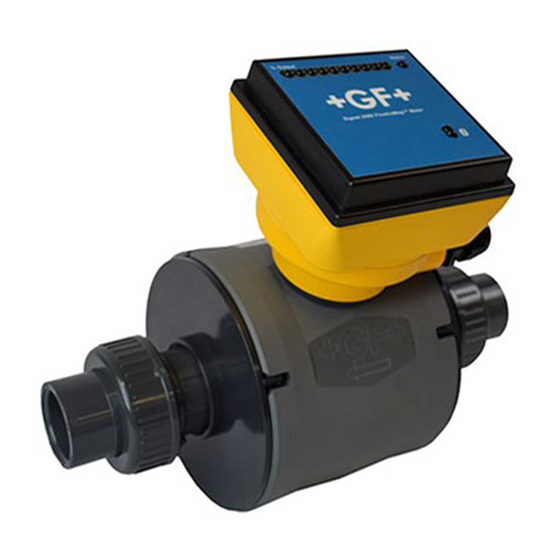

The GF 2581 FlowtraMag is a full-bore plastic PVC in-line style magnetic fl owmeter. The
PVC body with Titanium or Hastelloy
three times lighter in weight compared to traditional metal magmeters on the market. It is
designed for high accuracy fl ow measurement in short pipe runs, making it an ideal solution
for industrial applications where performance and ease of use are important.
The FlowtraMag is available in pipe sizes of DN25 (1 in.), DN40 (1.5 in.), DN50 (2 in.),
DN80 (3 in.) and DN100 (4 in.), optimized for performance in short pipe runs often
associated with fi nal effl uent lines, well heads and water treatment skids.
DN40
DN40
Features include:
(1.5 in.)
No moving parts
No pressure drop
Lighter in weight compared to traditional metal magmeters
Reduced straight run requirements, ideal for fi nal effl uent lines, well heads and skids
Factory calibrated with certifi cate (±1% of reading accuracy)
Partially fi lled pipe detection status indicator
Visual LED indicators make sensor status clear and easy to read
Reverse fl ow direction confi gurable with 0252 Confi guration Tool or GF Confi g Tool
Bluetooth
One device with three diff erent outputs: fi eld selectable Frequency or Digital (S³L),
and analog 4 to 20 mA, in both passive and active confi guration
On-the-fl y confi guration with GF Confi g Tool Bluetooth
Bluetooth
instantaneous fl ow reading
DN 80
(3 in.)

Table of Contents

Warranty Information ...............................................................................2
Product Registration ................................................................................2
Safety Information ...................................................................................2
Chemical Compatibility ............................................................................2
Temperature-Pressure Graph ..................................................................2
Specifi cations ..........................................................................................3
Sensor Dimensions .................................................................................4
Sensor Location.......................................................................................6
Sensor Mounting Angle ...........................................................................6
Sensor Pipe Installation ...........................................................................7
Wiring Confi guration ................................................................................9
Default Confi gurations ...........................................................................10
Wiring .................................................................................................... 11
App Confi guration - Setup .....................................................................14
App Confi guration - Monitor and Real Time Log ...................................16
App Confi guration - Files .......................................................................17
App Confi guration - Sensor Setup .........................................................17
Calibration .............................................................................................19
Customization and Performance Settings .............................................19
Averaging and Sensitivity Settings ........................................................20
LED Status Indicators ............................................................................20
Confi guration - 0252 Confi guration Tool ................................................21
Troubleshooting .....................................................................................24
Ordering Information..............................................................................27
Patent #: US 10,712,184 B1
Other U.S. and International Patents Pending
Operating Instructions
®
C electrodes has no moving parts and is two to
App
®
4.2 capable, support iOS and Android for simple user confi guration with
®
English
®
App

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlowtraMag GF 2581 and is the answer not in the manual?

Questions and answers

Summary of Contents for GF FlowtraMag GF 2581

  • Page 1: Table Of Contents

    (2 in.) • Visual LED indicators make sensor status clear and easy to read • Reverse fl ow direction confi gurable with 0252 Confi guration Tool or GF Confi g Tool Bluetooth ® • One device with three diff erent outputs: fi eld selectable Frequency or Digital (S³L), and analog 4 to 20 mA, in both passive and active confi...
  • Page 2: Warranty Information

    Service Form and goods must be or less permeable to contained media, such as water or volatile returned to your local GF Sales offi ce or distributor. substances, including some acids. This eff ect is not related to Product returned without a Service Form may not be porosity, but purely a matter of gas diff...
  • Page 3: Specifi Cations

    (0.14 to 70.36 GPM) Low Energy (BLE) 4.2 Specifi cation DN40 (1.5 in.) ......1.36 to 662.34 LPM GF Confi g Tool App available in iOS and Android (0.36 to 174.97 GPM) App Stores DN50 (2 in.) ......2.23 to 1112.60 LPM (0.59 to 293.92 GPM)
  • Page 4: Sensor Dimensions

    Sensor Dimensions WARNING! ASTM and Metric pipe cutout dimensions are diff erent. 1 in. DN25 ASTM union ends and union nuts shown Metric union ends and union nuts shown 99.2 mm 3.91 in. 9.82 in. 249.4 mm 1.41 in. 2X 0.22 in. 35.8 mm 2X 5.5 mm Ø...
  • Page 5 Sensor Dimensions WARNING! ASTM and Metric pipe cutout dimensions are diff erent. 3 in. DN80 Flange bolt kits and gaskets not shown (Sold separately) Flange bolt kits and gaskets not shown (Sold separately) 99.2 mm 3.91 in. 327.6 mm 12.90 in. Ø...
  • Page 6: Sensor Location

    2 x I.D. Sensor Mounting Angle Horizontal Pipe Runs DO NOT HANDLE BY THE SENSOR HEAD! GF recommends installing the sensor electronics at the Always handle FlowtraMag Meters by the union nuts 12 o'clock position. or fl anges, NOT the sensor head.
  • Page 7: Sensor Pipe Installation

    Sensor Pipe Installation 2581 FlowtraMag DN25 (1 in.) Application Tip: For Metric pipe 2581 FlowtraMag DN40 (1.5 in.) installation, change Union End to Metric. 2581 FlowtraMag DN50 (2 in.) Union Ends Hand Tighten Only! Choose a mounting location that satisfi es the requirements. Select appropriate (Metric or ASTM) union end for installation.
  • Page 8 Sensor Pipe Installation Tighten bolts by fi rst assembling and hand tightening the nuts 2581 FlowtraMag DN80 (3 in.) to position the gasket in place. Then tighten the bolts in a 2581 FlowtraMag DN100 (4 in.) diagonal pattern 50% the recommended torque, then 100% of recommended torque.
  • Page 9: Wiring Confi Guration

    4 to 20 mA Black Shield Blue used for GF Config App password reset only Electromagnetic Compatibility (EMC) Recommendations Complex instrumentation systems such as the 2581 FlowtraMag and the associated devices may face challenges involving Electromagnetic Interference (EMI). EMI interference may be coupled to the system via cables (conducted interference) or broadcast via electrical radiation (radiated interference).
  • Page 10: Default Confi Gurations

    Application Tip: Recommended: If your fl ow is in the reverse direction, it is possible to set up reverse fl ow via the GF Signet 0252 Confi guration The directional arrow should be pointed Tool or GF Confi g Tool App.
  • Page 11: Wiring

    24 VDC @ 1A min. that can be connected to any powered Power Supply GF fl ow meter (models 8900, 9900, 9900- 1BC, 9950). • 24 VDC power at 1 amp should always be connected.
  • Page 12 Brown Bluetooth Not used ® Black Wiring with Digital (S L) Output 2581 FlowtraMag Wiring to GF 8900 - Two digital (S L) inputs 8900 GF Confi g Tool App set to S 2581 Data (Red) Output cable Ground (White)
  • Page 13 LOOP+ LOOP– – 24 VDC @ 1A min. Power Supply 2581 FlowtraMag Wiring to GF 9950 9950 Digital (S DC POWER GF Confi g Tool App set to S PWR+ PWR– Loop1+ Loop1– Loop2+ Loop2– 2581 No connection Data (Red)
  • Page 14: App Confi Guration - Setup

    Search for GF Confi guration Tool in the App store. Download the GF Confi g Tool. Press GET. App will install on phone or other wireless device. Return to home screen and look for App icon, click the blue GF Confi g Tool icon Continue to Sensor Setup Section (next page) Config Tool...
  • Page 15 (example shows Menu) Note: If the GF Confi g Tool password has been lost or forgotten, connect blue wire to white wire while unit is powered (for 2 to 5 seconds.) Password will reset to factory original (last 6 digits of serial number.)
  • Page 16: App Confi Guration - Monitor And Real Time Log

    App Confi guration - Monitor and Real Time Log Monitoring fl ow and totalizer Live Logging while connected to mobile / tablet device, set 1 sec or more increments iOS version Note: The logging screen only logs current screen view in real-time when connected to the app.
  • Page 17: App Confi Guration - Files

    NOTE: This will overwrite any changes made in the GF Confi g Tool App since the last Write. Write Applies the data entered in the GF Confi g Tool App to the connected device. Once you have entered the desired setting changes in the software screens, press Write to load your new settings onto the connected device.
  • Page 18 To switch between digital (S L) and Frequency and/or 4 to 20 Calibration Active or Passive, use the GF Confi g Tool App. On the loop Custom Calibration of screen, use the drop down to select digital (S L) or Freq Rate, Volumetric, Zero and/or Active or Passive 4 to 20 mA.
  • Page 19: Calibration

    Customization and Performance Settings For customization and performance settings, use the GF Confi g Tool App or the Signet 0252 Confi guration Tool and software. Refer to the Signet 0252 Confi guration Tool manual for details to adjust the following parameters: 4 to 20 mA span: Factory setting is 4 mA = 0 and 20 mA = 10 m/s (32.8 ft/sec) equivalent fl...
  • Page 20: Averaging And Sensitivity Settings

    Averaging and Sensitivity Settings • Because ideal fl ow conditions are often impossible to achieve, the fl uids fl ow is often erratic, which causes erratic readings in control features (e.g., relays, 4 to 20 mA loops, etc.) that are associated with the fl ow rate. •...
  • Page 21: Confi Guration - 0252 Confi Guration Tool

    Confi guration - 0252 Tool This is an outline. For complete instructions, please refer to the 0252 Confi guration Tool manual. Select default unit by type, then click ok. Then click on Read from the device. The Application tab, select fl ow unit (drop down menu), totalizer unit (drop down menu), Averaging (drop down...
  • Page 22 Confi guration - 0252 Tool The Loop tab select or confi rm your 4 to 20 mA set point, set your current alarm condition and type of output mode. If the user has any correction or change, you must Write the information to device, then click Read device again.
  • Page 23 Confi guration - 0252 Tool The Monitor tab can graph or log the information to your local drive via fi le type with the extension .CSV 8. The Calibration tab allows custom calibration via method of rate, volumetric, zero fl ow calibration and reset fl...
  • Page 24: Troubleshooting

    fi lled pipe and creating fl ow spikes. The spiking will end once the disturbance is not present anymore. Frequency Bluetooth selection is S Select frequency from GF Confi g Tool or output does not Improper wiring. 0252 Confi guration Tool. work Check wiring.
  • Page 25 Symptom Possible Cause Solution Measurement Improper calibration. 1. Use the GF Confi g Tool App or 0252 inaccurate Sensor fault as indicated by the Confi guration Tool to reset fl ow and/or zero Red LED. calibration. If user intends to calibrate using...
  • Page 26 Notes...
  • Page 27: Ordering Information

    Ordering Information Mfr. Part No. Code Description 3-2581-PT01-101 159 001 970 FlowtraMag, PVC, Titanium, FKM O-Ring, Union, DN25 (1 in.) 3-2581-PT15-101 159 001 971 FlowtraMag, PVC, Titanium, FKM O-Ring, Union, DN40 (1.5 in.) 3-2581-PT02-101 159 001 972 FlowtraMag, PVC, Titanium, FKM O-Ring, Union, DN50 (2 in.) 3-2581-PT03-101 159 001 973 FlowtraMag, PVC, Titanium, FKM O-Ring, Flange, DN80 (3 in.)
  • Page 28 Ordering Information Accessories Mfr. Part No. Code Description 3-0252 159 001 808 0252 Confi guration Tool (optional for confi guring with PC) 5523-0222 159 000 392 Cable (per foot), 2 cond. w/shield, 22 AWG 5523-0224 159 855 034 Cable (per foot), 6 cond. w/shield, 22 AWG 3-2581-PX01-10X Accessories: 857 375 010 857 375 010...
