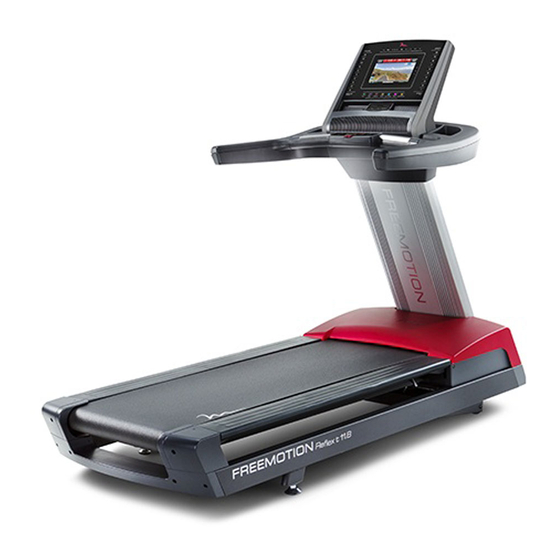

Freemotion Reflex t11.8 Treadmill Assembly Manual:
Refer to when disassembled in 3 pieces

Advertisement

loading
Need help?

Need help?

Do you have a question about the Reflex T11.8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Freemotion Reflex T11.8

Summary of Contents for Freemotion Reflex T11.8

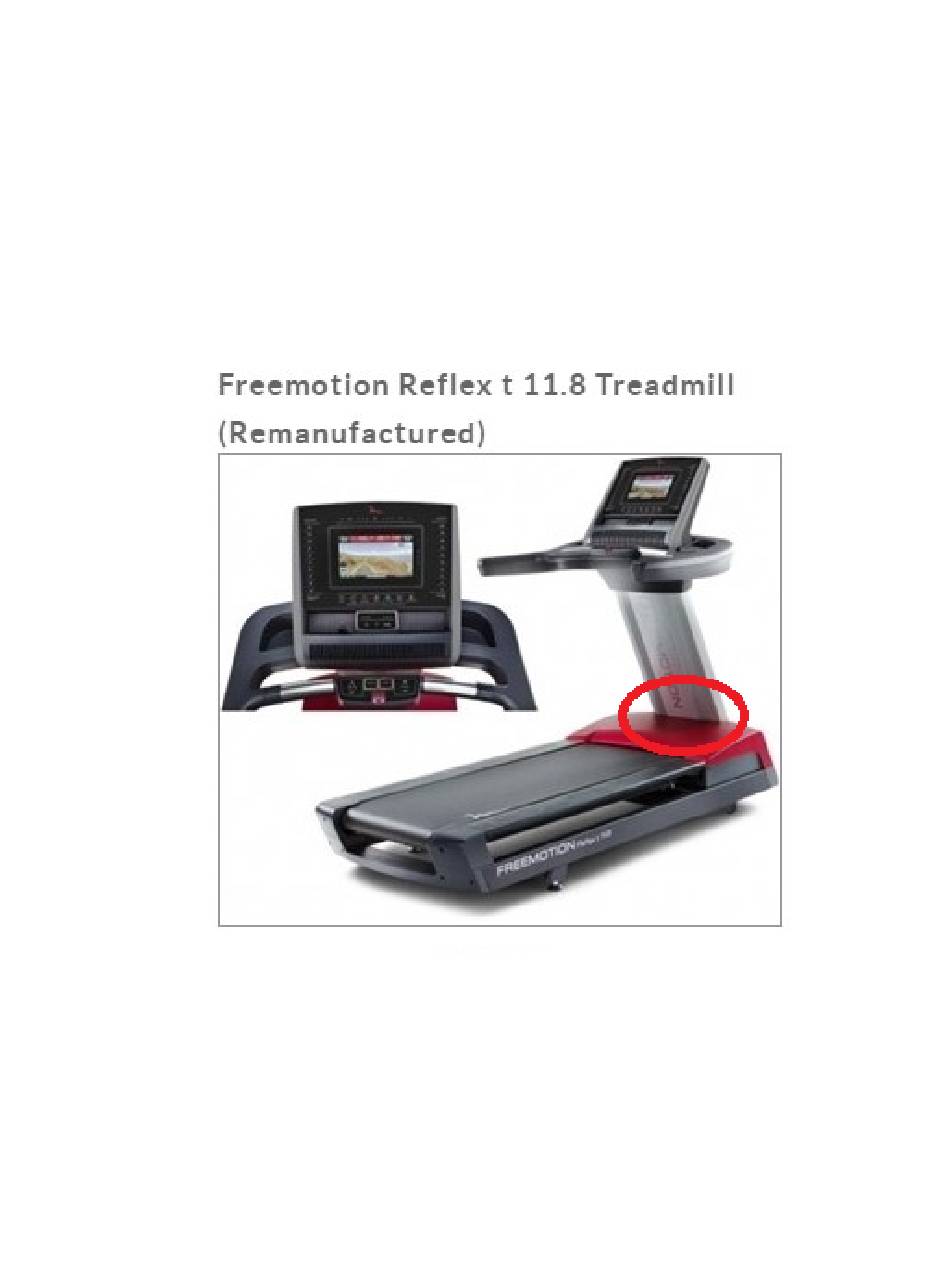

  • Page 1 Freemotion Reflex t11.8 Treadmill Assembly Manual: Refer to when disassembled in 3 pieces...

  • Page 2: Before You Begin

    Thank you for selecting the revolutionary reading this manual, please see the back cover of this FREEMOTION REFLEX T11.8 treadmill. The REFLEX manual. To help us assist you, note the product model ® T11.8 treadmill offers an impressive selection of fea- number and serial number before contacting us.

  • Page 3: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.
  • Page 4 ASSEMBLY • Assembly requires two persons. • Assembly requires the following tools: the included hex key • Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing one adjustable wrench materials until you finish all assembly steps. one Phillips screwdriver • To identify small parts, see page 7.
  • Page 5 2. Insert the end of the Upright Wire (111) through the looped plastic tie at the top of the Upright (81). Make sure that the Upright Wire is behind the crossbars on the Upright. Then, gently pull upward on the Upright Wire as you tighten the plastic ties around the Upright Wire.
  • Page 6 4. Have a second person hold the handrail assem- bly near the Upright (81). Insert the Upright Wire Handrail (111) and the TV Cable (106) upward through Assembly the center of the handrail assembly. Slide the bracket on the handrail assembly over the crossbar on the Upright (81) and set the Bracket handrail assembly on the Upright.
  • Page 7 6. Tighten two 3/8" x 3 3/4" Screws (11) with two 3/8" Flat Washers (43) into the handrail assem- bly. Start both Screws, and then tighten them. See step 5. Tighten the two 3/8" x 3 3/4" Screws (11). Handrail Assembly 7.
  • Page 8 8. Tighten four 3/8" x 2 3/4" Screws (27) with two 3/8" Star Washers (2) into the handrail assembly. Handrail Assembly 9. Attach the Upright Collar (105) to the handrail assembly with two #8 x 5/8" Screws (18). Handrail Assembly 10.
