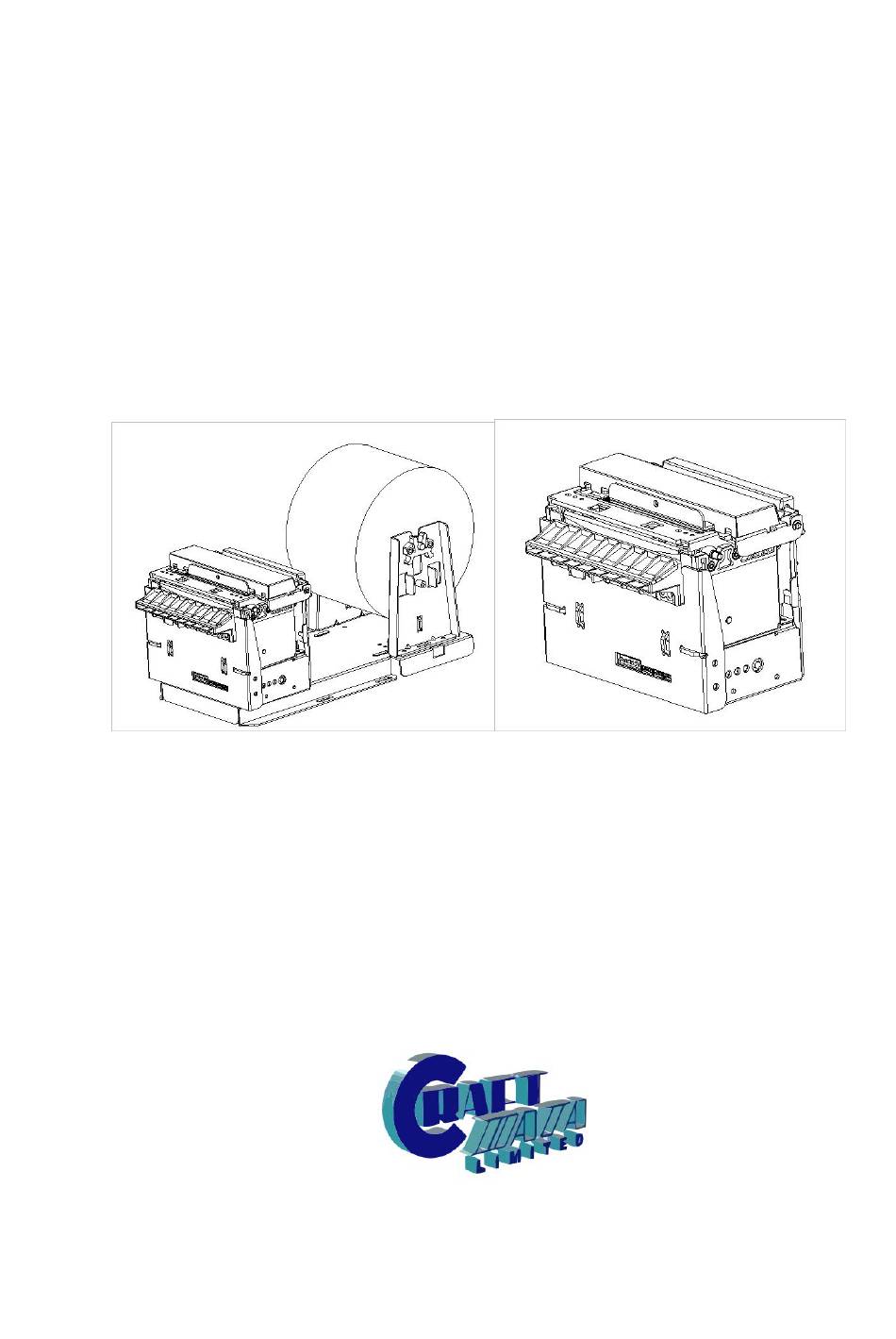

- Page 1 SPRT ® SP-EU804/EU805 PRINTING UNIT USER’S MANUAL （Ver 1.02） Beijing Spirit Technology Development Co.,Ltd Craft Data Limited Tel: 01296 332000 Email: sales@craftdata.co.uk Homepage: www.craftdata.co.uk...
- Page 2 Safety Instruction Safety warming 1)The print head is heating parts, during printing and end printing, do not touch the print head and surrounding parts. 2)Do not touch the surface of the print head and connection socket, avoid the electrostatic damage the print head. Notice 1) Printing units should be installed in a flat, stable place;...
-
Page 3: Table Of Contents
Content Brief Introduction............................1 Chapter 1 Characteristics and performance.....................2 1.1 Print performance........................... 2 1.2 Print paper............................2 1.3 Character set........................... 2 1.4 Interface............................2 1.5 Printing control command......................3 1.6 Power supply........................... 3 1.7 Dimension and installation instructions..................3 1.8 Dam-board Function........................10 1.9 Work Environment........................10 Chapter 2 Operating instructions...................... -
Page 4: Brief Introduction

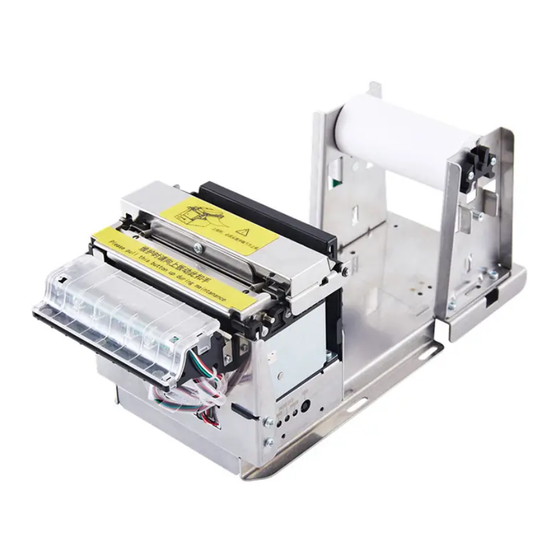

Brief Introduction SP-EU804/EU805 printer is a new thermal line panel printer, with drop-in paper easy loading,auto cutter,Black label detection,faster and more reliable. SP-EU804/EU805 printer easy operation,applications widely, especially to queue machine,POS for bank and the business of all kinds of needed docs to print. -
Page 5: Chapter 1 Characteristics And Performance
Chapter 1 Characteristics and performance 1.1 Print performance ● Printing method:direct line thermal; ● Printing paper width:79.5±0.5mm, 82±0.5mm。 ● Resolution:8dot/mm,576dot/line ● Printing speed:150mm／s（max） ● MCBF: (1) Printing head life:100km Operating conditions: * Print font 12 × 24 ASCII,printing 50 lines per time,Intermittent reprint. -
Page 6: Printing Control Command
PDK-5PIN socket(pin point),support XON/XOFF and DTR/DSR. Baud rate:1200,2400,4800,9600,19200,38400,57600,115200bps adjustable. Data structure:One start bit ＋ (7 or 8)data ＋ one stop bit. Verify:No validation or odd and even check is optional. ●USB port: Standard USB port. 1.5 Printing control command ● Characters print command:support the double width and height printing of ANK characters,self-defined characters and Chinese;... - Page 7 SP-EU804U、SP-EU804SU （Standard model）...
- Page 8 SP-EU804U、SP-EU804SU （Optional positioning port ）...
- Page 9 SP-EU804UMF、SP-EU804SUMF （Standard model）...
- Page 10 SP-EU804UMF、SP-EU804SUMF （Optional positioning port ）...
- Page 11 SP- EU805U、SP-EU805SU...
- Page 12 SP- EU805UMF、SP-EU805SUMF...
-
Page 13: Dam-Board Function
1.8 Dam-board Function When using the dam-board, lift the buffer shaft first, and then insert it into the hole. 1.9 Work Environment ● Working stability: 0 ~ 50℃ Operating Relative Humidity: 10% ~ 80% ● Storage stability: -20 ~ 60℃ Storage relative humidity: 10% ~ 90%... -
Page 14: Chapter 2 Operating Instructions
Chapter 2 Operating instructions 2.1 Printing Unit components SP-EU804U、SP-EU804SU SP-EU804UMF、SP-EU804SUMF... - Page 15 SP- EU805U、SP-EU805SU...
- Page 16 SP- EU805UMF、SP-EU805SUMF...
-
Page 17: Instructions For Paper Install
2.2 Instructions for paper install 2.2.1 Paper Loading Thermal paper installed as below: In the state of power-on, pull out a little from the paper roll, then put the paper into the mouth of printing mechanism, the printer will auto paper feeding . Note: make sure the paper is cut flat when loading. -
Page 18: Anti-Jamming And Anti-Pulling Function
2.3 Interface connection 2.3.1 Serial interface connection SP-EU804/EU805 printer serial interface is compatible with RS-232C,support DTR/DSR and XON/XOFF handshaking protocol. Its interface is PH-5PIN pin type socket outlet. The pin number of serial interface socket as shown in figure 2-1:... - Page 19 The baud rate and data structure have been set as 9600bps/8 data bits/no calibration and 1 stop bit under connected as serial. SP-EU804/SP-EU805 printer’s serial interface can be connected to the standard of RS-232C interface.The correct wiring method is as shown in Figure 2-2.
-
Page 20: Usb Interface
2.3.2 USB Interface USB interface : PH-4A interface : Function Remark V BUS Power 5V Data- Data- Data+ Data+ Fig 2-4 Definition of USB socket and pin 2.3.3 Power supply connection SP-EU805 printer is externally connected to 24V±10%, 2A power supply, and the socket is VH3.96-2PIN type. - Page 21 red Error light is off, the light is flashing as abnormal alarm status, if the indicator is long on, means the printing mechanism is opened in the process of printing. Error light flash: means there are something wrong with printer. According to blink in a different way, indicate the different types of printer error: 1,Non-recoverable error, The times of lights flashing said wrong type, then will light for a long time.
-
Page 22: Normal Working Mode
Error type Error description ERROR lights flash type LED flash once :cutter position error Recoverable errors c. Automatic recovery error, the lights will flash continuous. Including the print head temperature error and the upper cover to open the print process error. Error type ERROR lights flash type ERROR lights flash type... -
Page 23: The Printer Parameters Setting
2, Press the button of【FEED】then open the power supply: 3,Close the rubber roller printing agencies, then print out three lines content as below: Hexadecimal Dump To terminate hexadecimal dump, Press FEED button three times. It is means the printer has enter into HEX printing mode, under this mode all the input content will be printed out as HEX DUMP, the paper will online after press the 【FEED】button once, totally three times, print out "*** Completed ***", quit HEX DUMP mode. -
Page 24: Installation And Use Notes
3.0 Installation and use notes 1.The connection between the paper exit and the paper exit position of the device suggested to be one of the following figures. 2. When the paper exit port and Cabinet outlet are connected in the above figure, in the structure of Figure 1 and Figure 2, there should be a gap between the paper exit of the printer and the paper exit of the device. -
Page 25: Appendix A: Parameters Setting
4.In the process of use, it is necessary to wait for the printer to finish cutting paper before tearing/taking paper, so as to avoid paper blocking and deviation caused by paper tearing. 5.In the process of use, do not cover the paper nozzle with your hands, and make sure there is no foreign body covering before the paper nozzle to avoid paper jam. - Page 26 FEED FEED FEED 9600 19200 38400 57600 FEED FEED FEED FEED FEED 4800 2400 1200 115200 Language: FEED FEED China China-BI English FEED Font dots: FEED FEED 12×24 9×17 9×17 FEED Print density: FEED FEED High FEED Print speed: FEED FEED FEED 220mm/s...
