TABLE OF CONTENTS

1.0 MEANING OF SAFETY SIGNAL WORDS
2.0 SAFETY
3.0 GENERAL INFORMATION
3.1 USE WITH SALT WATER
3.2 VARIOUS MODELS AND TERMS
3.3 SPECIFICATIONS
3.3.1 MECHANICAL
3.4 ELECTRIC INSTALLATION
4.0 USE WITH FOAM
5.0 NOZZLE OPERATION
5.1 PATTERN CONTROL
5.2 AUTOMATIC NOZZLE OPERATION
5.3 SELECTABLE NOZZLE OPERATION
5.4 FLOW SELECTION
6.0 FLOW CHARACTERISTICS
6.1 MASTERSTREAM 4000 ER AUTOMATIC
6.2 MASTERSTREAM 4000 ER SELECTABLE
6.3 STREAM TRAJECTORY DATA
7.0 FLUSHING DEBRIS
8.0 WARRANTY
9.0 MAINTENANCE
9.1 FIELD LUBRICATION
9.2 SERVICE TESTING
9.3 REPAIR
10.0 EXPLODED VIEW AND PARTS LIST
11.0 OPERATION AND INSPECTION CHECKLIST
©Copyright Task Force Tips LLC 2020

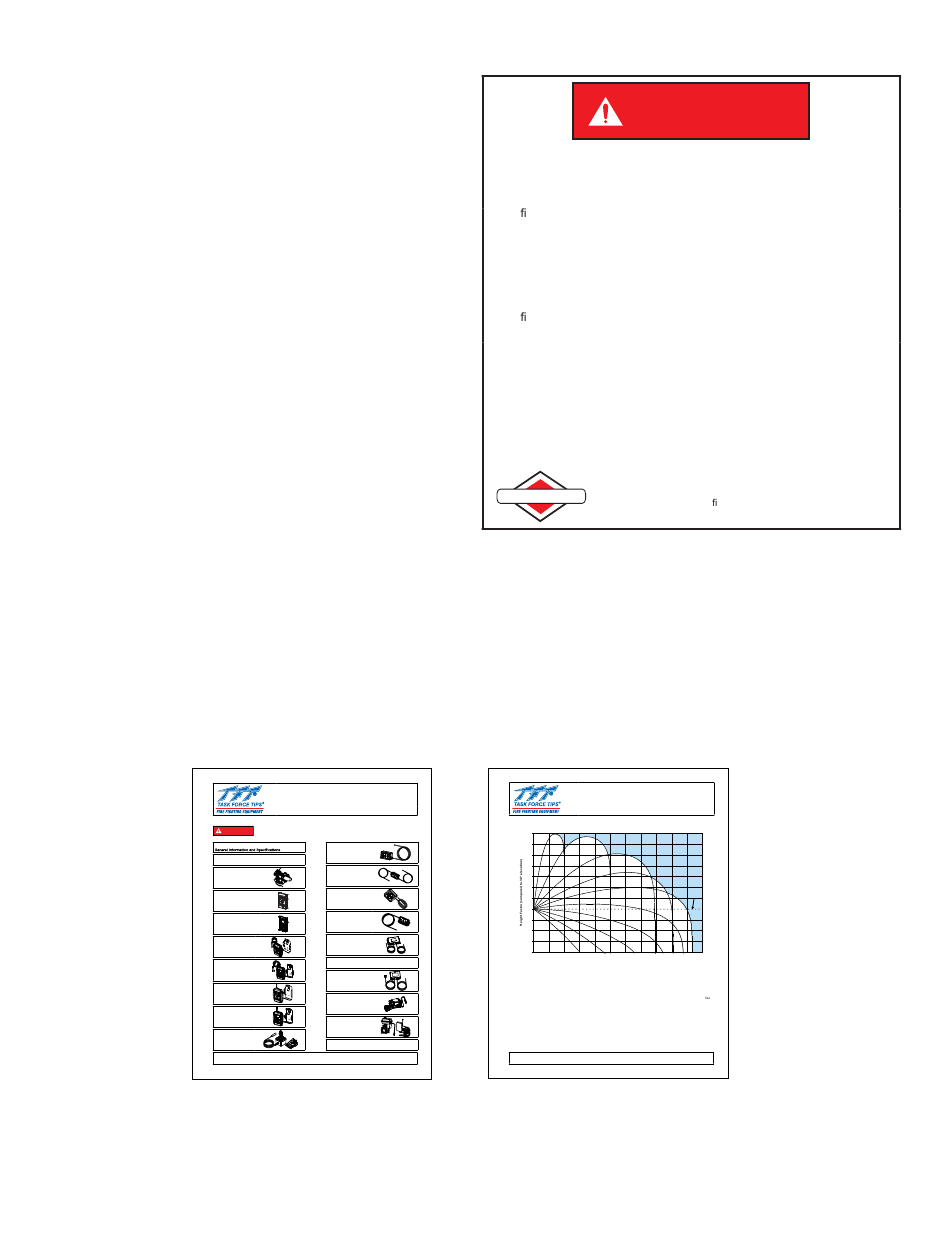

SUPPORTING MATERIALS
The following documents contain supporting safety and operating
information pertaining to the equipment described in this manual.
MANUAL: Remote Control (RC)
Monitor Electrical Controls
Supplemental Instructions for use with RC Monitor Manual
INSTRUCTIONS FOR INSTALLATION, SAFE OPERATION AND MAINTENANCE
Understand manual before use. Operation of this device without understanding the manual and
DANGER
receiving proper training is a misuse of this equipment. Obtain safety information at www.tft.
com/serial-number
SECTION 3.0
SECTION 4.9
Toggle Switch Monitor
Operator Station
SECTION 4.0
(Y4E-TS)
Electrical Controls Installation and Operation
SECTION 4.10
SECTION 4.1
Monitor Communication
Monitor Mounted Interface Control
Operator Station (Y4E-COMM)
SECTION 4.2 SECTION 4.11
Panel Mount Monitor Position Display
Operator Station (Y4E-DISP)
(Y4E-RP)
SECTION 4.12
SECTION 4.3
Remote Auxiliary Function
Panel Mount With Display
Interface Control
Operator Station
(YE-REMAUX)
(Y4E-RP-D)
SECTION 4.4 SECTION 4.13
Tethered Electric RC Monitor Aerial
Operator Station Truck Installation
(Y4E-CT-##)
SECTION 4.14
SECTION 4.5
Multiplex Interface Control (YE-CAN#)
Tethered Operator Station
With Display
(Y4E-CT-##-D)
SECTION 4.15
Ethernet Interface Control
SECTION 4.6
Wireless
Operator Station
(YE-RF-##)
SECTION 4.16
Electric Nozzle Actuator
SECTION 4.7
Wireless Operator Station
With Display
(YE-RF-##-D) SECTION 4.17
Valve Kits
(YE-VK-PH)
SECTION 4.8
Joystick
Operator Station
SECTION 5.0
(Y4E-JS)
Troubleshooting
TASK FORCE TIPS LLC
3701 Innovation Way, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
MADE IN USA • tft.com
©Copyright Task Force Tips LLC 2008-2019
LIY-500 Remote Control (RC)
Monitor Electrical Controls
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Fire ghting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user's instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Fire ghting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer's
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
0.0 0.1 0.2
3.5
85°
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-0.5
-1.0
-1.5
-
-2.0
Stream reach and height at non-optimal elevations can be estimated as a factor of the performance at the optimal 30° elevation.
Refer to LIM-030 and LIM-035 for effective stream trajectories of Task Force Tips Masterstream nozzles at 30° elevation.
This graph cannot be used to estimate maximum reach for elevation angles below 30°.
1.0 To estimate elevation angle when vertical and horizontal distances to target are known:
1.1 Find the maximum height and reach at 30° from the appropriate trajectory curve in LIM-030 or LIM-035.
1.2 Calculate the Height Factor by dividing the vertical distance to the target by maximum height from step 1.1.
1.3 Calculate the Reach Factor by dividing the horizontal distance to the target by maximum reach from step 1.1.
1.4 On the graph of nozzle trajectory elevation factors, plot the intersection of the Height Factor and Reach factor from steps 1.2 and 1.3. If this point lies
on or between the curves given, estimate the appropriate elevation angle. If this point lies within the shaded region of the graph, then a higher
pressure must be used to reach the target.
2.0 To estimate maximum reach for a given elevation angle above 0°:
2.1 From the graph of nozzle trajectory elevation factors, choose the trajectory curve for the desired elevation angle.
2.2 Find the point where this trajectory curve intersects the height of discharge (zero height line).
2.3 Estimate the Reach Factor at this point using the scale across the top of the graph.
2.4 Multiply this Reach Factor by the reach at 30° elevation from the appropriate trajectory curve in LIM-030 or LIM-035.
3.0 To estimate maximum height for a given elevation angle above 0°:
3.1 From the graph of nozzle trajectory elevation factors, choose the trajectory curve for the desired elevation angle.
3.2 Find the maximum height on this trajectory curve.
3.3 Estimate the Height Factor at the maximum height using the scale on the left side of the graph.
3.4 Multiply this Height Factor by the height at 30° elevation from the appropriate trajectory curve in LIM-030 or LIM-035.
TASK FORCE TIPS, INC.
MADE IN USA • www.tft.com
©Copyright Task Force Tips, Inc. 2009
LIY-500 April 8, 2019 Rev14
LTT-135 Nozzle Trajectory
Elevation Factors
2
DANGER
PERSONAL RESPONSIBILITY CODE
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynn eld, MA 01940 • www.FEMSA.org
NOZZLE TRAJECTORY
ELEVATION FACTORS
Reach Factor (compared to 30° elevation)
0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1
75°
IF TARGET IS IN THIS REGION,
FLOW AND/OR PRESSURE MUST
60°
BE INCREASED.
45°
30°
height of
discharge
15°
-45°
- -30°
- -15° - 0°
or
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 • 219-462-6161 • Fax 219-464-7155
LTT-135 July 28, 2009 Rev00
