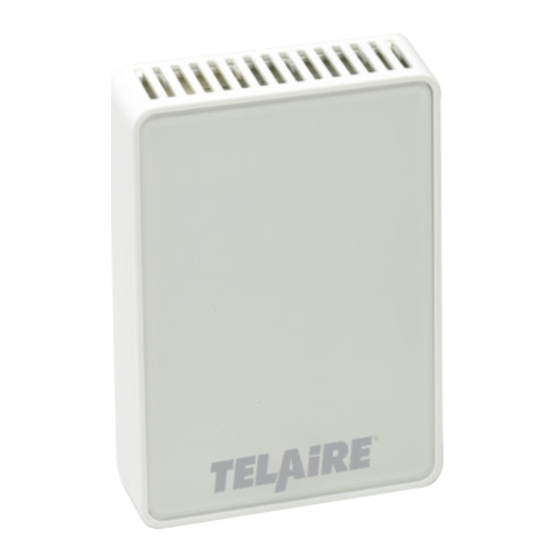

Amphenol Telaire Ventostat T8100 NS Series User Instructions

Amphenol Telaire Ventostat T8100 NS Series User Instructions

Co2 sensor

Advertisement

Quick Links

Installing the Sensor
Before performing service or maintenance operations on
the systems, turn OFF main power switches to the unit.
Electric shock can cause personal injury. Please read and
follow the wiring instructions precisely; miswiring may
cause permanent damage to the product
Basic Installation for T8100-NS and NSP
1. Separate the case into its front and rear sections.
2. Secure the rear section of the case to the wall or junction box using
the supplied screws, and make necessary wire connections.
3. Mount the Controller on the base by aligning the top clips and then
securing to the bottom clips. Secure the Ventostat with the supplied
set screw. A one-minute stabilization warmup will take place.

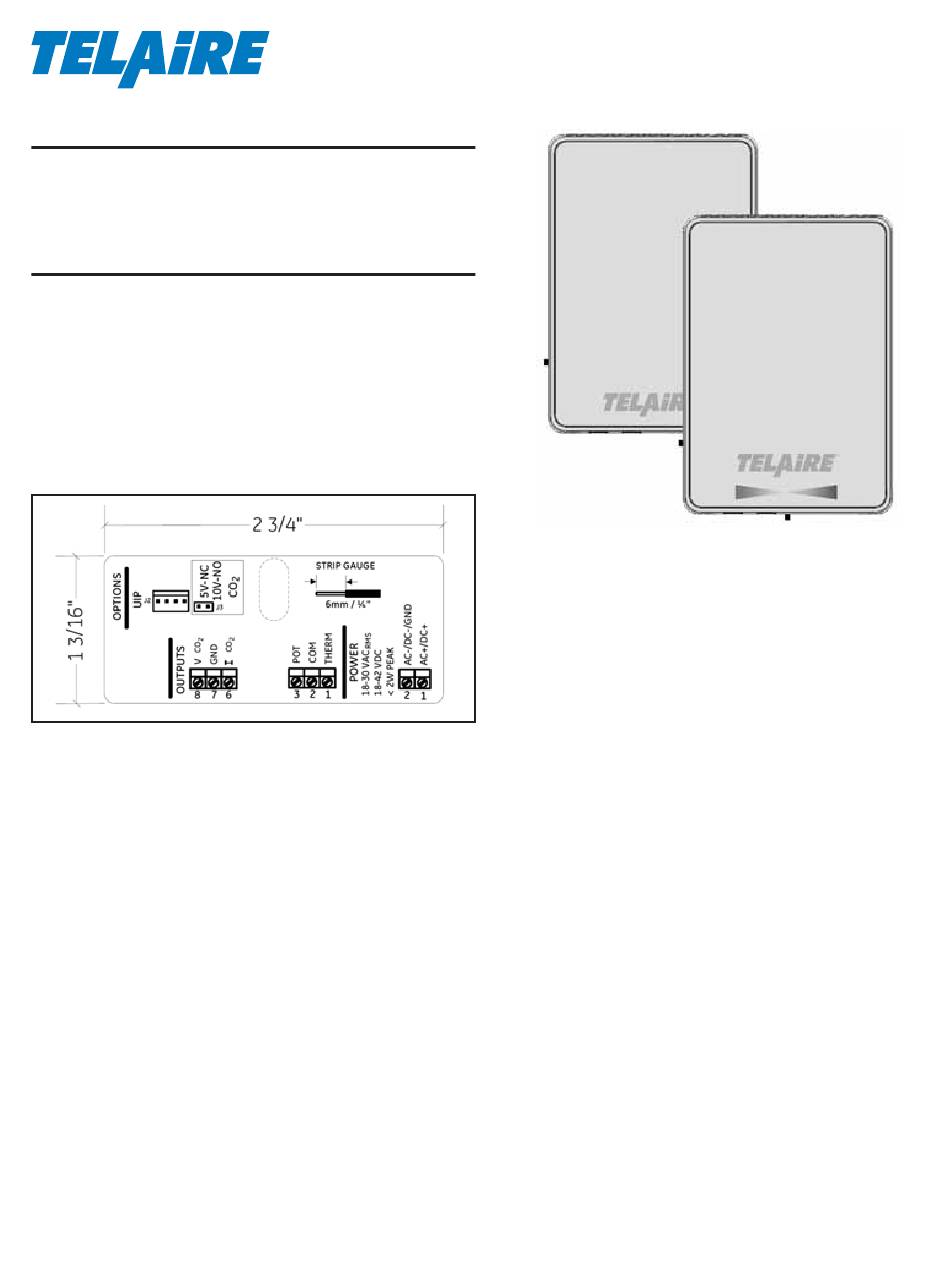

Internal Label
Amphenol
Advanced Sensors
®
!WARNING!
.
Telaire Ventostat™ T8100 NS and NSP Series
Amphenol Advanced Sensors
6860 Cortona Dr., Suite B
Goleta, CA 93117
www.amphenol-sensors.com
CO
Sensor
2
User Instructions
T63351-003
September 2014
Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the Telaire Ventostat T8100 NS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Amphenol Telaire Ventostat T8100 NS Series

  • Page 1 3. Mount the Controller on the base by aligning the top clips and then securing to the bottom clips. Secure the Ventostat with the supplied set screw. A one-minute stabilization warmup will take place. Amphenol Advanced Sensors 6860 Cortona Dr., Suite B Goleta, CA 93117 www.amphenol-sensors.com...
  • Page 2 T8100-NS/NSP Wiring Diagrams Thermistor 10 KΩ Type II The Ventostat T8100-NS and T8100-NSP family of products has two (“-“ common) and Night Setback Button 18 - 30 basic configurations. VAC RMS (“-“ common) T8100-NS provides simultaneous voltage and current outputs for CO Slide potentiometer an independent thermistor with Night Setback Override Button.
  • Page 3 Ventostat Specifications Storage Conditions -40°F to 158°F (-40°C to 70°C) Sensing Method Flammability Classification Non-dispersive infrared (NDIR) absorption Gold-plated optics UL94 5VA Patented ABC Logic self calibration algorithm Thermistor Type Measurement Range NTC 10 Kthermistor T8100 0 to 2000 ppm (0 ppm = 0 V, 4 mA; 2000 ppm = 10/5V, 20 mA) Thermistor Accuracy Accuracy ±1°C (15°...
  • Page 4 Warranty/Other Warranty Repairs Warranty Amphenol Thermometrics, Inc. will repair Telaire product that fails to 18 months parts and labor meet the terms provided for in the Return and Warranty Policy Statement (See, http://www.amphenol-sensors.com).Warranty period This product is covered by one or more of the following patents:...

This manual is also suitable for:

Telaire ventostat t8100 nsp series
