Digital Fluid-Trac
Measurement Technology

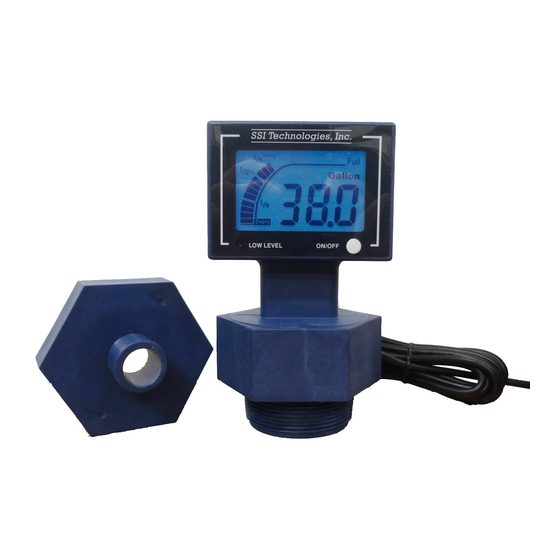

The Digital Fluid-Trac
®
high-frequency sound wave and measures the time for the echo to reflect off the target fluid's surface
and return.
The distance from the Digital Fluid-Trac
The Digital Fluid-Trac
®
30 gallon, or 15 gallon drums.
Note: The Digital Fluid-Trac
a vapor pressure under normal operating temperature (0 °C - 50 °C).
Troubleshooting
For correct operation, the Digital FluidTrac
the sensor and media being monitored.
1. If using the ¾" adapter, verify the yellow acoustic absorber disc
(see photo to the right) is properly installed inside the adapter.
A level sensor that is mounted or sitting other than level will create a
reduction in sensor performance. As shown in the illustration to the right,
the amount of returned sound energy is dependent on mounting
and/or sitting angle.
2. Verify the Digital Fluid-Trac
The drum must be stored in an upright position. Ensure that barrel lid
is not extremely warped, creating an unlevel condition.
3. Verify there are no obstructions between the sensor head and the
media being measured. If something is between the sensor and the
media being tested, the sound wave will be reflected off the object
and not the media resulting in incorrect level readings.
4. Verify the unit is set to measure 55 gallon drums.
• Place the Digital Fluid-Trac
• Press the Refresh/Select button.
• The display should read 55 gallons (± 4 gallons, depending on which
adaptor(s) being used).
Copyright © 2019, SSI Technologies, LLC
Troubleshooting Guide
®
model DFT drum level gauge uses ultrasonic technology to generate a
sensor to the liquid is calculated based on the speed of sound.
®
model DFT is factory programmed to work on ANSI MH2 standard 55 gallon,
is NOT intended for use with gasoline or other volatile liquids that produce
®
DFT must be mounted properly with no obstructions between
®
DFT mounting is parallel to the liquid.
®
flat on a table top.
®
Troubleshooting Guide
1
Doc. DT-AN4 — Rev. 01
Incorrect
Correct
Distance
ssi-sensors.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amphenol SSI Digital Fluid-Trac DFT-200 Series
Summary of Contents for Amphenol SSI Digital Fluid-Trac DFT-200 Series
- Page 1 Troubleshooting Guide Digital Fluid-Trac Troubleshooting Guide ® Measurement Technology The Digital Fluid-Trac model DFT drum level gauge uses ultrasonic technology to generate a ® high-frequency sound wave and measures the time for the echo to reflect off the target fluid’s surface and return.
- Page 2 5. If the display doesn’t show 55 gallons, you will have to place the unit into the 55-gallon drum mode. Refer to “Measurement Mode Selection” procedure below. Measurement Mode Selection a) Enter the Select Mode: Press and hold the Refresh/Select button down for 7 seconds. The display will show “Liter/Gallon”...
- Page 3 Simulate an Empty (0 gallons / 4 mA) Reading a) Place the Digital Fluid-Trac 32 inches above the table top. Make sure the sensor is level with ® the table top. b) Press the Refresh/Select button. c) The display should read approximately 0 gallons or 4 mA, depending on output type. 7.
- Page 4 1 (608) 757-2000 Made In USA SSI Technologies, LLC is an Amphenol Advanced Sensors company. Warranty LIMITED WARRANTY: All SSI products are warranted against defective materials and workmanship for a period of one (1) year from the date of delivery to the original purchaser. Any product that is found to be defective within the one year period will be replaced at the discretion of SSI.
