Leuze electronic ODSL 8 Series Quick Start Manual

Optical laser distance sensors
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

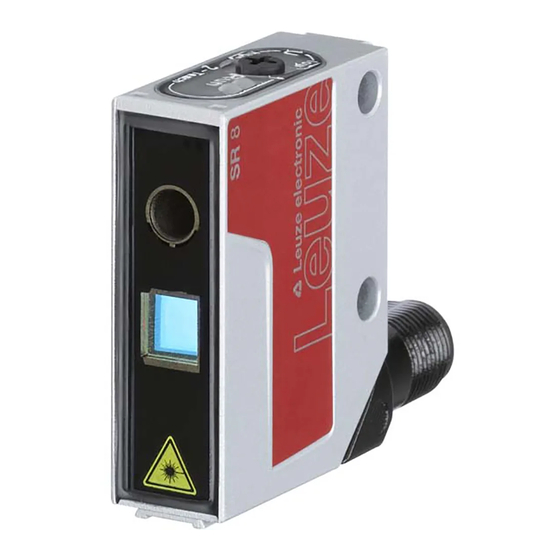

ODSL 8
25 ... 45mm
IP IP 69K
69K
IP IP 67
67
 Reflection-independent distance
information
 Analogue voltage output or current output
(can be inverted, teachable)
 2 teachable switching outputs (push-pull)
 M12 turning connector
 Easy alignment through visible red light
Accessories:
(available separately)
 Mounting systems
 Cables with M12 connector
(KD ...)
 Control guard
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com

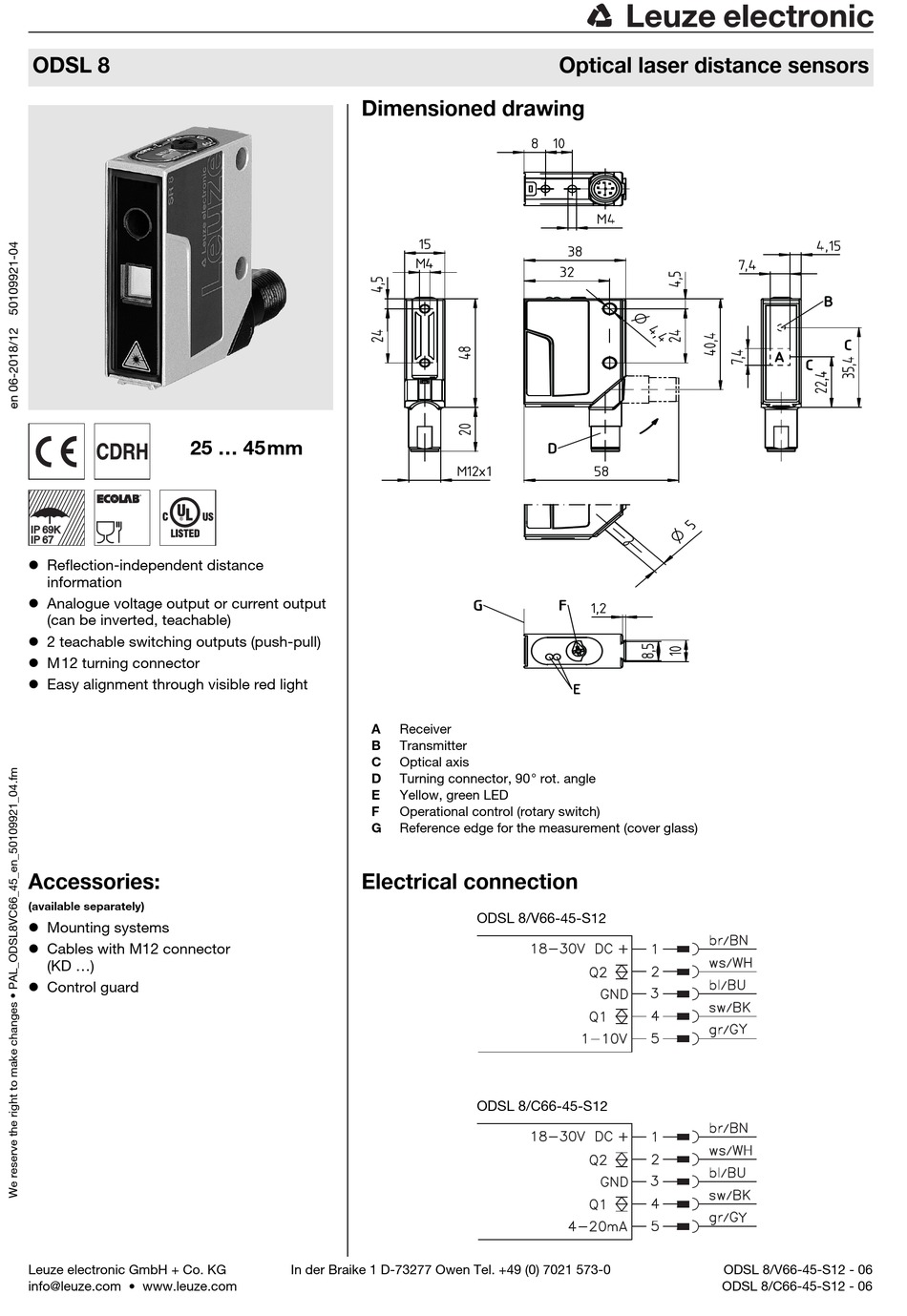

Dimensioned drawing
A
Receiver
B
Transmitter
C
Optical axis
D
Turning connector, 90° rot. angle
E
Yellow, green LED
F
Operational control (rotary switch)
G
Reference edge for the measurement (cover glass)
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Optical laser distance sensors
ODSL 8/V66-45-S12
ODSL 8/C66-45-S12
ODSL 8/V66-45-S12 - 06
ODSL 8/C66-45-S12 - 06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODSL 8 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Leuze electronic ODSL 8 Series

Summary of Contents for Leuze electronic ODSL 8 Series

  • Page 1  Cables with M12 connector (KD …)  Control guard ODSL 8/C66-45-S12 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 ODSL 8/V66-45-S12 - 06 info@leuze.com • www.leuze.com ODSL 8/C66-45-S12 - 06...

  • Page 2: Specifications

    ODSL 8 Specifications Diagrams Characteristic curve of switching Optical data outputs: Measurement range 25 … 45mm Resolution 0.03mm Light source laser Laser class 2 acc. to IEC 60825-1:2007 Wavelength 650nm (visible red light) Max. output power <1.2 mW Pulse duration Light spot Ø...

  • Page 3: Laser Safety Notices

     The device must not be tampered with and must not be changed in any way. There are no user-serviceable parts inside the device. Repairs must only be performed by Leuze electronic GmbH + Co. KG. NOTICE Affix laser information and warning signs! ...

  • Page 4: Mounting Instructions

    Mounting instructions Mounting systems are available which have to be ordered separately at Leuze electronic. Apart from this, the drilled-through holes and threaded holes are suitable for the individual mounting of the ODSL 8, depending on the area in which it is used. When mounting, avoid application of excessive force on the housing.

  • Page 5: Error Messages

    Remedy:  Repeat teach event or  Disconnect sensor from voltage to restore the old values. Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 ODSL 8/V66-45-S12 - 06 info@leuze.com • www.leuze.com...
  • Page 6 ODSL 8 ODSL 8/V66-45-S12 - 06 2018/12 ODSL 8/C66-45-S12 - 06...

This manual is also suitable for:

Odsl 8/v66-45-s12-06Odsl 8/c66-45-s12-065010836350108364

Table of Contents
