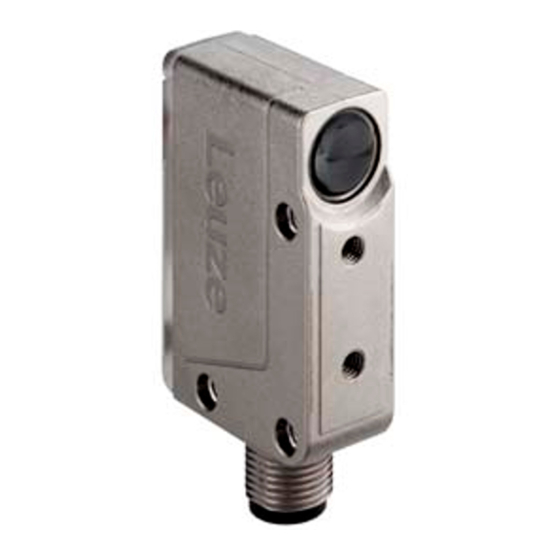

Leuze electronic KRT18BM Manual

KRT18BM
12 - 30 V
DC
15 kHz
 Easy to adjust through display of the signal
strength on the device
 Simple sensitivity adjustment with multiturn
potentiometer
 RGB transmitter with selectable detection
color
 Removable rotary operating knob enables
comfortable, tool-free adjustment
 Maximum packing quality through short
response time
 Remote control via control cable
 Blocking of all operational controls via con-
trol cable
 Analog output for signal evaluations in the
control
U L
C US
LISTED
IEC 60947...
IEC 60947...
Accessories:
(available separately)
 Mounting systems
(BTU 200M..., BT 95)
 Mounting adapter for standard design (80
mm x 53 mm x 30 mm) BTX 018M
 Cable with M12 connector
(K-D M12...)
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com

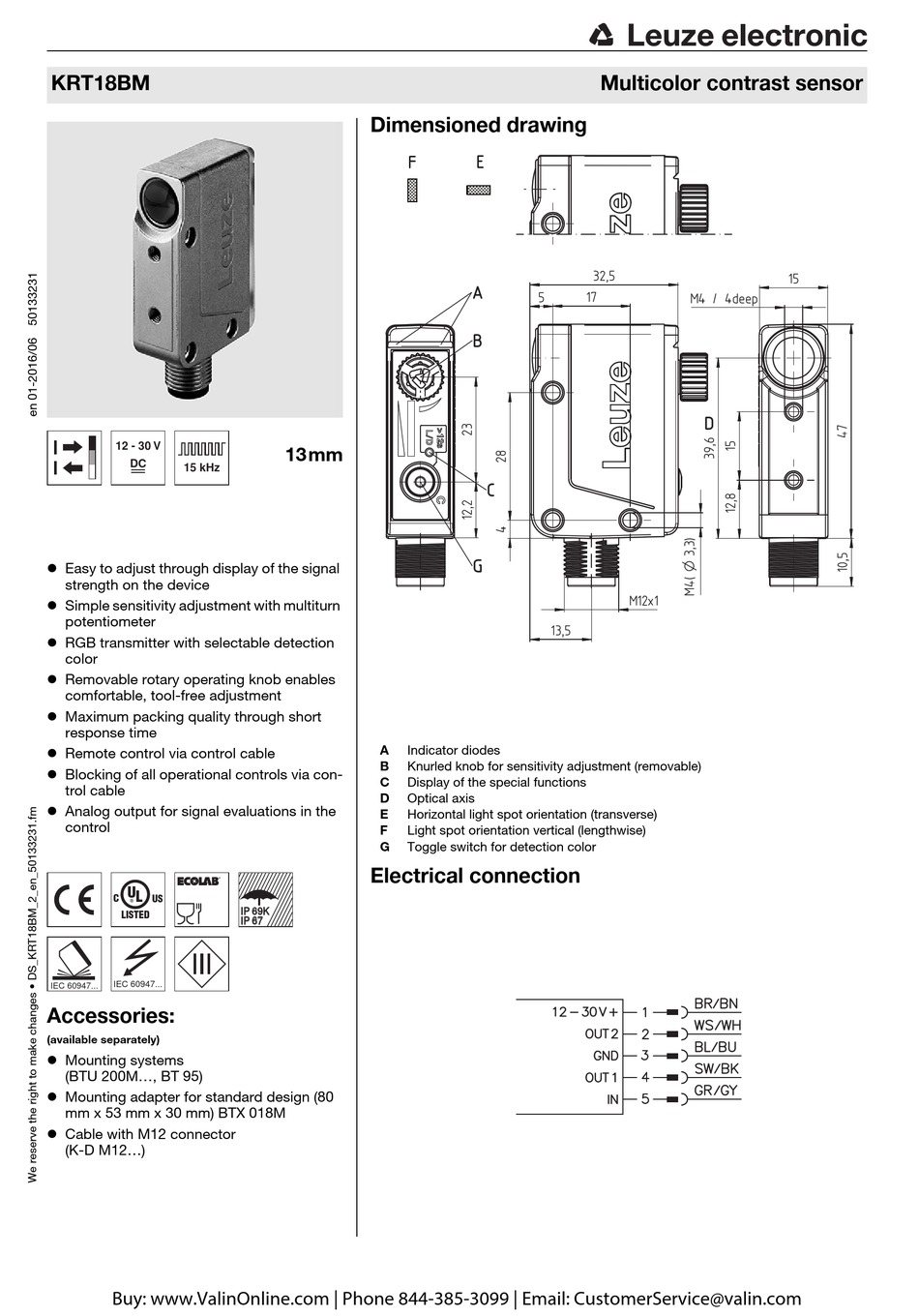

Dimensioned drawing
13mm
A Indicator diodes
B Knurled knob for sensitivity adjustment (removable)
C Display of the special functions
D Optical axis
E Horizontal light spot orientation (transverse)
F Light spot orientation vertical (lengthwise)
G Toggle switch for detection color
Electrical connection
IP IP 69K 69K
IP IP 67 67
Multicolor contrast sensor
BR BR BN BN
/
12 12 - 30 30 V +
WS WS WH WH
/
OUT OUT 2
BL BL BU BU
/
GND GND
SW SW BK BK
/
OUT OUT 1
GR GR GY GY
/
IN IN
