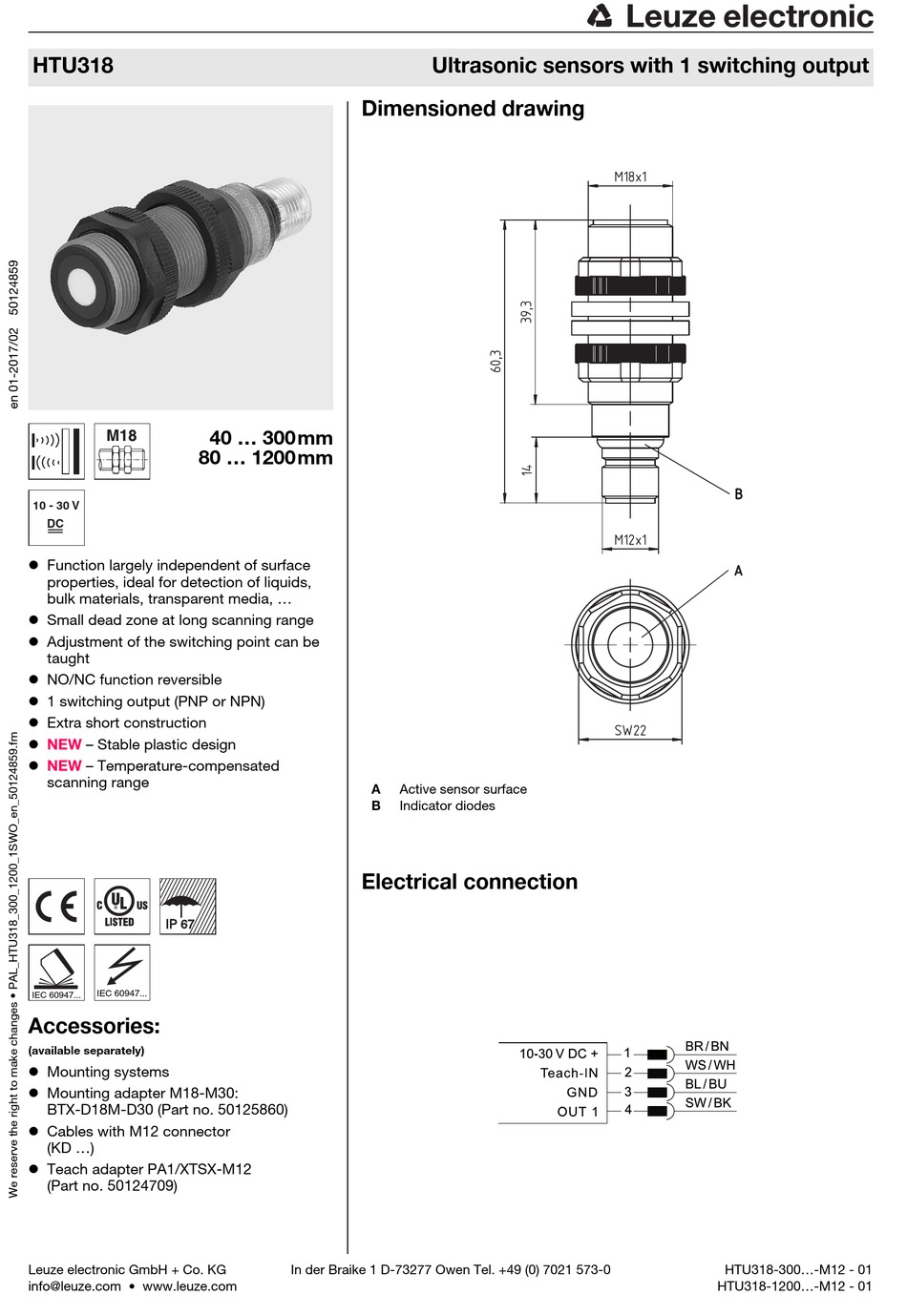

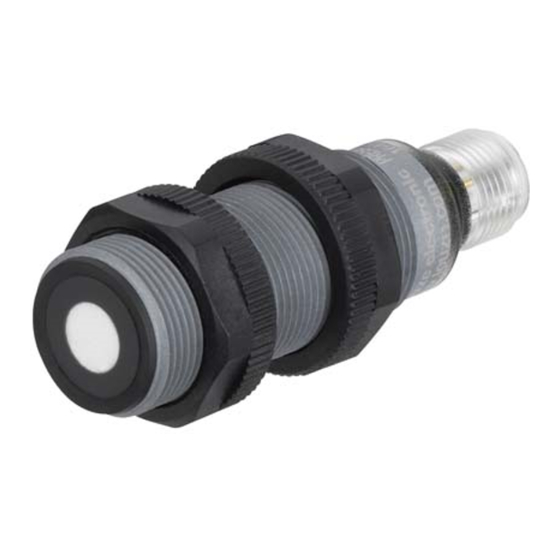

Leuze electronic HTU318-300 M12 Series Quick Start Manual

Ultrasonic sensor with 1 switching potput
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HTU318
80 ... 1200mm
10 - 30 V
DC
 Function largely independent of surface
properties, ideal for detection of liquids,
bulk materials, transparent media, ...
 Small dead zone at long scanning range
 Adjustment of the switching point can be
taught
 NO/NC function reversible
 1 switching output (PNP or NPN)
 Extra short construction
NEW
– Stable plastic design
NEW
– Temperature-compensated
scanning range
IP 67
IEC 60947...
IEC 60947...

Accessories:

(available separately)
 Mounting systems
 Mounting adapter M18-M30:
BTX-D18M-D30 (Part no. 50125860)
 Cables with M12 connector
(KD ...)
 Teach adapter PA1/XTSX-M12
(Part no. 50124709)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com

Dimensioned drawing

40 ... 300mm
A
B
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Ultrasonic sensors with 1 switching output
Active sensor surface
Indicator diodes
HTU318-300...-M12 - 01
HTU318-1200...-M12 - 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTU318-300 M12 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Leuze electronic HTU318-300 M12 Series

Summary of Contents for Leuze electronic HTU318-300 M12 Series

  • Page 1  Cables with M12 connector (KD …)  Teach adapter PA1/XTSX-M12 (Part no. 50124709) Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU318-300…-M12 - 01 info@leuze.com • www.leuze.com HTU318-1200…-M12 - 01...
  • Page 2 HTU318 Technical data Diagrams HTU318-300/…-M12 Ultrasonic specifications HTU318-300/…-M12 HTU318-1200/…-M12 Typ. response behavior (plate 100x100mm) Scanning range 40 … 300mm 80 … 1200mm Adjustment range 40 … 300mm 80 … 1200mm Ultrasonic frequency 300kHz 200kHz Typ. opening angle 7° ± 2° 8°...
  • Page 3 80 … 1200mm / PNP HTU318-1200/4T-M12 50136074 80 … 1200mm / NPN HTU318-1200/2T-M12 50136075 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU318-300…-M12 - 01 info@leuze.com • www.leuze.com HTU318-1200…-M12 - 01...
  • Page 4 HTU318 Device functions and indicators All settings on the sensor are taught-in via the Teach-IN input. Device status and switching states are indicated as follows by means of a LED: Switching behavior 1-point teach (1 switching point) Switching behavior NO contact Switching behavior NC contact Switching point Switching point...
  • Page 5 Faulty teach (object may be too close or too far away – please note scan- ning range): green and yellow LEDs flash at 8Hz until an error-free teach event is performed. Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU318-300…-M12 - 01 info@leuze.com • www.leuze.com...
  • Page 6 HTU318 Adjusting the switching function (NC/NO) via the teach input The switching function of the sensor is preset as follows on delivery:  OUT 1: NO contact The output function can be switched from NO contact (NO - normally open) to NC contact (NC - normally closed) and vice versa. Leuze Teach Adapter PA1/XTSX-M12 can be used for this purpose.

This manual is also suitable for:

Htu318-1200 m12 seriesHtu318-300/4t-m12Htu318-300/2t-m12Htu318-1200/4t-m12Htu318-1200/2t-m1250136070 ... Show all
