Page 1

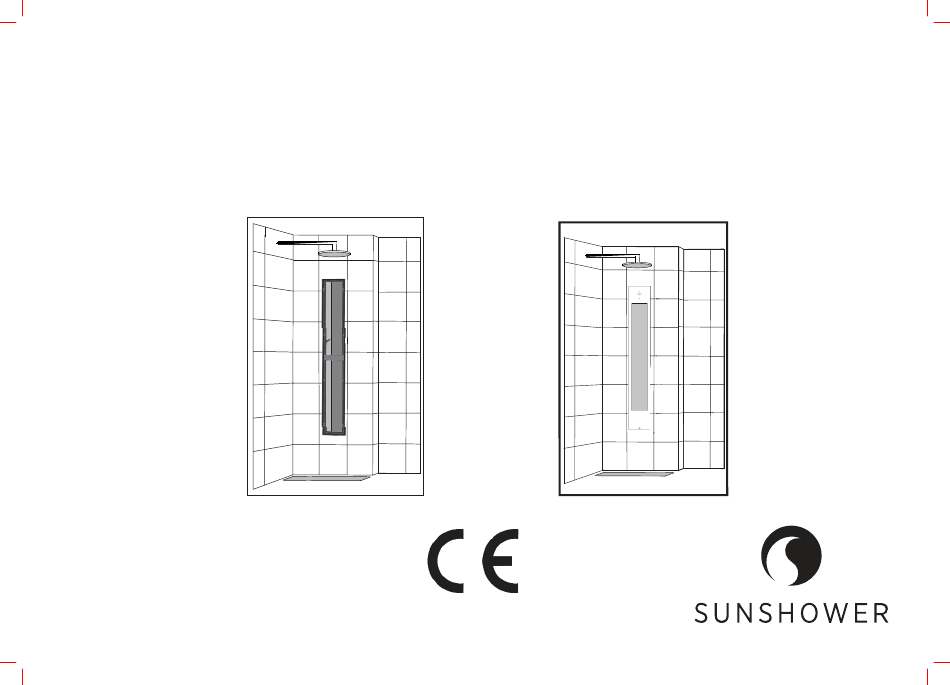

SUNSHOWER PURE XL Installation manual Part 2 / Installatie handleiding deel 2 / Installationshandbuch Teil 2 / Manual d’installation Partie 2 Art.no: 80074 P1600 Rev. A 8-2016...
Page 2
Requirements / Benodigdheden / Materialbedarf / Matérial nécessaire In the box / In de doos / In der Verpackung / Dans la boîte Requirements / Benodigdheden / Erforderliches / Équipment Manual NOT Supplied / NIET Meegeleverd / NICHT im Lieferumfang enthalten/ NON fourni 110mm 2x 4x max 3m...
Page 3
Removing crossbeam wall frame / Verwijderen dwarsbalk wandframe / Entfernen Querbalken Wandrahmen / Démontage de la traverse du cadre mural Example / Voorbeeld / Beispiel / Exemples Requirements / Benodigdheden / Erforderliches / Équipment Instructions / Instructies / Anleitung / Instructions : All of the instructions of installation manual part 1 must be completed before starting this step: Remove the crossbar from the wall frame.
Page 4
Electrical connection / Electrische aansluiting / Stromanschluss / Branchement électrique Example / Voorbeeld / Beispiel / Exemples • Make sure the flatcable is at the front side! • Zorg ervoor dat de flatcable aan de voor- zijde zit! • Stellen Sie sicher, dass das Flachbandkabel an der Vorderseite ist! •...
Page 5
Mounting housing / Monteren behuizing / Gehäuse montieren / Montage du caisson Example / Voorbeeld / Beispiel / Example / Voorbeeld / Beispiel / Exemples Exemples Requirements / Benodigdheden / Requirements / Benodigdheden / Erforderliches / Équipment / Erforderliches / Équipment / Instructions / Instructies / Anleitung / Instructions : Mount the reflector with the 6 supplied screws.
Page 6
Mounting glass / Monteren glas / Glasmontage / Montage du verre Example / Voorbeeld / Beispiel / Exemples Instructions / Instructies / Anleitung / Instructions : Connect the connector to the backside of the glasspane and place the glass pane in the reflector (see detail A). : Sluit de connector aan op de printplaat en plaats de glasplaat in de reflector (zie detail A).
Page 7
: Switch on the circuit breaker or RCD in the fuse box. The power button on the Sunshower Pure should blink white several times. (do not touch the power button, the Sunshower Pure is calibrating). If the power button not blinks, check if the connector, in step 5, is mounted in the right way.
