2.0 installation planning

installation planning
EN
WARNING
!
• Do NOT cover or place any items in the Dynamic Heat Control™ air outlet. Failure to comply with these instructions will
create a fi re hazard.
• Ensure air fl ow within the air passage is not restricted in any way with the exception of approved venting.
No materials of any type
are permitted in this area
except wiring. Wiring must
come in on one side or
the other, and must not
cross the appliance and
be at least 7" from the
centre of the venting.
Header
Standoff
Front
Frame
Defl ector

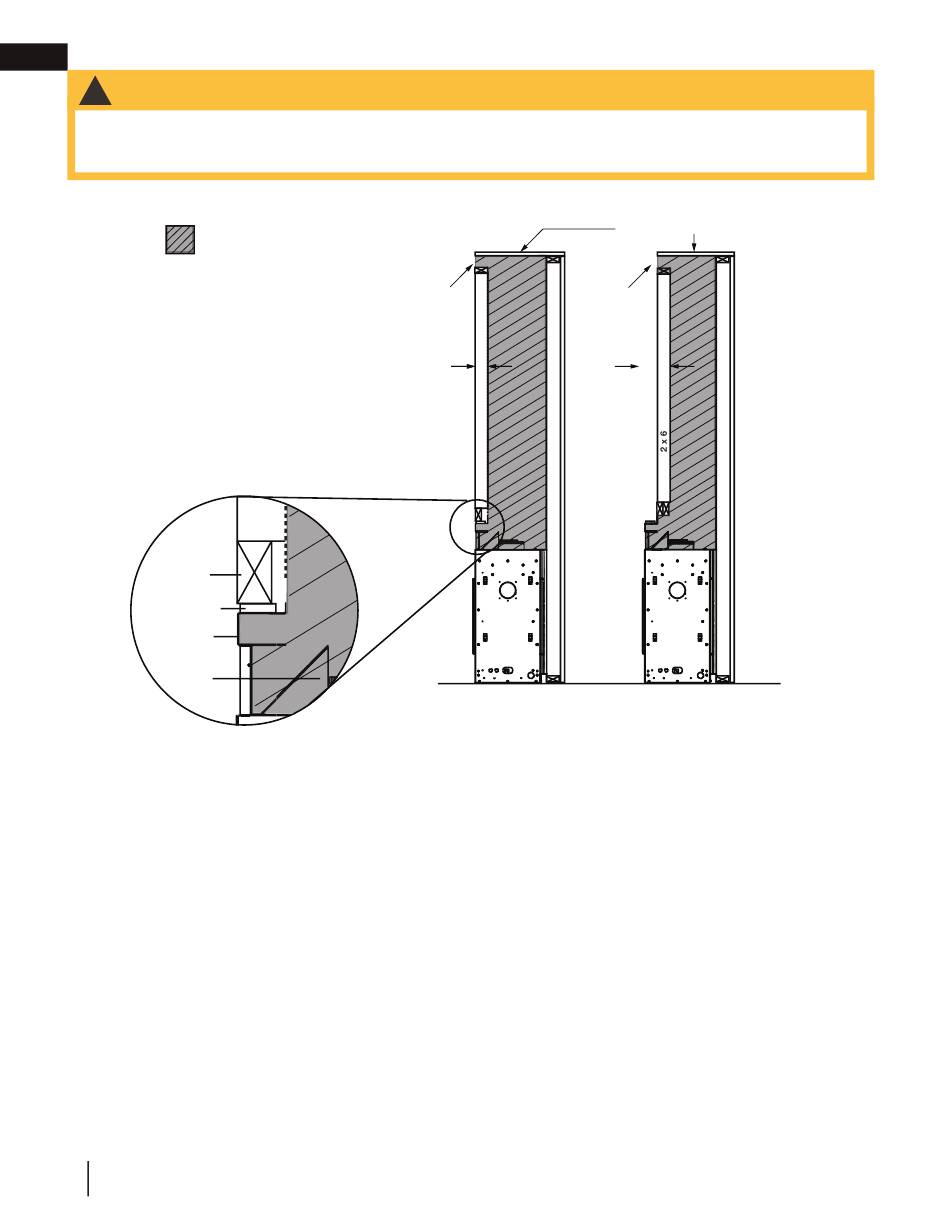

Air fl ow in the shaded area must not be restricted in any way with the exception of an approved appliance vent
system. No other items are allowed in this area.
Clearance to Fire Sprinkler
If there is a fi re sprinkler system installed in close proximity to the air outlet opening of your appliance, the following
installation parameters must be adhered by:
• Follow the sprinkler head manufacturer's instructions regarding proximity to heat sources.
• In the absence of specifi c requirements, a minimum 60" (152cm) recommended clearance, in length, between
any point of the air outlet opening and fi re sprinkler head.
• Verify the sprinkler head sensor is set to proper heat settings to prevent activation during appliance operation
(see fi re sprinkler manufacturer's instructions).
• If in doubt it is recommended to measure the temperature adjacent to the sprinkler head during installation,
after the appliance has been operating continuously for at least 2 hours.
• Follow local building codes to ensure compliance.
4
W415-2753 / A / 07.20.20
Dynamic
Heat Con-
trol™ air
outlet opening
3 1/2"
Typical Installation
enclosure top and/or ceiling
Dynamic
Heat Con-
trol™ air
outlet opening
6"
MAX
Recessed Installation
