DLKTLV50L Driftwood Luminous™ Log Placement
WARNING
!
Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
The logs are fragile and should be handled with care.
PHAZER™ logs and glowing embers, exclusive to Napoleon, provide a unique and realistic glowing effect that is different
in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. Log colours may
"PHAZER™ logs [and glowing embers], exclusive to Napoleon/Continental, provide a unique and realistic
vary. During the initial use of the appliance, the colours will become more uniform as colour pigments burn in during the
glowing effect that is different in every installation. Take the time to carefully position the glowing embers for a
heat-activated curing process.
maximum glowing effect. Log colours may vary. During the initial use of the appliance, the colours will become
more uniform as colour pigments burn in during the heat-activated curing process."
Insert only if
applicable ---->
Log Number
1
Venturi #1
2
Venturi #1
3
4
5
6
7
8
9
10
1.

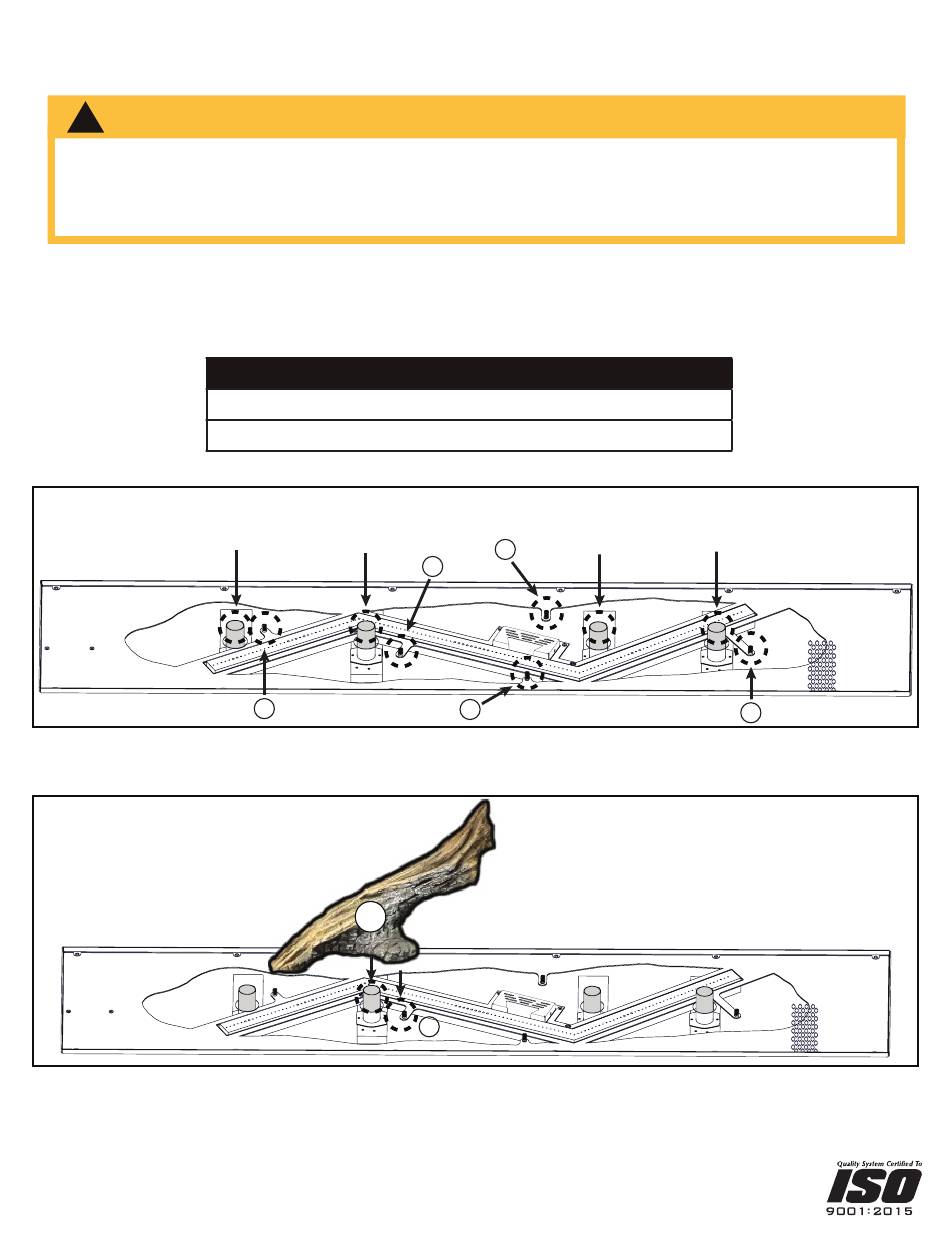

Place Luminous™ Log #2 on Venturi #2. Ensure the locating hole is over locating stud B.
IF APPLICABLE, INSERT DRAWING OF BURNER/SUPPORT WITH APPROPRIATE LA-
IF NOT APPLICABLE, HIDE THIS SECTION AND USE BOXES BELOW.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada · 1(866)820-8686 · www.napoleon.com
For Model TLV50L
If applicable, insert the following statement:
note:
note:
Care must be taken when installing Luminous™ logs over the Venturi.
Log numbers are located on the bottom or back of the logs.
Luminous™ logs must fit over the Venturis and sit flat on the media tray.
Part Number
Venturi #2
Venturi #2
A
A
Burner Overview
2
2
BELS (I.E. STUDS, PILOT SHIELD, BURNER PORTS, ETC.).
1
Venturi #3
D
Venturi #3
B
D
B
C
C
B
B
Description
Venturi #4
Venturi #4
E
E
W415-4175 / A-0 / 05.24.24
