high limit switch installation
WARNING
!
•
High Limit Switch installation is MANDATORY. Failure to correctly install will cause a fi re hazard.
Bracket Install
Location
1.) Remove jumper plug from control board (marked "X4")
and install plug with spade connectors to the control
board. Discard the original jumper plug.

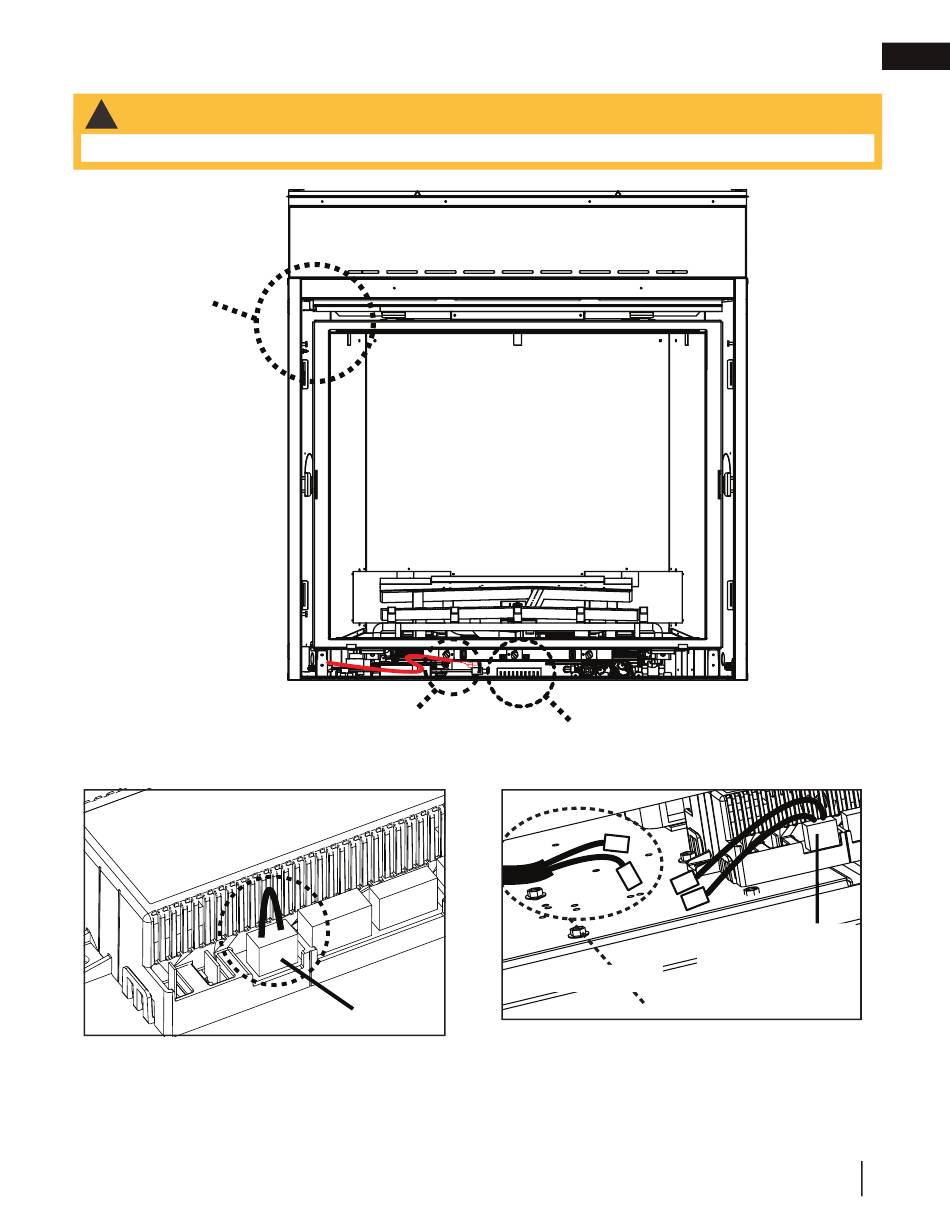

Dynamic Heat Control™ installation
Wire Harness
"X4"
Control Board
Plug with spade
connectors
Wire Harness
EN
13
W415-2753 / A / 07.20.20
